Toyota 86 GRMN — FLOOR PAN & LOWER BACK PANEL

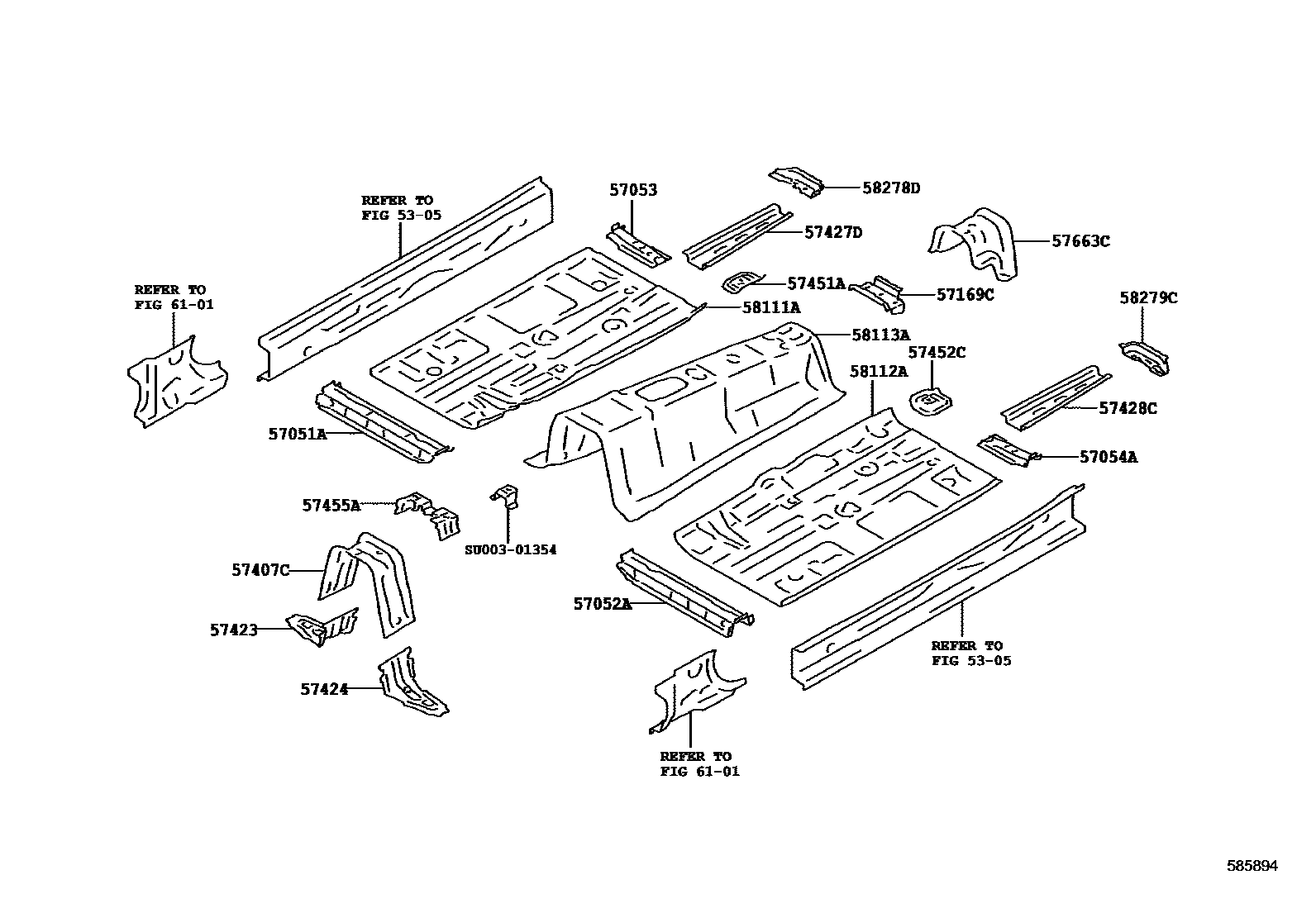

Parts diagram

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

mainSU00301328i201602

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

mainSU00301329i201602

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

mainSU00301332i201602

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

mainSU00301333i201602

57169CPATCH, FRONT FLOOR, REAR

mainSU00301350i201602

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

mainSU00306123i201602

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

mainSU00301338i201602

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

mainSU00301339i201602

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

mainSU00301341i201602

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

mainSU00301341i201602

57451AMEMBER, FRONT FLOOR CROSS, RH

mainSU00301330i201602

57452CMEMBER, FRONT FLOOR CROSS, LH

mainSU00301331i201602

57455ABRACKET, FRONT FLOOR CROSSMEMBER

mainSU00301351i201602

57663CMEMBER, REAR FLOOR CROSS, CENTER

mainSU00301327i201602

58111APAN, FRONT FLOOR, RH

mainSU00301317i201602

58112APANEL, FRONT FLOOR, LH

mainSU00301318i201602

58113APANEL, FRONT FLOOR, CENTER

mainSU00301316i201602

58278DPROTECTOR, FUEL TANK, UPPER

mainSU00301324i201602

58279CPROTECTOR, FUEL TANK, UPPER NO.2

mainSU00301325i201602

6101SIDE MEMBER

→ Go to FIG 61-01

SU00301354

mainSU003-01354

22 parts on this diagram · 5 diagrams in section

FLOOR PAN & LOWER BACK PANEL for Toyota 86 GRMN
