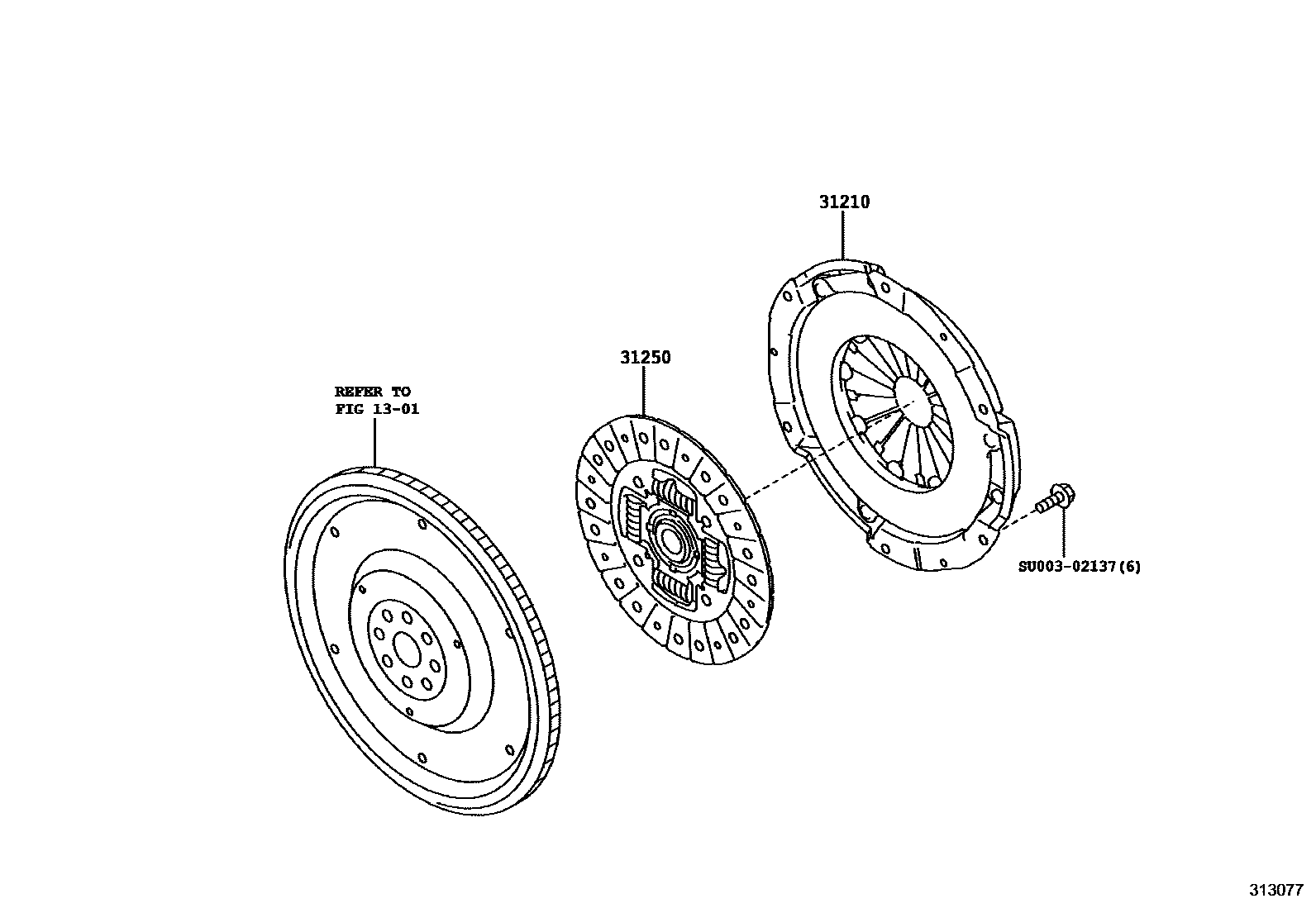

Toyota 86 GRMN — CLUTCH & RELEASE FORK

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

31210COVER ASSY, CLUTCH

mainSU00300800i201602

31250DISC ASSY, CLUTCH

mainSU00300799i201602

SU00302137

mainSU003-02137

4 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota 86 GRMN

This section contains 12 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota 86 GRMN. Key components include: CRANKSHAFT & PISTON, CLUTCH RELEASE CYLINDER, BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH.
