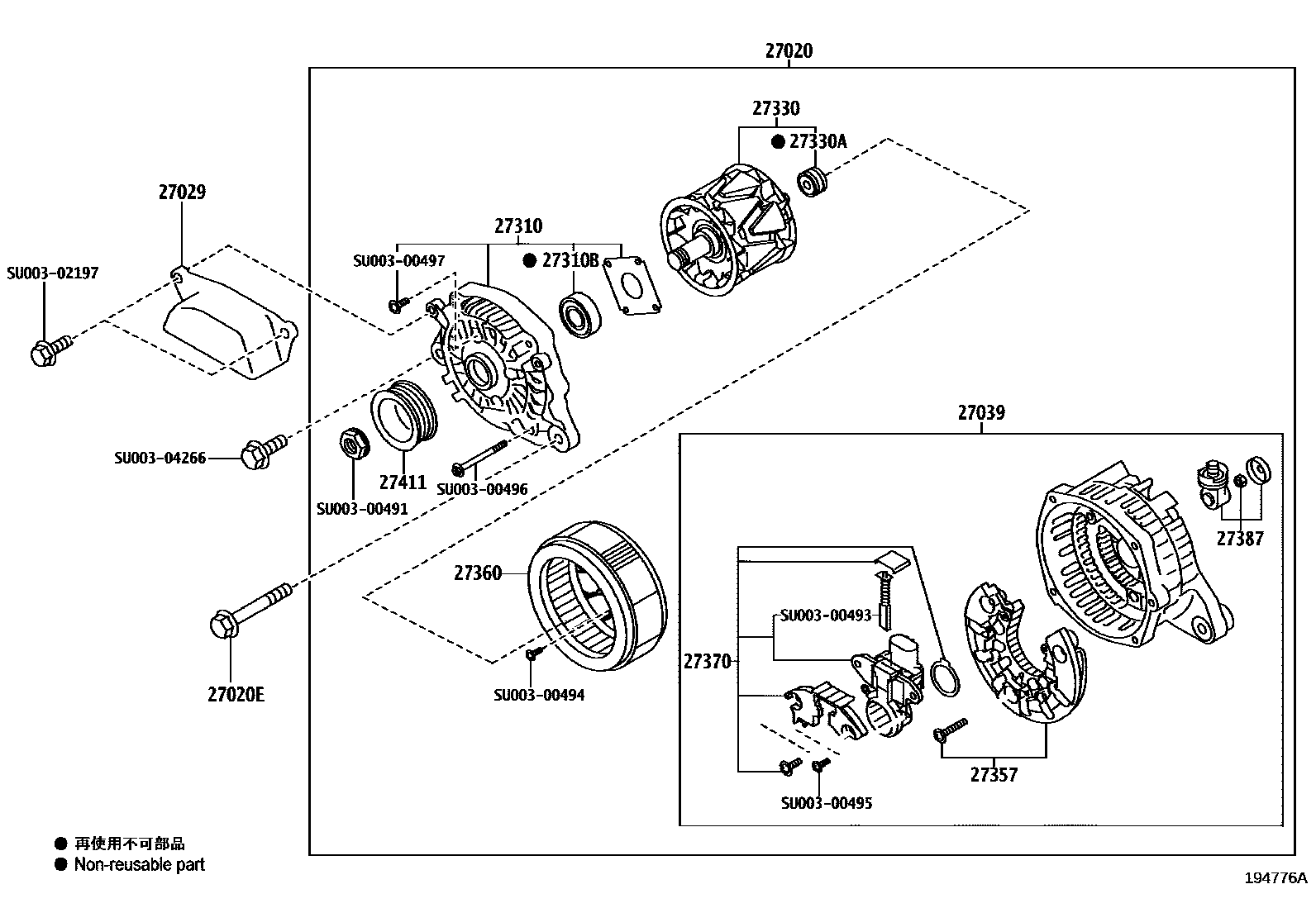

Toyota 86 GRMN — ALTERNATOR
27020ALTERNATOR ASSY
27020EBOLT(FOR ALTERNATOR)
27029COVER, ALTERNATOR
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27387INSULATOR, TERMINAL
27411PULLEY, ALTERNATOR
SU00300491
mainSU003-00491
SU00300493
mainSU003-00493
SU00300494
mainSU003-00494
SU00300495
mainSU003-00495
SU00300496
mainSU003-00496
SU00300497
mainSU003-00497
SU00302197
mainSU003-02197
SU00304266
mainSU003-04266
21 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota 86 GRMN
This section contains 21 genuine Toyota parts for the ALTERNATOR system of the Toyota 86 GRMN. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR.
