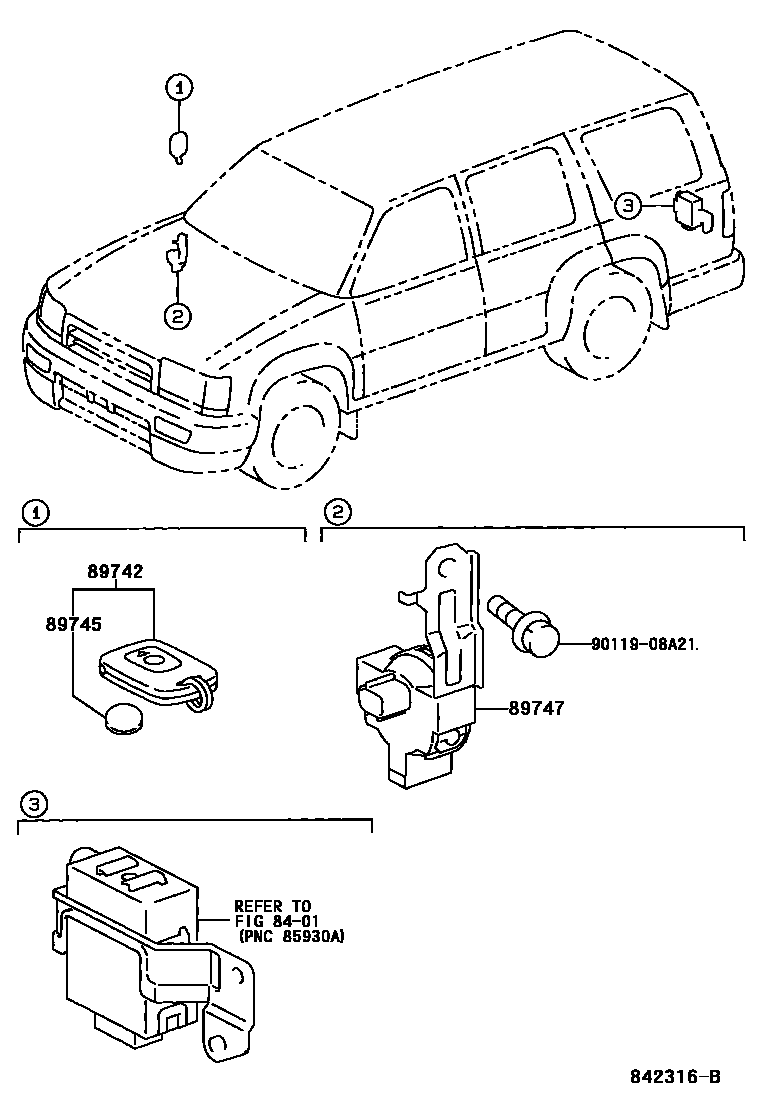

Toyota 4RUNNER — WIRELESS DOOR LOCK

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89742TRANSMITTER, DOOR CONTROL

main89742-35020×2i199807-200104

main89742-35021×2i200104

89745BATTERY, TRANSMITTER

main89745-50010×2i199807

89747BUZZER, WIRELESS DOOR LOCK

main89747-35010i199807

9011908A21

main90119-08A21

5 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota 4RUNNER

This section contains 5 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota 4RUNNER. Key components include: SWITCH & RELAY & COMPUTER, TRANSMITTER, DOOR CONTROL, BATTERY, TRANSMITTER, BUZZER, WIRELESS DOOR LOCK.
