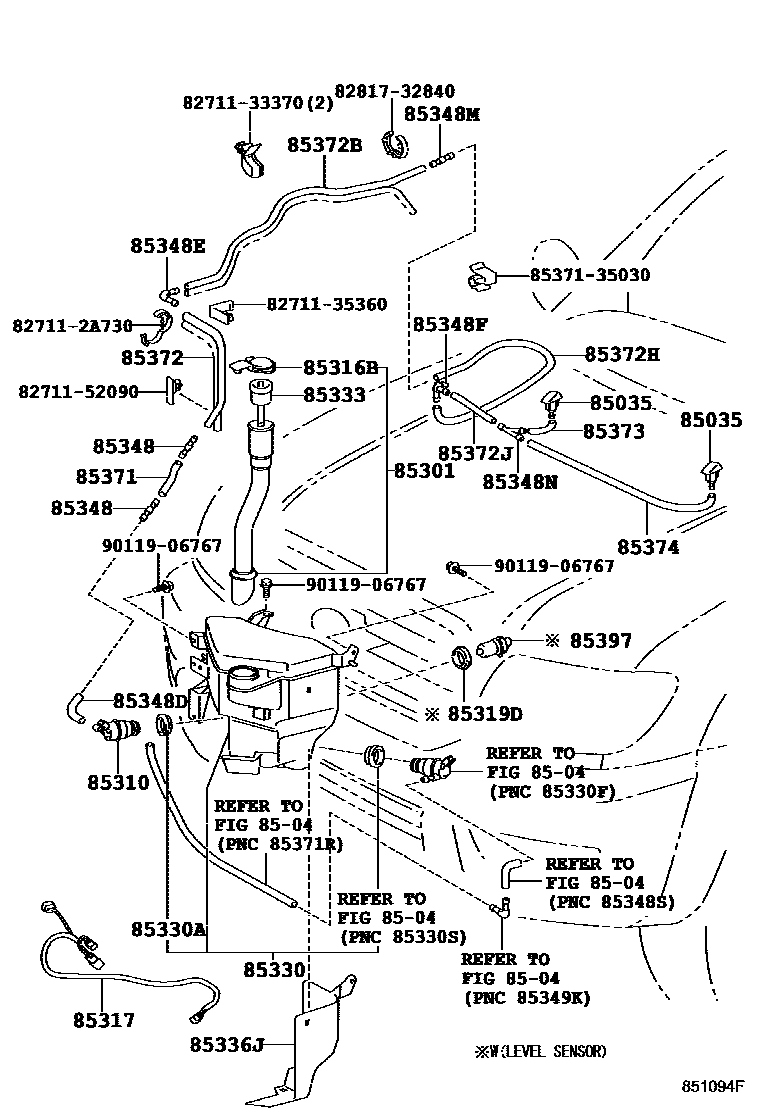

Toyota 4RUNNER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
sub85381-52151
8504
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
CANADA SPEC
85316BCAP, WASHER, INLET
85317WIRING ASSY, WASHER
85319DPACKING, FRONT WASHER
CANADA SPEC
85330JAR ASSY, WINDSHIELD WASHER
CANADA SPEC
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
sub85376-10250
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=60)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=210)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=1040)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=570)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=340)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=100)
85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
L=1450(*H,L=710)
85397SWITCH ASSY,LEVEL WARNING
CANADA SPEC
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A730
8271133370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33370
8271135360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35360
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8281732840PROTECTOR, WIRING HARNESS, NO.1
main82817-32840
8537135030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-35030
9011906767
main90119-06767
32 parts on this diagram · 1 diagram in section
