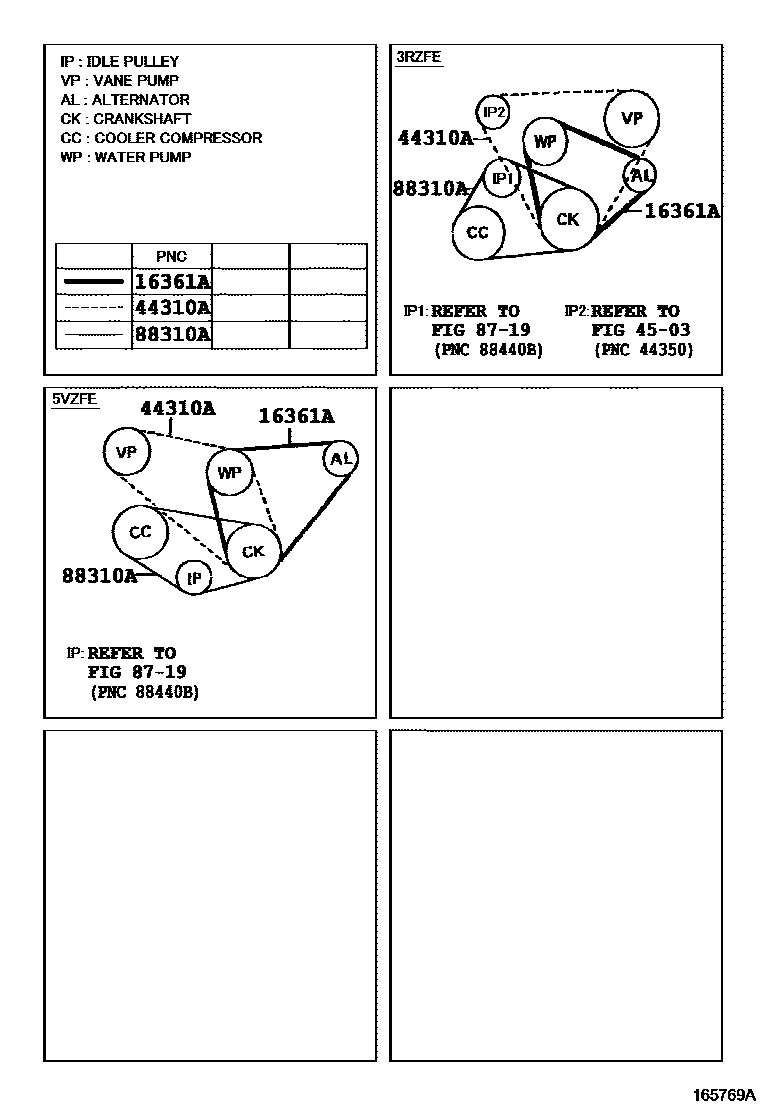

Toyota 4RUNNER — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91090i199511

L=1050

main90916-02336i199704-200008

L=865

main99365-80890i199511-199704

44310ABELT, V(FOR VANE PUMP)

main99364-21110i199511-200008

L=1110

main99364-81070i199511

L=1070

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-20870i199511

L=870

main99364-80910i199511-200008

L=910

5 parts on this diagram · 1 diagram in section

V-BELT for Toyota 4RUNNER

This section contains 5 genuine Toyota parts for the V-BELT system of the Toyota 4RUNNER. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), POWER STEERING TUBE, HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
