Toyota 4RUNNER — TIRE PRESSURE WARNING SYSTEM

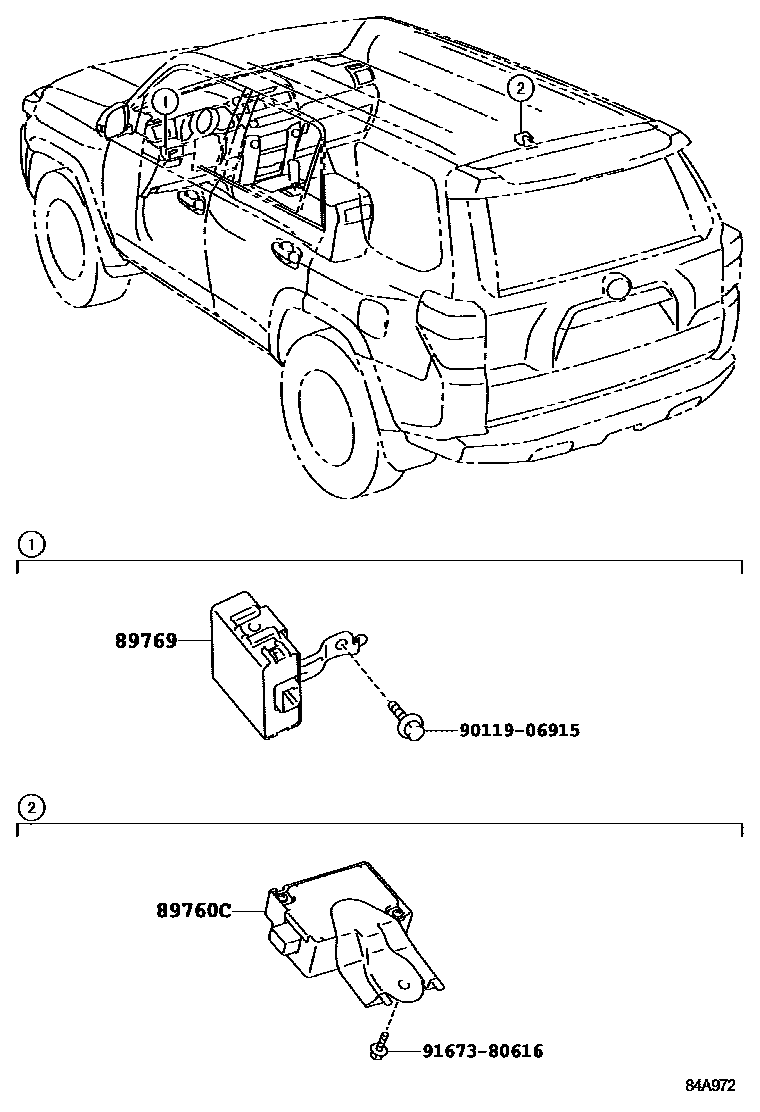

Parts diagram
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
main89760-35040i200908-201107
MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15
main89760-35040i200908-201107
MEXICO SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
main89760-35040i200908-201107
MEXICO SPEC
main89760-35040i200908-201108
main89760-35041i201108-201305
MEXICO SPEC
main89760-35041i201108-201305
MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15
main89760-35041i201108-201305
MEXICO SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
main89760-35042i201306-201308
MEXICO SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
main89760-35042i201306-201308
MEXICO SPEC
main89760-35042i201306-201308
MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15
main89760-35042i201308-201908
89769COMPUTER, TIRE PRESSURE MONITOR
main89769-35100i200908-201307
MEXICO SPEC&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
main89769-35100i200908-201307
MEXICO SPEC
main89769-35100i200908-201307
MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15
main89769-35101i201308-201908
main89769-35120i201008-201108
main89769-35130i200911-201108
9011906915
main90119-06915
9167380616
main91673-80616

4 parts on this diagram · 2 diagrams in section

TIRE PRESSURE WARNING SYSTEM for Toyota 4RUNNER

This section contains 6 genuine Toyota parts for the TIRE PRESSURE WARNING SYSTEM system of the Toyota 4RUNNER. Key components include: RECEIVER ASSY, TIRE PRESSURE MONITOR, COMPUTER, TIRE PRESSURE MONITOR, RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM, RECEIVER ASSY, ELECTRICAL KEY & TPMS.
