Toyota 4RUNNER — STEERING WHEEL

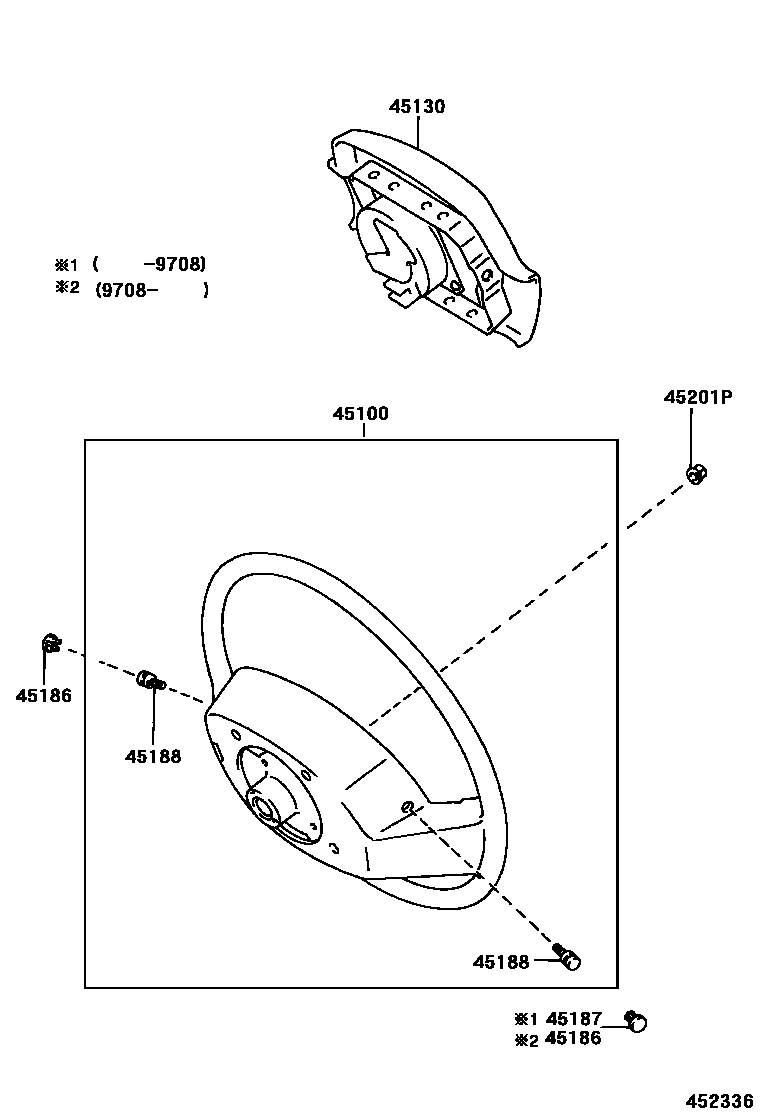

Parts diagram
45100WHEEL ASSY, STEERING
main45100-0W030-C0i199511-199708
2-SPOKE,LEATHER,LEATHER,W(AIR BAG & CRUISE CONTROL),BLACK,TRIM1#,4#; 2-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM4#
main45100-0W060-C0i199708-200008
4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#
main45100-0W060-E0i199708-200008
4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#
main45100-0W090-C0i200008
4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM1#,4#
main45100-0W090-E0i200008
4-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#
main45100-26210-C0i199511-199708
2-SPOKE,URETHANE,BLACK,TRIM1#,4#
main45100-35390-C0i199511-199708
2-SPOKE,URETHANE,URETHANE,W(AIR BAG & CRUISE CONTROL),BLACK,TRIM1#,4#; 2-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
main45100-35410-C0i199708-200008
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
main45100-35440-C0i200008
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
main45100-35450-C0i200008
4-SPOKE,LEATHER,BLACK,TRIM1#,4#
main45100-35450-E0i200008
4-SPOKE,LEATHER,OAK,TRIM4#
main45100-43020-C0i199807
4-SPOKE,URETHANE,BLACK,TRIM1#,4#
45130BUTTON ASSY, HORN
main45130-35310-C0i199511-199708
BLACK,TRIM1#,4#; BLACK,TRIM4#
main45130-35361-C0i199708-200008
BLACK,TRIM1#,4#
main45130-35361-E0i199708-200008
OAK,TRIM4#
main45130-35400-C0i200008
BLACK,TRIM1#,4#
main45130-35400-E0i200008
OAK,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-26010-C0i199511-199708
BLACK,TRIM1#,4#
main45186-33050-C0×2i199708
BLACK,TRIM1#,4#
main45186-33050-E0×2i199708
OAK,TRIM4#
main45186-35010-C0i199511-199708
W(CRUISE CONTROL),BLACK,TRIM1#,4#; W(CRUISE CONTROL),BLACK,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45186-26010-C0i199511-199708
BLACK,TRIM1#,4#; BLACK,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
main45188-06010×2i199511-199708
L=16.3,W(CRUISE CONTROL)
main90148-60011×2i199708-199807
L=15.5
45201PNUT, STEERING WHEEL SET
main90179-12071i199511

6 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota 4RUNNER

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota 4RUNNER. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SCREW, STEERING WHEEL PAD ATTACHING.
