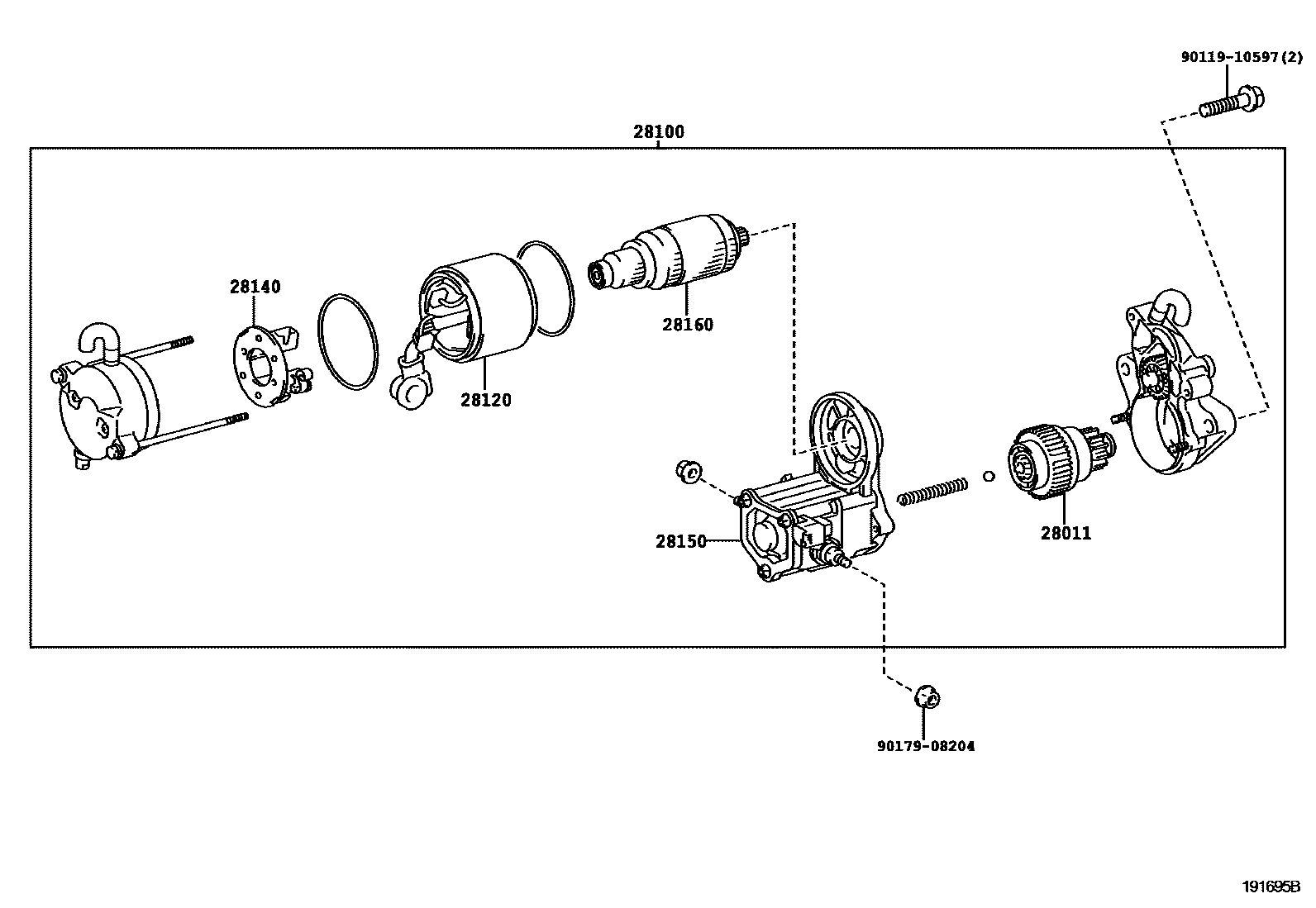

Toyota 4RUNNER — STARTER

0001 112V 1.4KW,2.0KW 0002 112V 1.6KW 0003 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-50060supersedes 28011-50080i2UZFE..UZN21#200508-200908

COLD SPEC

main28011-50100supersedes 28011-50080i2UZFE..UZN21#200410-200508

COLD AREA SPEC

main28011-66060i1GRFE..GRN21#..5FC200211-200508

COLD AREA SPEC

28100STARTER ASSY

main28100-31050supersedes 28100-31040i1GRFE..GRN21#200211-200408

12V 2.0KW,COLD AREA SPEC

main28100-50100supersedes 28100-50091i2UZFE..UZN21#200208-200403

12V 2.0KW,COLD AREA SPEC

main28100-50101supersedes 28100-50091i2UZFE..UZN21#200403-200508

12V 2.0KW,COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-50070supersedes 28120-50040i2UZFE..UZN21#200208-200508

COLD AREA SPEC

main28120-54380supersedes 28120-28060i1GRFE..GRN21#200508-200908

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-54380supersedes 28140-76070i2UZFE..UZN21#200208-200402

COLD AREA SPEC

main28140-62030i1GRFE..GRN21#..5FC200211-200508

COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-31051i1GRFE..GRN21#200508-200908

COLD SPEC

main28150-50100supersedes 28150-50090i2UZFE..UZN21#200508-200908

COLD SPEC

main28150-50110supersedes 28150-50090i2UZFE..UZN21#200410-200508

COLD AREA SPEC

28160ARMATURE ASSY, STARTER

main28160-21060i1GRFE..GRN21#200211-200508

main28160-74070i2UZFE..UZN21#200208-200508

main28160-75120i1GRFE,2UZFE..GRN21#,UZN21#200208-200508

COLD AREA SPEC

9011910597

main90119-10597

9017908204

main90179-08204

8 parts on this diagram · 3 diagrams in section
