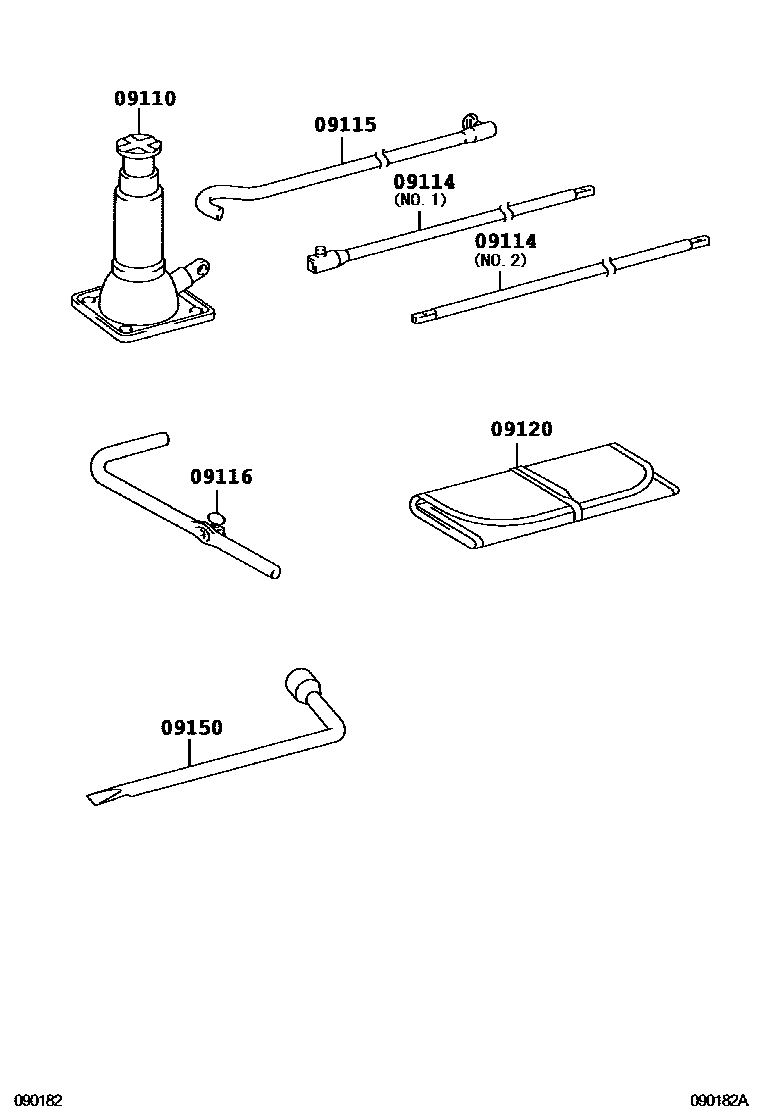

Toyota 4RUNNER — STANDARD TOOL

09110JACK ASSY

main09111-35180iGRN21#,UZN21#200208-200402

main09111-35181iGRN21#,UZN21#200403-200508

main09111-35182iGRN21#,UZN21#200704

sub09111-60140

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGRN21#,UZN21#200208-200508

NO.2

main09114-35050iGRN21#,UZN21#200508

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGRN21#,UZN21#200508

09116LEVER, JACK HANDLE

main09116-35080iGRN21#200208-200408

sub09116-60020

09120BAG, TOOL

main09120-35160iGRN21#200208-200408

sub09120-35170

09150WRENCH, HUB NUT BOX

main09150-35070iGRN21#200208-200408

6 parts on this diagram · 1 diagram in section
