EPC Data

Toyota 4RUNNER — SPOILER & SIDE MUDGUARD

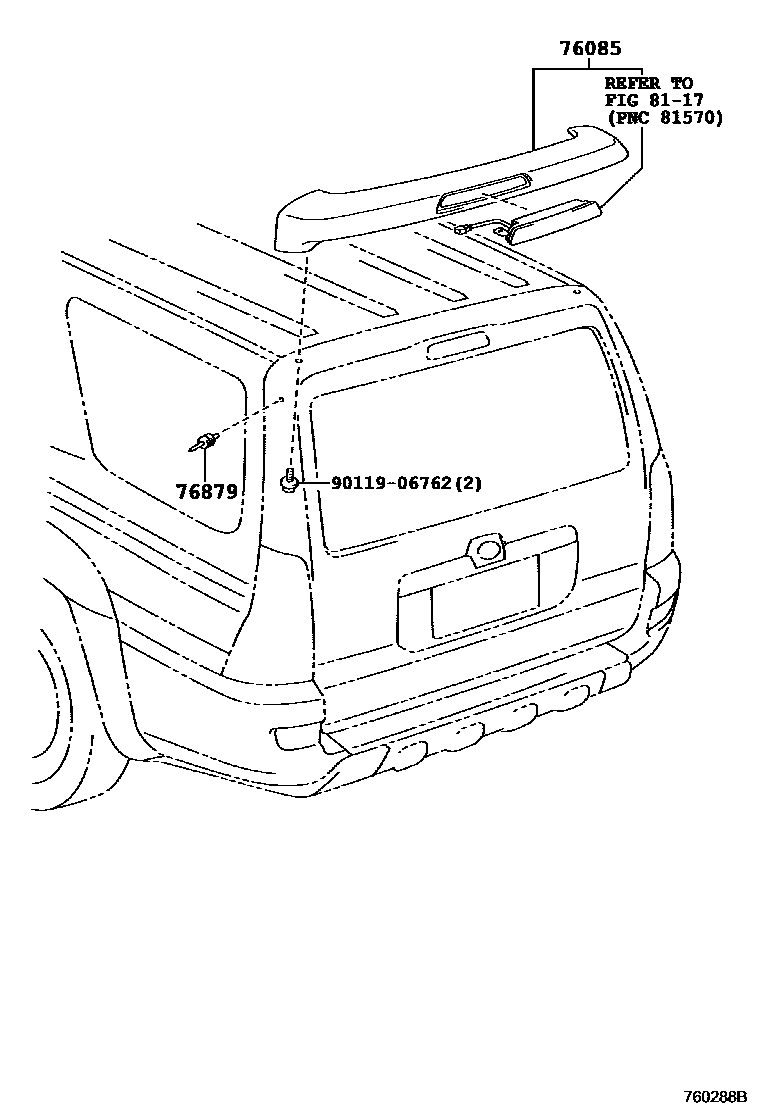

Parts diagram
76085SPOILER SUB-ASSY, REAR
main76085-35050-A0i200208-200408
REAR SPOILER-WITH,WHITE,056
sub76085-35905
main76085-35050-A1i200801-200908
REAR SPOILER-WITH,WHITE PEARL CS.,070
sub76085-35905
main76085-35050-B0i200801-200908
REAR SPOILER-WITH,SILVER ME.,1D4
sub76085-35905
main76085-35050-B1i200208-200408
REAR SPOILER-WITH,DK.GRAY M.M.,1E9
sub76085-35905
main76085-35050-C0i200801-200908
REAR SPOILER-WITH,BLACK,202
sub76085-35905
main76085-35050-D0i200208-200408
REAR SPOILER-WITH,RED M.M.,3P1
sub76085-35905
main76085-35050-F0i200208-200408
REAR SPOILER-WITH,CHAMPAGNE M.M.,587
sub76085-35905
main76085-35050-G0i200208-200408
REAR SPOILER-WITH,DK.GREEN MC.,6Q7
sub76085-35905
main76085-35050-J0i200208-200408
REAR SPOILER-WITH,DK.BLUE MC.,8Q0
sub76085-35905
main76085-35050-J1i200208-200408
REAR SPOILER-WITH,GRAYISH BLUE ME.,8R3
sub76085-35905
main76085-35070-A0i200408-200508
REAR SPOILER-WITH,WHITE,056
sub76085-35904
main76085-35070-B0i200508-200908
REAR SPOILER-WITH(LARGE SIZE),SILVER ME.,1D4
sub76085-35904
main76085-35070-B1i200408-200508
REAR SPOILER-WITH,DK.GRAY M.M.,1E9
sub76085-35904
main76085-35070-B2i200508-200908
REAR SPOILER-WITH(LARGE SIZE),DK. GRAY M.M.,1F4
sub76085-35904
main76085-35070-C0i200408-200508
REAR SPOILER-WITH,BLACK,202
sub76085-35904
main76085-35070-D0i200408-200508
REAR SPOILER-WITH,DK. RED M.M.,3Q3
sub76085-35904
main76085-35070-E0i200508-200908
REAR SPOILER-WITH(LARGE SIZE),BRONZE M.M.,4S2
sub76085-35904
main76085-35070-F0i200408-200508
REAR SPOILER-WITH,CHAMPAGNE M.M.,587
sub76085-35904
main76085-35070-J0i200408-200508
REAR SPOILER-WITH,DK.BLUE MC.,8Q0
sub76085-35904
main76085-35070-J1i200408-200508
REAR SPOILER-WITH,GRAYISH BLUE ME.,8R3
sub76085-35904
main76085-35070-J3i200508-200908
REAR SPOILER-WITH(LARGE SIZE),DK.BLUE MC.,8S6
sub76085-35904
76879CLIP, REAR SPOILER, NO.1
main76879-10030×2i200208-200408
REAR SPOILER-WITH
8117
9011906762
main90119-06762

4 parts on this diagram · 1 diagram in section
