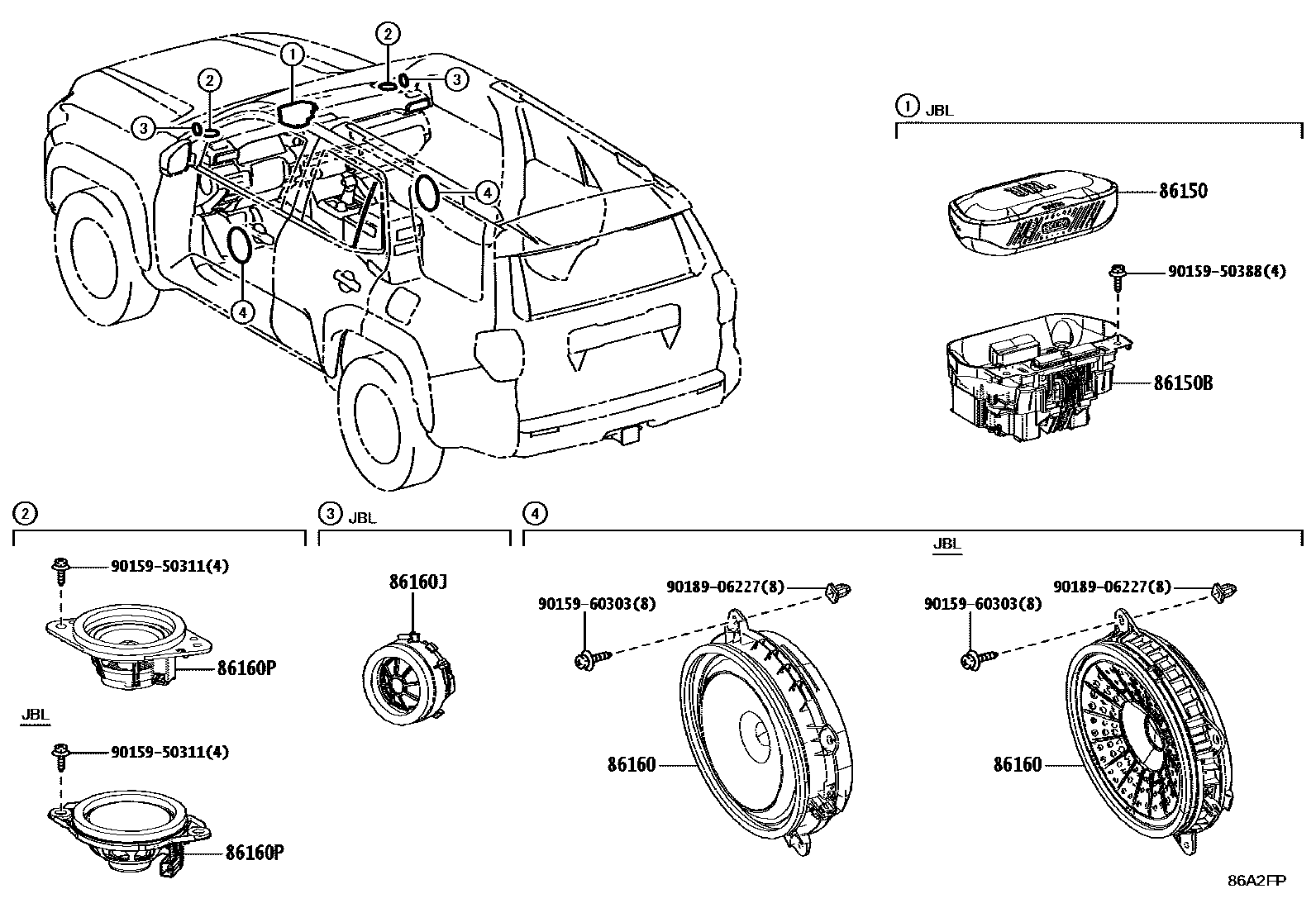

Toyota 4RUNNER — SPEAKER

0001 1FRONT SPEAKER 0002 1REAR SPEAKER 0003 1EQUALIZER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-35140iTZNA5#202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&AUDIO-PREMIUM 14INCH

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-35150iTZNA5#202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&AUDIO-PREMIUM 14INCH

86160SPEAKER ASSY, FRONT NO.1

main86150-35230×2supersedes 86160-30F70iTZNA5#202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&AUDIO-PREMIUM 14INCH

86160JSPEAKER ASSY, FRONT NO.3

main86150-33060×2iTZNA5#202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&AUDIO-PREMIUM 14INCH

86160PSPEAKER ASSY, FRONT NO.2

main86150-35220×2supersedes 86160-28830iTZNA5#202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&AUDIO-PREMIUM 14INCH

9015950311

main90159-50311

9015950388

main90159-50388

9015960303

main90159-60303

9018906227

main90189-06227

9 parts on this diagram · 3 diagrams in section
