Toyota 4RUNNER — SPEAKER

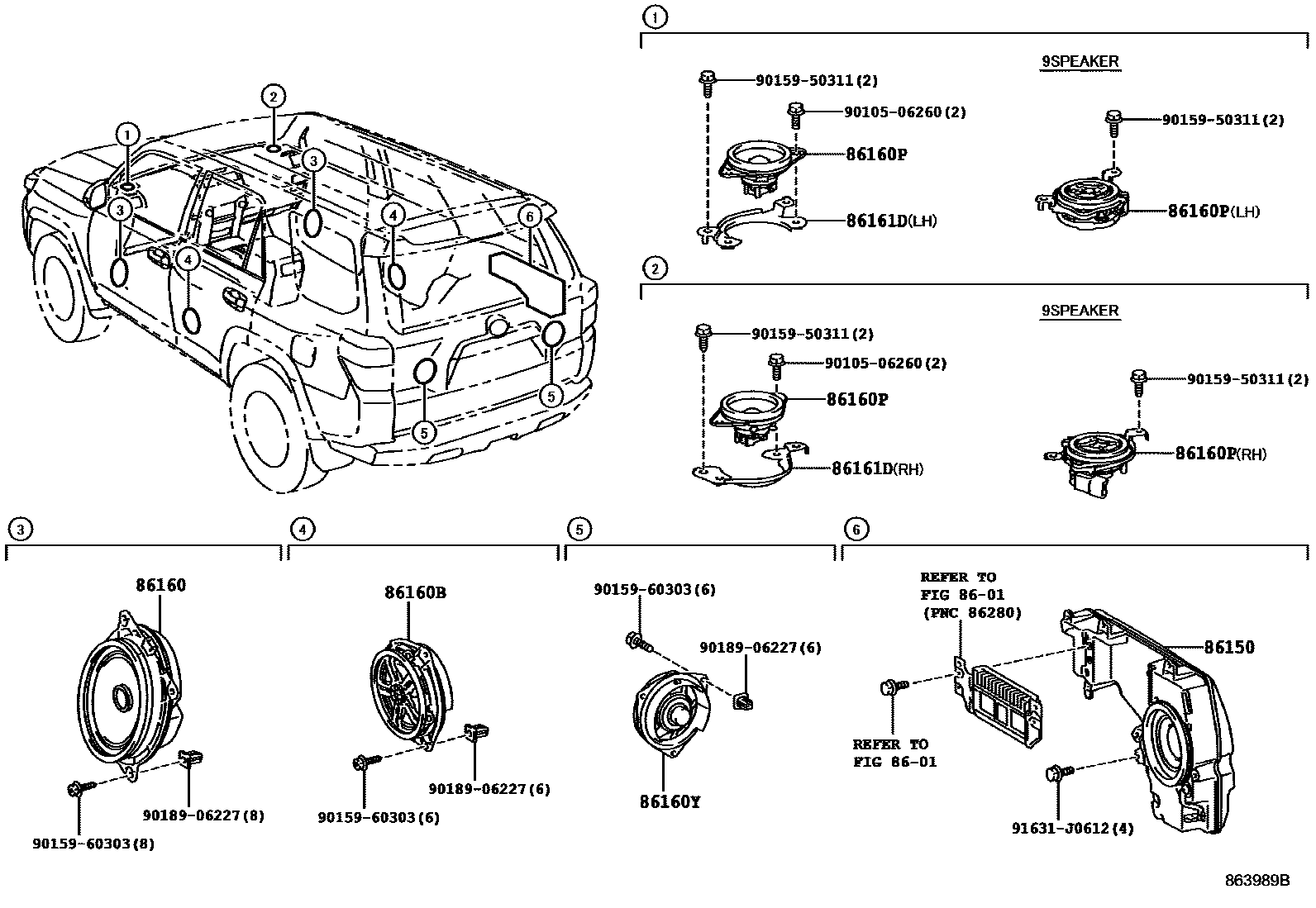

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86150SPEAKER ASSY, W/BOX, NO.1

main86150-35080

main86150-0W120

86160SPEAKER ASSY, FRONT NO.1

main86160-58240i200908-201908

86160BSPEAKER ASSY, REAR

main86160-2B580i200908-201109

main86160-52300i201110-201908

86160PSPEAKER ASSY, FRONT NO.2

main86160-47070i200908-201908

86160YSPEAKER ASSY, REAR NO.2

main86160-2B580i200908-201109

main86160-52300i201110-201908

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-35030i200908-201908

RH

main86161-35040i200908-201908

LH

9010506260

main90105-06260

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

91631J0612

main91631-J0612

12 parts on this diagram · 1 diagram in section

SPEAKER for Toyota 4RUNNER

This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota 4RUNNER. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
