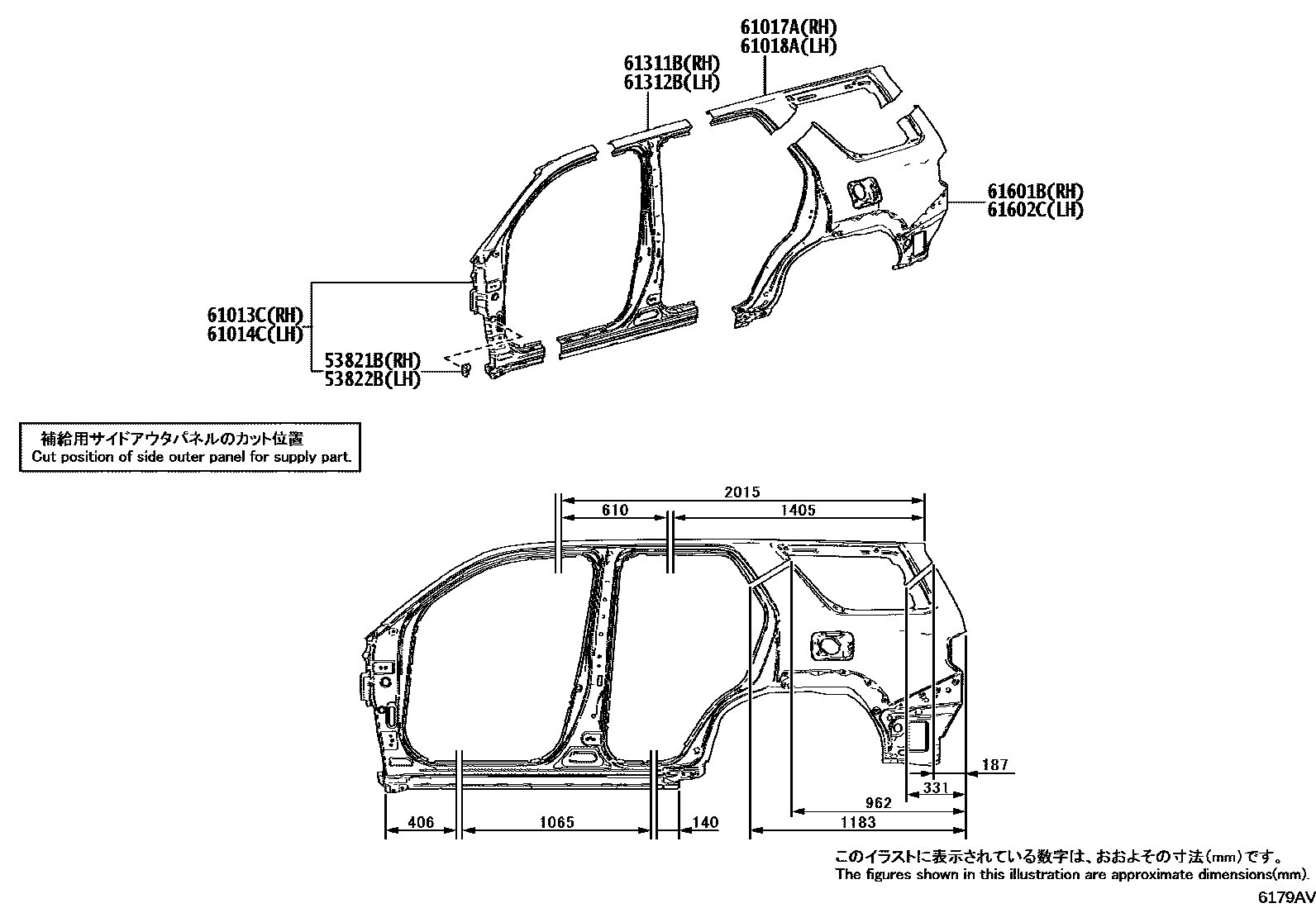

Toyota 4RUNNER — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iTZNA5#202412

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iTZNA5#202412

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-35050iTZNA5#202412

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-35060iTZNA5#202412

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-35010iTZNA5#202412

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-35010iTZNA5#202412

61311BPILLAR, CENTER BODY, OUTER RH

main61311-35030iTZNA5#202412

61312BPILLAR, CENTER BODY, OUTER LH

main61312-35030iTZNA5#202412

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-35320iTZNA5#202412

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-35250iTZNA5#202412

10 parts on this diagram · 3 diagrams in section
