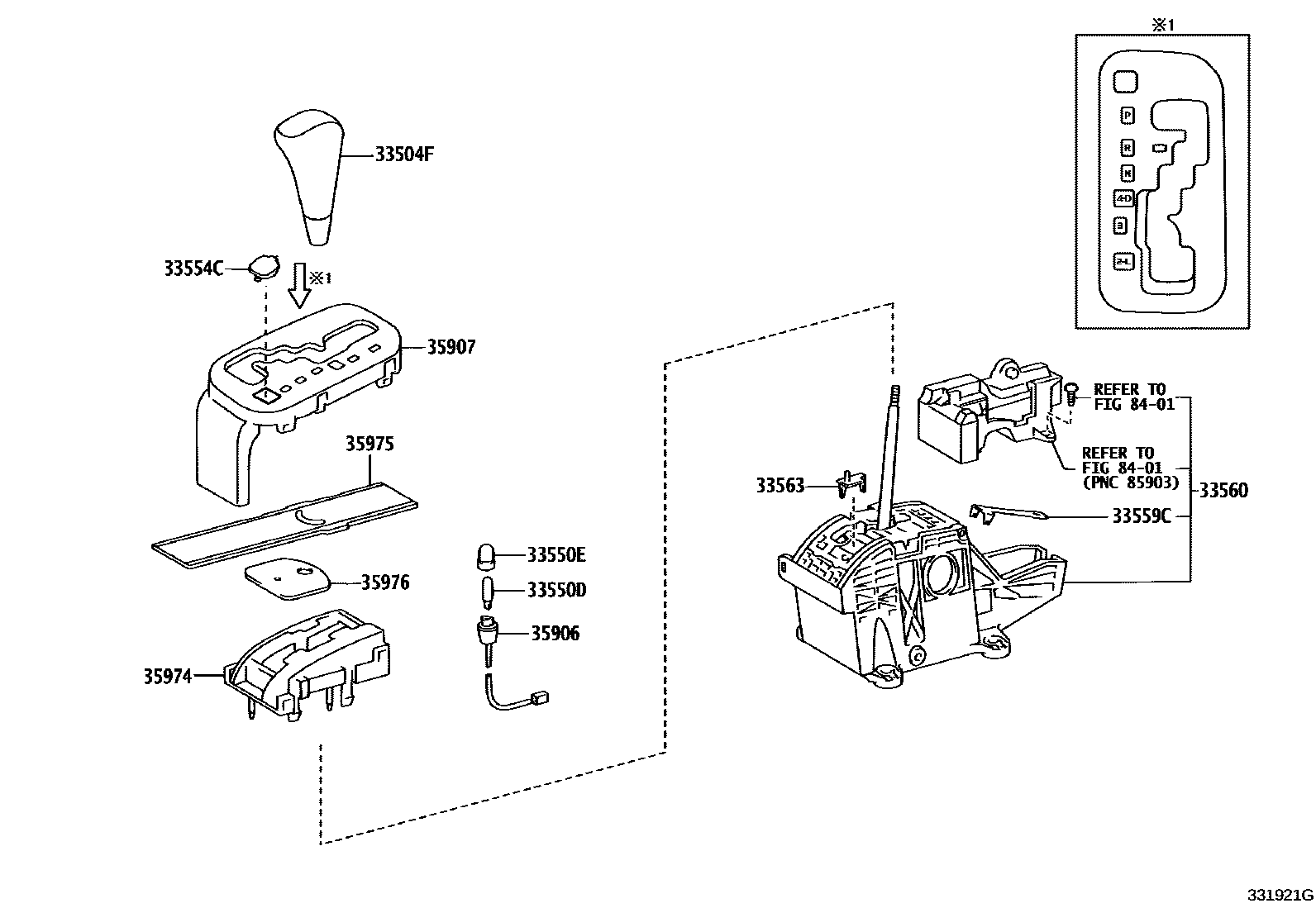

Toyota 4RUNNER — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35050-C0iUZN21#..SR5200508

BLACK,TRIM1#,4#

main33504-35060-C0supersedes 33504-35050-C0iGRN21#,UZN21#..SR5200208-200508

BLACK,TRIM1#,4#

main33504-35070-C0iGRN21#,UZN21#..SR5200508-200908

APPEARANCE PACKAGE SPORT&STEERING WHEEL-LEATHER,W(*CRC&STEERING SW),BLACK,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iGRN21#200211-200408

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-04074iGRN21#200211-200408

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-35080iGRN21#,UZN21#200508

33559CDAMPER, SHIFT LEVER SPRING

main33559-60010iGRN21#200211-200408

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-35020iGRN21#200211-200408

main33560-35030iGRN21#,UZN21#200508

33563BUTTON, SHIFT LOCK RELEASE

main33563-35100iGRN21#,UZN21#200508

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-35120iGRN21#,UZN21#200508

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-35210iGRN21#200211-200408

main35907-35230iGRN21#,UZN21#..5FC200208-200508

35974HOUSING, POSITION INDICATOR, LOWER

main35974-35160iGRN21#,UZN21#200508

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35140iGRN21#200211-200408

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-35090iGRN21#,UZN21#200508

8401

13 parts on this diagram · 2 diagrams in section
