Toyota 4RUNNER — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-35070supersedes 63102-35060i201110-201206

CANADA SPEC&MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-AVN+JBL

main63102-35071supersedes 63102-35061i201207-201209

CANADA SPEC&MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-AVN+JBL

main63102-35100supersedes 63102-35090i201408-201508

PUERTO RICO SPEC&TRAIL PACKAGE(TRD OFF ROAD)&MOON ROOF-WITH(TILT UP & SLIDE)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-35090i200908-201108

63111PANEL, ROOF

main63111-35290i201408-201508

SR5 PACKAGE

main63111-35300i201110-201308

MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA

main63111-35320supersedes 63111-35310i201110-201308

HAWAII SPEC&MOON ROOF-WITH(TILT UP & SLIDE)&AUDIO-*DA

main63111-35380supersedes 63111-35370i201508-201908

MOON ROOF-WITH(TILT UP & SLIDE)

63119DPAD, ROOF PANEL, NO.1

main63119-35010×2i200908-201107

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-35030i200908-201108

63141JREINFORCEMENT, ROOF PANEL

main63107-35010i201408-201508

PUERTO RICO SPEC&TRAIL PACKAGE(TRD OFF ROAD)&MOON ROOF-WITH(TILT UP & SLIDE)

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-35060i200908-201108

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63104-35010i200908-201108

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63103-35030i200908-201108

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63106-35010i200908-201108

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63126-35040i200908-201108

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020i200908-201108

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020i200908-201001

main63179-35030i201002-201108

63185HBRACKET, ROOF RACK

main63185-42020×4i200908-201108

63187ABRACKET, ROOF RACK, REAR

main63187-35020×4i200908-201108

63479RETAINER, ROOF INNER RACK

main63479-60020×4i200908-201108

7552

9011908D28

main90119-08D28

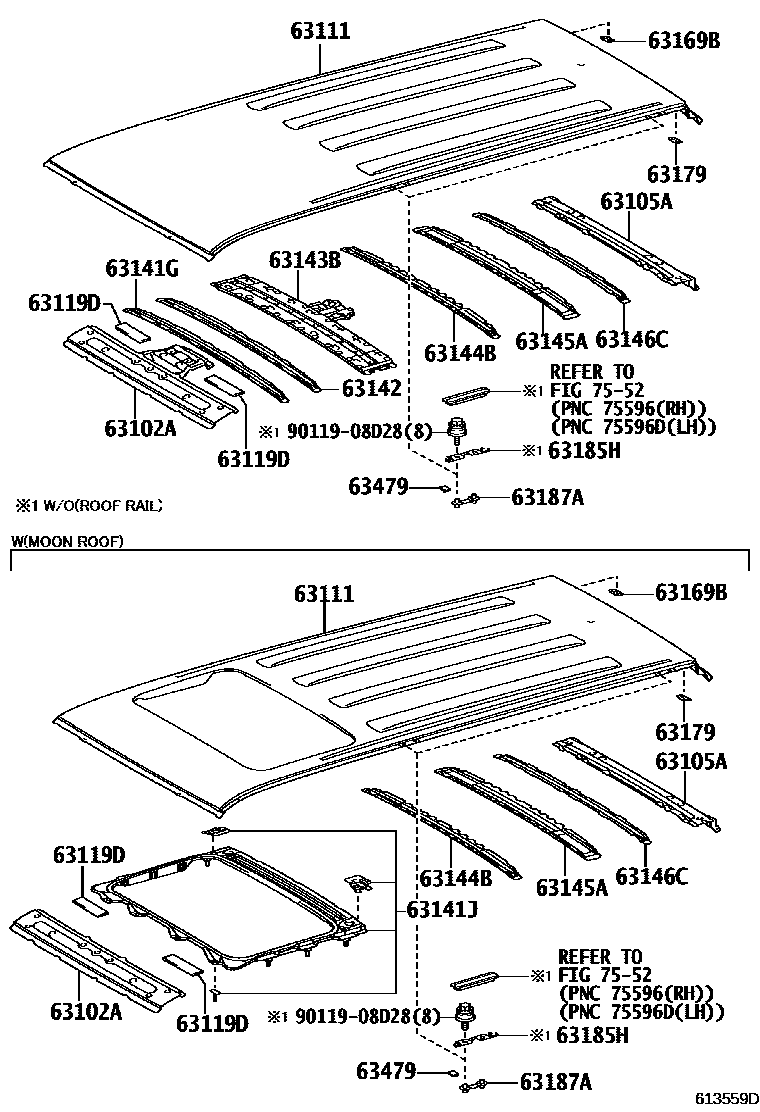

18 parts on this diagram · 3 diagrams in section
