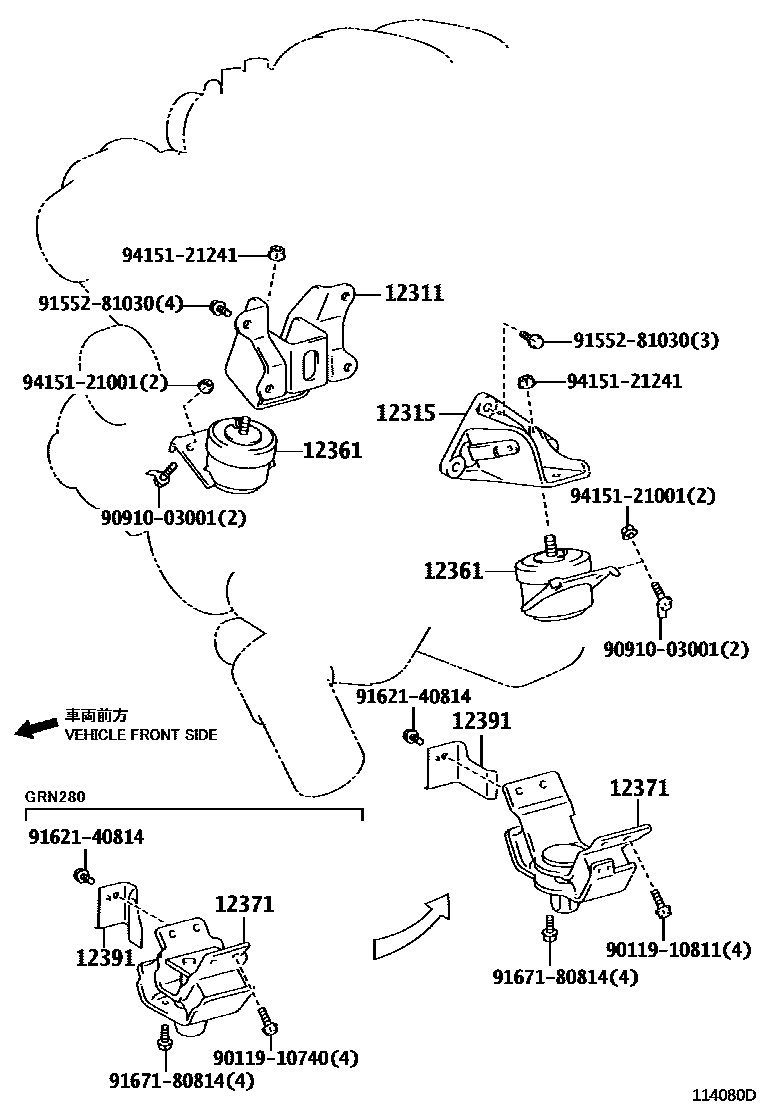

Toyota 4RUNNER — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31021i1GRFE..GRN28#200908-201308

main12311-75090i2TRFE..TRN28#200911

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31051i1GRFE..GRN28#201308-201908

main12315-75090i2TRFE..TRN28#200911

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31290×2i1GRFE..GRN28#201908

main12361-75071×2i2TRFE..TRN28#200911-201108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31050i1GRFE..GRN285200908-201110

main12371-31051i1GRFE..GRN285201111-201308

main12371-31060i1GRFE..GRN280201908

main12371-75150i2TRFE..TRN280200911-201108

main12371-75180i2TRFE..TRN285201008-201108

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31020i1GRFE..GRN285201308-201908

main12391-31030i1GRFE..GRN280201308-201908

main12391-50070i2TRFE..TRN28#200911-201108

9011910740

main90119-10740

9011910811

main90119-10811

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167180814

main91671-80814

9415121001

main94151-21001

9415121241

main94151-21241

13 parts on this diagram · 2 diagrams in section
