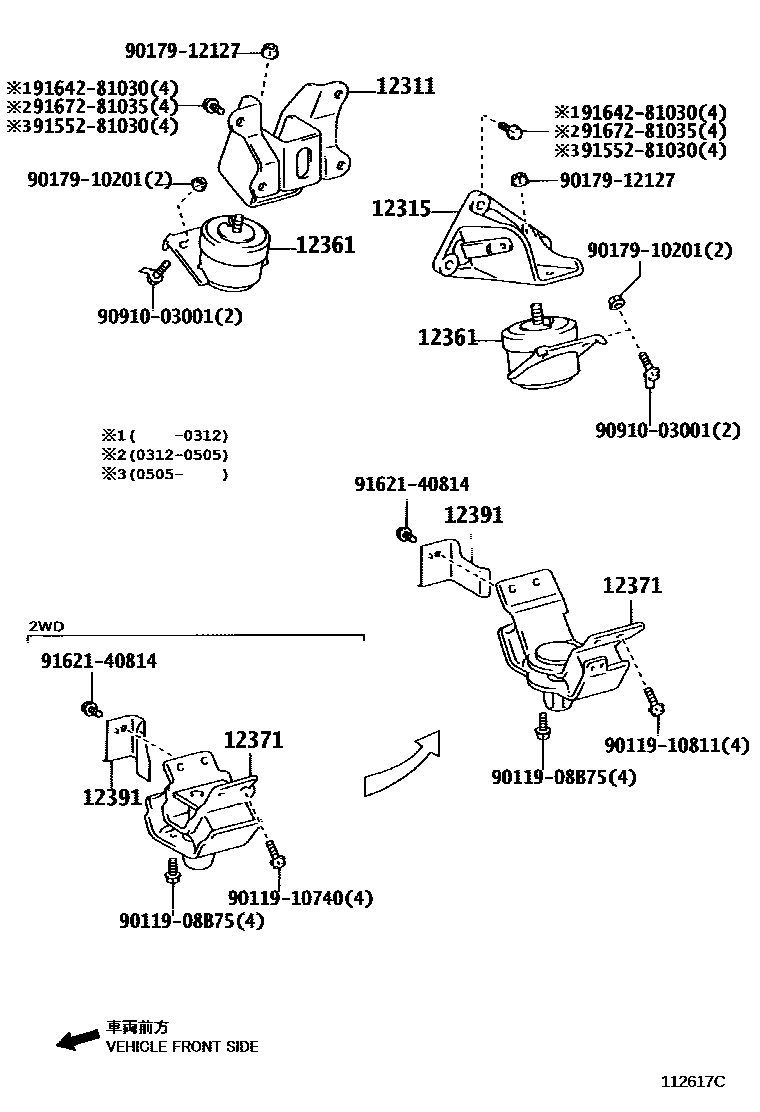

Toyota 4RUNNER — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31020i1GRFE..GRN21#200211-200505

main12311-31021i1GRFE..GRN21#200505-200508

main12311-50140i2UZFE..UZN21#200208-200508

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31050i1GRFE..GRN21#200211-200505

main12315-31051i1GRFE..GRN21#200508

main12315-50110i2UZFE..UZN21#200508

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31080×2i1GRFE..GRN21#..5FC200211-200508

main12361-31081×2i1GRFE..GRN21#200812

main12361-50190×2i2UZFE..UZN21#200508

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31050i1GRFE..GRN215200508

sub12371-31051

main12371-31060i1GRFE..GRN210200508

main12371-50150i2UZFE..UZN215200208-200508

main12371-50160i2UZFE..UZN210200208-200508

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31020i1GRFE..GRN215..5FC200211-200508

main12391-31030i1GRFE..GRN210200508

main12391-50070i2UZFE..UZN215200208-200408

main12391-50080i2UZFE..UZN215200508

9011908B75

main90119-08B75

9011910740

main90119-10740

9011910811

main90119-10811

9017910201

main90179-10201

9017912127

main90179-12127

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9164281030

main91642-81030

9167281035

main91672-81035

15 parts on this diagram · 2 diagrams in section
