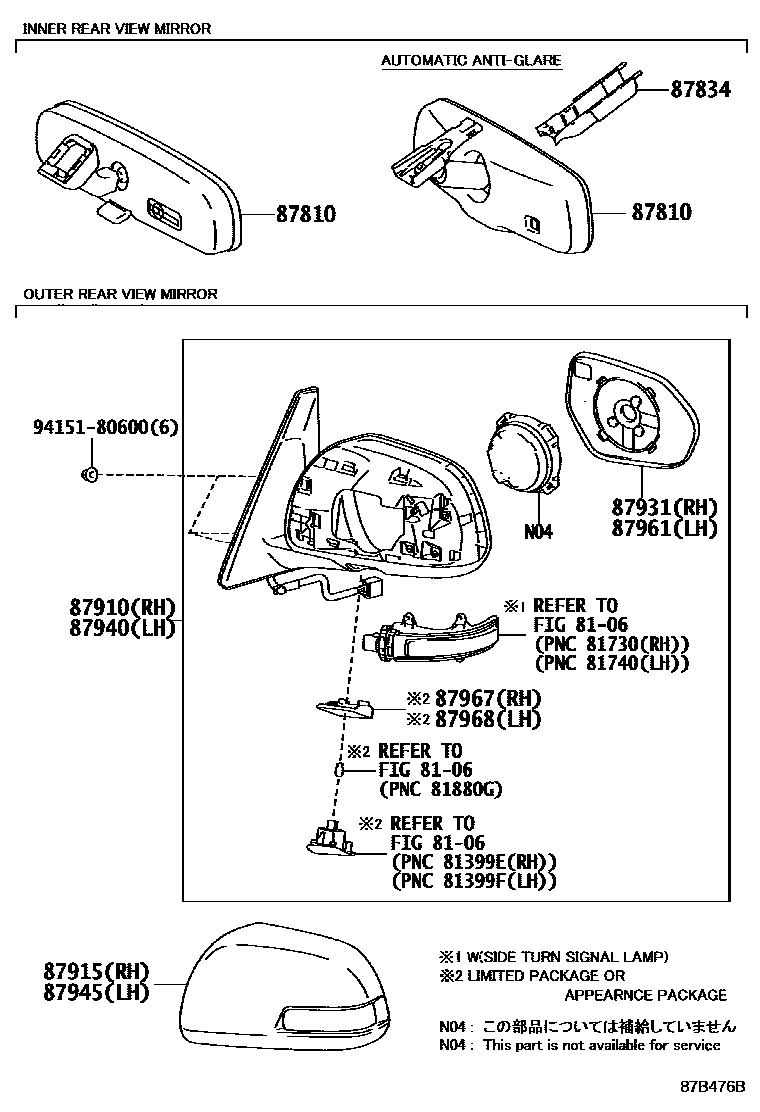

Toyota 4RUNNER — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
SR5 PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
TRAIL PACKAGE&BACK MONITOR-WITH(AVN)
LIMITED PACKAGE&BACK MONITOR-WITH(AVN)
SR5 PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
SR5 PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
LIMITED PACKAGE&BACK MONITOR-WITH(AVN)
APPEARANCE PACKAGE(SR5)&BACK MONITOR-WITH(AVN)
SR5 PACKAGE&BACK MONITOR-WITH(IN INNER MIRROR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,LIMITED PACKAGE
NO PAINT REQ.,APPEARANCE PACKAGE(SR5)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA & *BSM
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA & *BSM & *PVM
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *BSM & *PVM
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
DK.GRAY,1L7
BLACK,202
LIMITED BLACK EDITION(DISC WHEEL=BLACK),ATTITUDE BLACK MC.,070 ,1G3 ,218
RED M.M.,3R3
ORANGE M.M.,4X0
BEIGE,4V6
POP ORANGE CS.,4W5
TERRA,4Z0
YELLOW M.M.,5C3
DK.GREEN,6V7
URBAN KHAKI,6X3
DK.BLUE MC.,8S6
GRAYISH BLUE,8W2
BLUE,8T6
APPEARANCE PACKAGE(SR5),WHITE PEARL CS.,070
sub87915-42100
APPEARANCE PACKAGE(SR5),SILVER ME.,1F7
sub87915-42100
APPEARANCE PACKAGE(SR5),GRAY ME.,1G3
sub87915-42100
LIMITED PACKAGE,BLACK,202
sub87915-42100
APPEARANCE PACKAGE(SR5),DK. RED M.M.,3Q3
sub87915-42100
NO PAINT REQ.,WITHOUT(CLEARANCE SONAR)
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,LIMITED PACKAGE
NO PAINT REQ.,LIMITED PACKAGE
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA & *BSM
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA & *BSM & *PVM
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *SITL & *FLA&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & *BSM & *PVM
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
DK.GRAY,1L7
BLACK,202
VENTURE SPECIAL EDITION,ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,3R3 ,8S6
RED M.M.,3R3
ORANGE M.M.,4X0
BEIGE,4V6
POP ORANGE CS.,4W5
TERRA,4Z0
YELLOW M.M.,5C3
DK.GREEN,6V7
URBAN KHAKI,6X3
DK.BLUE MC.,8S6
GRAYISH BLUE,8W2
BLUE,8T6
LIMITED PACKAGE,WHITE PEARL CS.,070
sub87945-42100
APPEARANCE PACKAGE(SR5),SILVER ME.,1F7
sub87945-42100
APPEARANCE PACKAGE(SR5),GRAY ME.,1G3
sub87945-42100
APPEARANCE PACKAGE(SR5),BLACK,202
sub87945-42100
APPEARANCE PACKAGE(SR5),DK. RED M.M.,3Q3
sub87945-42100
NO PAINT REQ.,TRAIL PACKAGE
87961MIRROR OUTER, LH
87967HOLDER, MIRROR, OUTER RH
APPEARANCE PACKAGE(SR5)
87968HOLDER, MIRROR, OUTER LH
APPEARANCE PACKAGE(SR5)
9415180600
main94151-80600
12 parts on this diagram · 2 diagrams in section
