EPC Data

Toyota 4RUNNER — METER

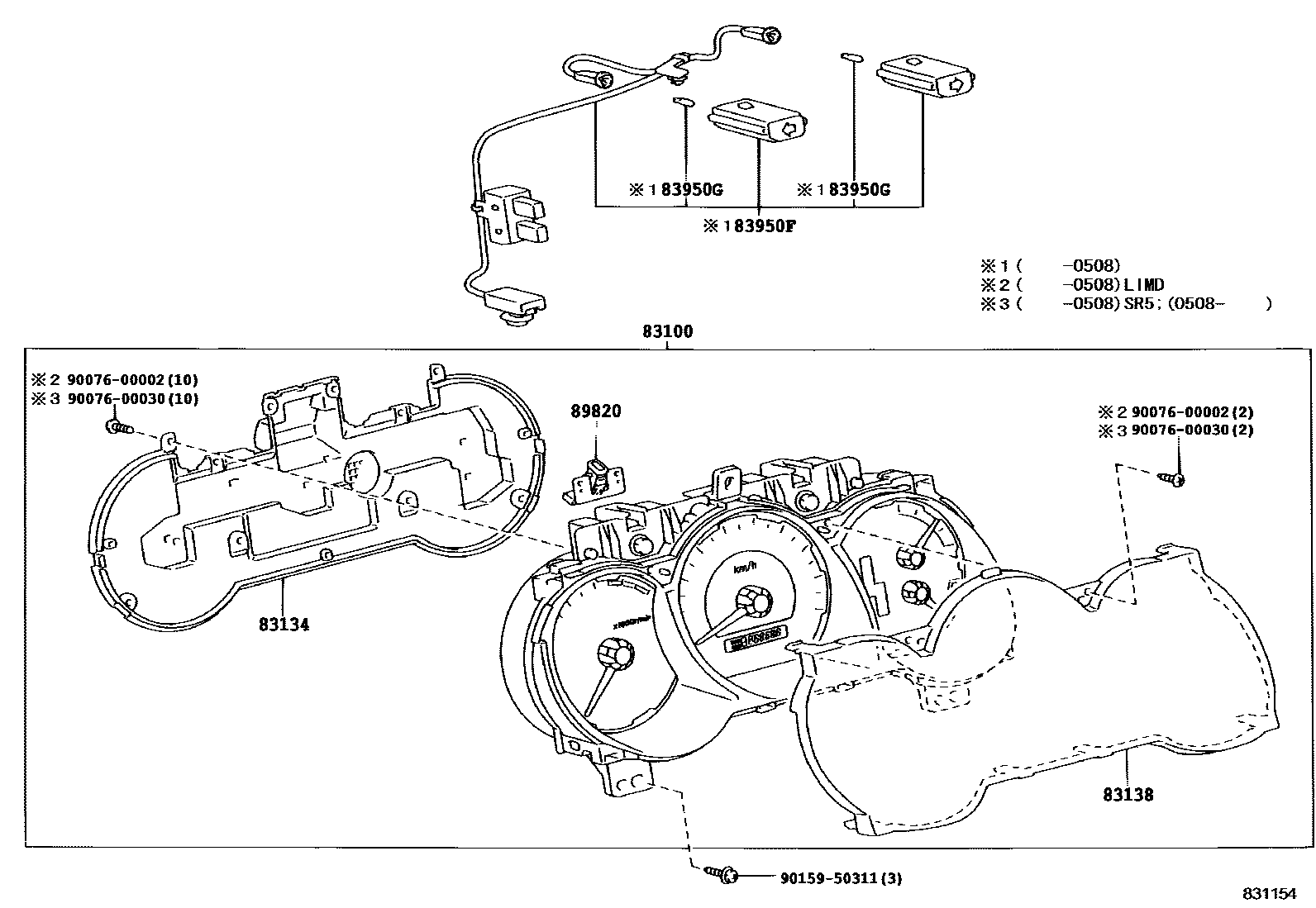

Parts diagram
83100METER ASSY, COMBINATION
main83800-35B30i200308-200408
main83800-35B40i200308-200408
main83800-35D60i200408-200508
main83800-35D70i200408-200508
main83800-35F10i200508-200707
main83800-35F12i200707
main83800-3G600i200211-200308
main83800-3G610i200211-200308
main83800-35A20supersedes 83800-3G480i200308-200410
REAR SUSPENSION-W/AIR SUSPENTION
main83800-35A50i200308-200408
CANADA SPEC
main83800-35A60i200308-200408
CANADA SPEC
main83800-35A70i200308-200408
CANADA SPEC&REAR SUSPENSION-W/AIR SUSPENTION
main83800-35A80supersedes 83800-35A30i200308-200408
CANADA SPEC
main83800-35A90supersedes 83800-35A40i200308-200408
CANADA SPEC
main83800-35B20i200308-200408
REAR SUSPENSION-W/AIR SUSPENTION
main83800-35B50supersedes 83800-3G570i200308-200410
MEXICO SPEC
main83800-35B60supersedes 83800-3G580i200308-200410
MEXICO SPEC
main83800-35C50supersedes 83800-35C40i200411-200508
REAR SUSPENSION-W/AIR SUSPENTION
main83800-35C80supersedes 83800-35C30i200411-200508
CANADA SPEC
main83800-35C90supersedes 83800-35C40i200411-200508
CANADA SPEC
main83800-35D00supersedes 83800-35C40i200411-200508
CANADA SPEC&REAR SUSPENSION-W/AIR SUSPENTION
main83800-35D10supersedes 83800-35C60i200408-200508
CANADA SPEC
main83800-35D20supersedes 83800-35C70i200408-200508
CANADA SPEC
main83800-35D50supersedes 83800-35D40i200411-200508
REAR SUSPENSION-W/AIR SUSPENTION
main83800-35D80supersedes 83800-35D40i200411-200508
MEXICO SPEC
main83800-35E90supersedes 83800-35E80i200508-200707
REAR AIR SUSPENTION
main83800-35E92supersedes 83800-35E82i200707
REAR AIR SUSPENTION
main83800-35F40supersedes 83800-35F30i200508-200707
REAR AIR SUSPENTION
main83800-35F42supersedes 83800-35F32i200707
REAR AIR SUSPENTION
main83800-35F50supersedes 83800-35E50i200508-200707
CANADA SPEC
main83800-35F52supersedes 83800-35E52i200707
CANADA SPEC
main83800-35F60supersedes 83800-35E60i200508-200707
CANADA SPEC
main83800-35F62supersedes 83800-35E62i200707
CANADA SPEC
main83800-35F70supersedes 83800-35E70i200508-200707
CANADA SPEC
main83800-35F72supersedes 83800-35E72i200707
CANADA SPEC
main83800-35F80supersedes 83800-35E80i200508-200707
CANADA SPEC
main83800-35F82supersedes 83800-35E82i200707
CANADA SPEC
main83800-35F90supersedes 83800-35E80i200508-200707
CANADA SPEC&REAR AIR SUSPENTION
main83800-35F92supersedes 83800-35E82i200707
CANADA SPEC&REAR AIR SUSPENTION
main83800-35G00supersedes 83800-35F20i200508-200707
MEXICO SPEC
main83800-35G02supersedes 83800-35F22i200707
MEXICO SPEC
main83800-35G10supersedes 83800-35F30i200508-200707
MEXICO SPEC
main83800-35G12supersedes 83800-35F32i200707
MEXICO SPEC
main83800-35G80supersedes 83800-35F00i200508-200707
MEXICO SPEC
main83800-35G82supersedes 83800-35F02i200707
MEXICO SPEC
main83800-35J30i200808
USA 50 STATES SPEC&OFF ROAD PACKAGE
main83800-3D660supersedes 83800-35D30i200411-200508
MEXICO SPEC
main83800-3G490supersedes 83800-3G480i200208-200308
REAR SUSPENSION-W/AIR SUSPENTION
main83800-3G520supersedes 83800-3G470i200208-200308
CANADA SPEC
main83800-3G530supersedes 83800-3G480i200208-200308
CANADA SPEC
main83800-3G540supersedes 83800-3G480i200208-200308
CANADA SPEC&REAR SUSPENSION-W/AIR SUSPENTION
main83800-3G550supersedes 83800-3G500i200211-200308
CANADA SPEC
main83800-3G560supersedes 83800-3G510i200211-200308
CANADA SPEC
main83800-3G590supersedes 83800-3G580i200208-200308
REAR SUSPENSION-W/AIR SUSPENTION
main83800-3G620supersedes 83800-3G570i200208-200308
MEXICO SPEC
main83800-3G630supersedes 83800-3G580i200208-200308
MEXICO SPEC
83134COVER, COMBINATION METER, NO.1
main83821-3G390i200707
83138GLASS, SPEEDOMETER
main83852-35E50i200508-200706
main83852-3G390i200208-200410
83950FLAMP ASSY, TELLTALE
main83950-35030i200208-200408
83950GBULB, TELLTALE LAMP
main84999-50050×2i200208-200508
14V 1.4W
89820SENSOR ASSY, INCLINATION
main89820-35020i200508-200908
9007600002
main90076-00002
9007600030
main90076-00030
9015950311
main90159-50311

9 parts on this diagram · 1 diagram in section
