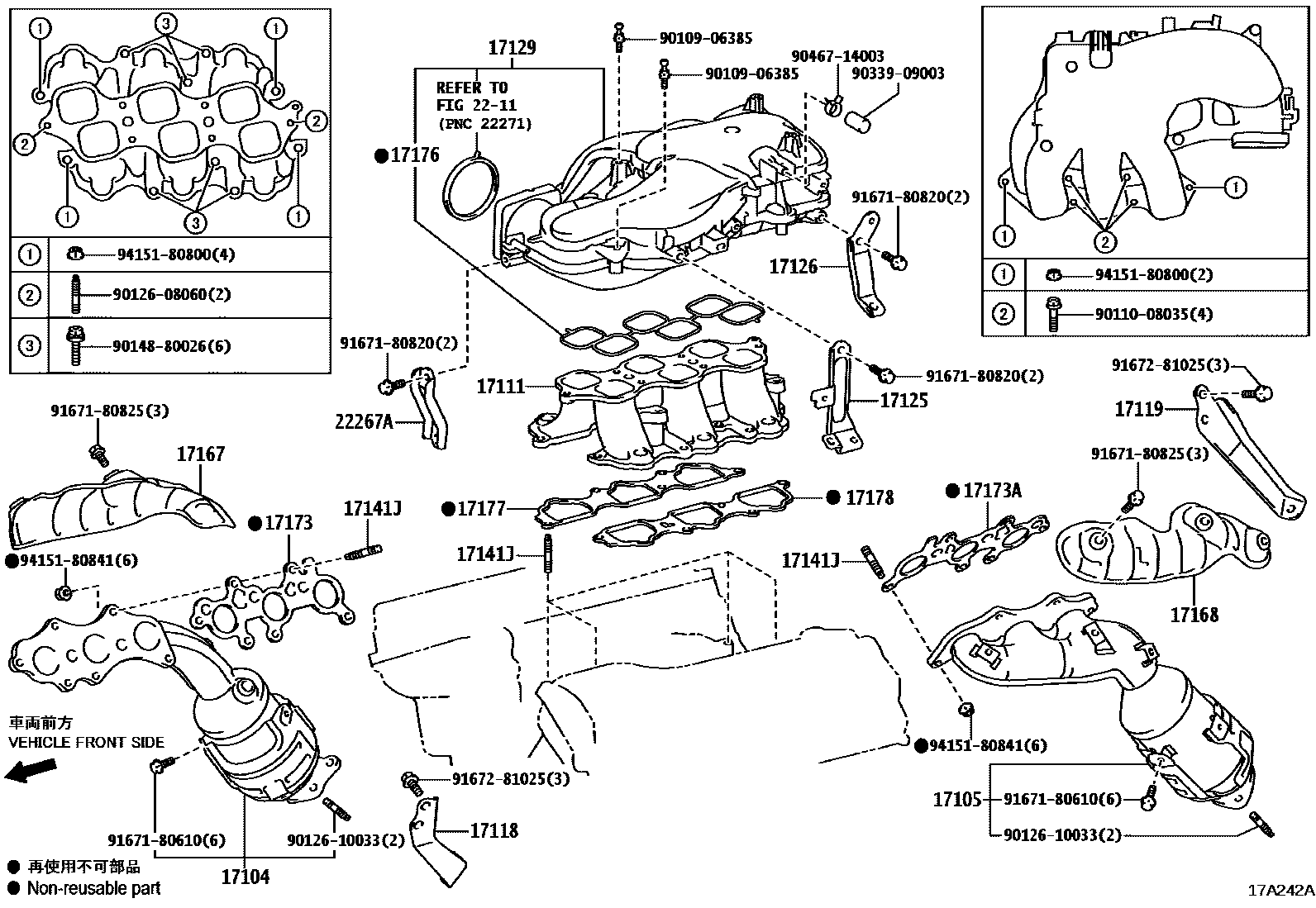

Toyota 4RUNNER — MANIFOLD
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211FUEL INJECTION SYSTEM
22267ABRACKET, THROTTLE BODY
9010906385
main90109-06385
9011008035
main90110-08035
9012608060
main90126-08060
9012610033
main90126-10033
9014880026
main90148-80026
9033909003
main90339-09003
9046714003
main90467-14003
9167180610
main91671-80610
9167180820
main91671-80820
9167180825
main91671-80825
9167281025
main91672-81025
9415180800
main94151-80800
9415180841
main94151-80841
32 parts on this diagram · 3 diagrams in section
MANIFOLD for Toyota 4RUNNER
This section contains 44 genuine Toyota parts for the MANIFOLD system of the Toyota 4RUNNER. Key components include: MANIFOLD SUB-ASSY, EXHAUST, RH, MANIFOLD SUB-ASSY, EXHAUST, LH, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD), STAY, MANIFOLD.
