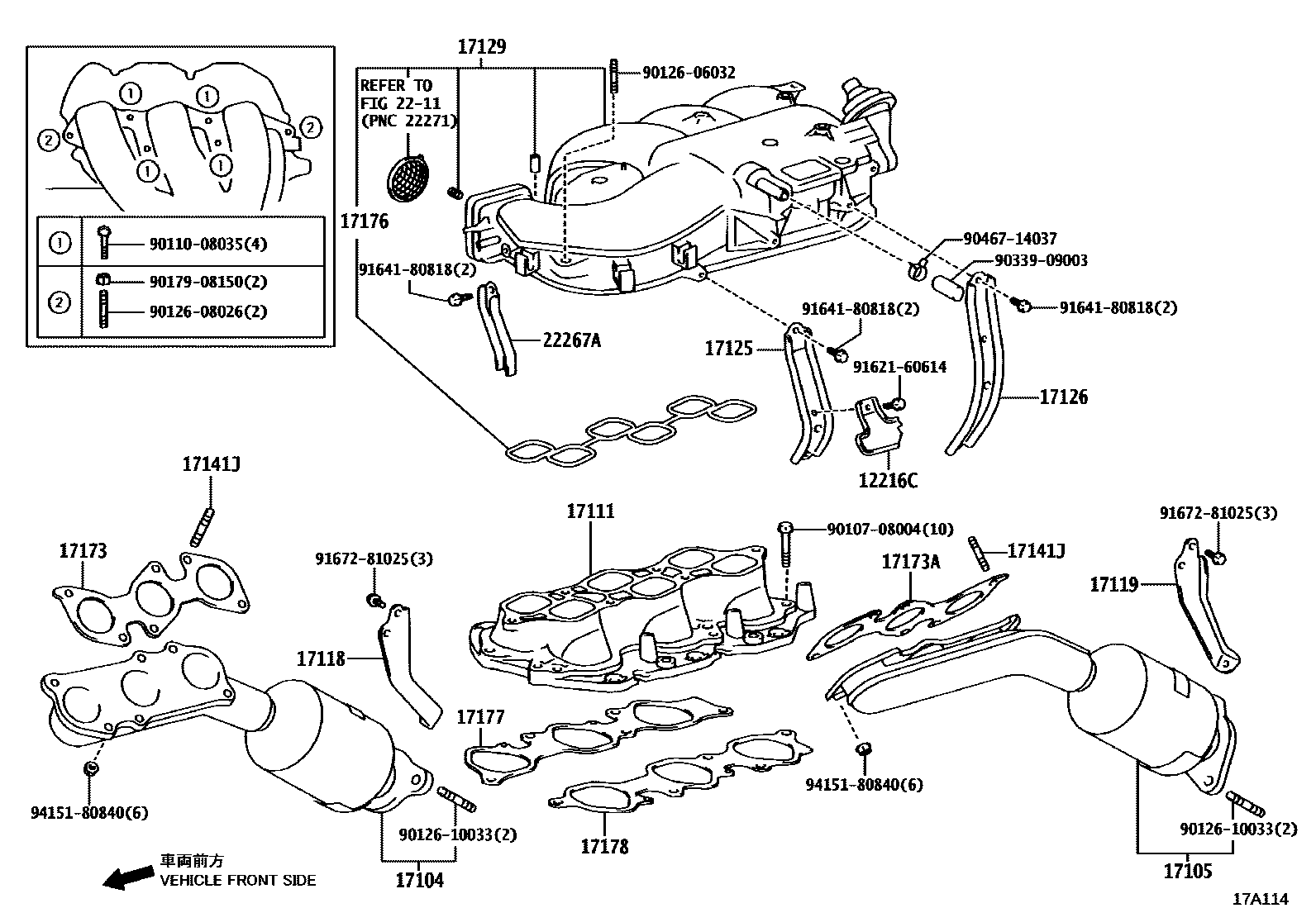

Toyota 4RUNNER — MANIFOLD
12216CPLATE, OIL BAFFLE
17104MANIFOLD SUB-ASSY, EXHAUST, RH
*115=TOYOTA/03-/Y
*114=*689
*114=*565
17105MANIFOLD SUB-ASSY, EXHAUST, LH
*115=TOYOTA/03-/Y
*115=TOYOTA/03-/Y
*114=*566
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211FUEL INJECTION SYSTEM
22267ABRACKET, THROTTLE BODY
9010708004
main90107-08004
9011008035
main90110-08035
9012606032
main90126-06032
9012608026
main90126-08026
9012610033
main90126-10033
9017908150
main90179-08150
9033909003
main90339-09003
9046714037
main90467-14037
9162160614
main91621-60614
9164180818
main91641-80818
9167281025
main91672-81025
9415180840
main94151-80840
30 parts on this diagram · 3 diagrams in section
MANIFOLD for Toyota 4RUNNER
This section contains 58 genuine Toyota parts for the MANIFOLD system of the Toyota 4RUNNER. Key components include: PLATE, OIL BAFFLE, CAP, VENTILATION, VACUUM PIPING, MANIFOLD SUB-ASSY, INTAKE, UPPER, MANIFOLD SUB-ASSY, EXHAUST, RH.
