Toyota 4RUNNER — INTERIOR LAMP

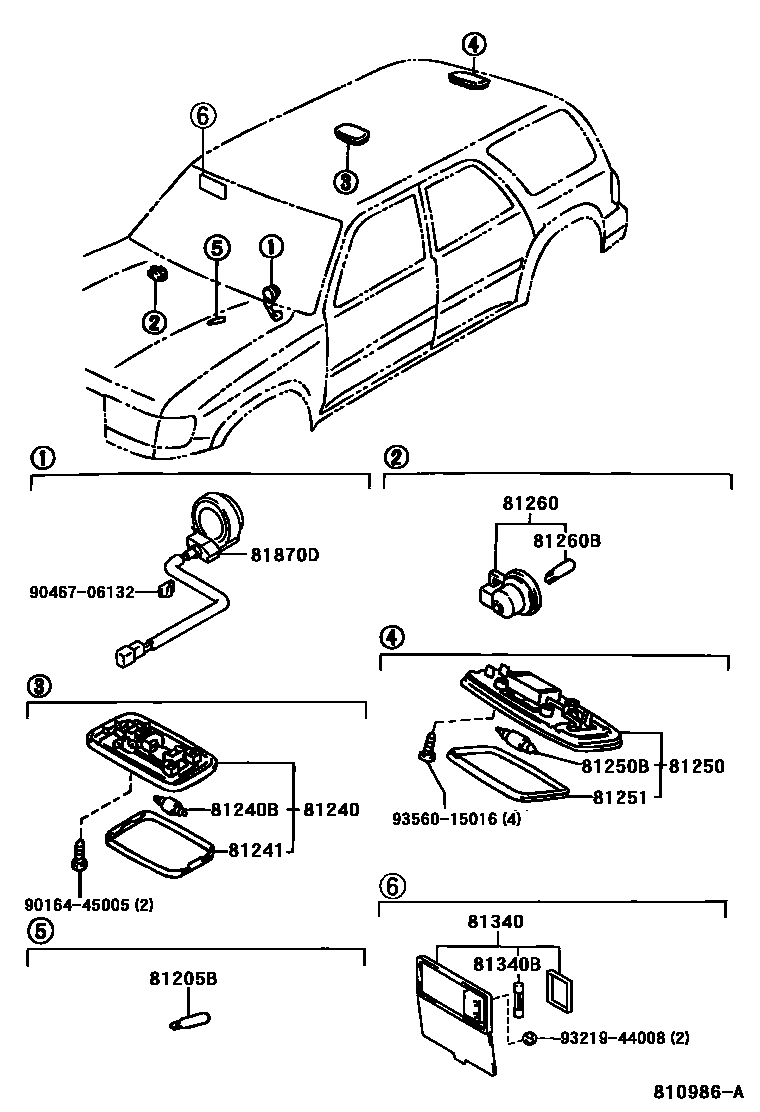

Parts diagram
81205BBULB, ASH RECEPTACLE LAMP
main90981-11041i199511
14V 1.4W
81240LAMP ASSY, ROOM, NO.1
main81240-12060-B1i199807-200008
LT.BLUISH GRAY,TRIM1#
main81240-12060-B2i199511-199807
MOON MIST,TRIM1#
main81240-12060-B6i200008
MD.CHARCOAL,TRIM1#
main81240-12060-E0i199511
MD.OAK,TRIM4#
81240BBULB, ROOM LAMP, NO.1
main90981-14011i199511
12V 8W
81241LENS, ROOM LAMP, NO.1
main81241-12020i199511
81250LAMP ASSY, ROOM, NO.2
main81240-32031-B1i199511-199705
MD.MOON MIST,TRIM1#
main81240-32031-E4i199511-199705
OAK,TRIM4#
main81240-35010-B0i199705-199807
MD.MOON MIST,TRIM1#
main81240-35010-B1i199807-200008
LT.BLUISH GRAY,TRIM1#
main81240-35010-B2i200008
MD.CHARCOAL,TRIM1#
main81240-35010-E0i199705-199807
OAK,TRIM4#
main81240-35010-E1i199807
MD.OAK,TRIM4#
81250BBULB, ROOM LAMP, NO.2
main90981-14002i199705
12V 5W
main90981-14004i199511-199705
12V 8W
81251LENS, ROOM LAMP, NO.2
main81241-32031i199511-199807
81260LAMP ASSY, GLOVE BOX
main81260-33010i199511
81260BBULB(FOR GLOVE BOX)
main90981-11018i199511
12V 1.2W W/O SOCKET
81340LAMP ASSY, VANITY
main81340-33090-B3i200008
MD.CHARCOAL,TRIM1#,LH
main81340-33090-E0i200008
MD.OAK,TRIM4#,LH
main81350-33040-B2i199708-200008
MOON MIST,TRIM1#,RH
main81350-33040-E0i199708-200008
MD.OAK,TRIM4#,RH
main81350-33050-B2i200008
MD.CHARCOAL,TRIM1#,RH
main81350-33050-E0i200008
MD.OAK,TRIM4#,RH
81340BBULB (FOR VANITY LAMP)
main90981-14003i199708-200008
12V 1.5W
81870DLAMP ASSY, KEY CYLINDER
main81870-35020i199511-199807
main81870-35050i199807
W(ENGINE IMMOBILIZER SYSTEM)
9016445005
main90164-45005
9046706132
main90467-06132
9321944008
main93219-44008
9356015016
main93560-15016

16 parts on this diagram · 3 diagrams in section

INTERIOR LAMP for Toyota 4RUNNER

This section contains 28 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 4RUNNER. Key components include: BULB, ASH RECEPTACLE LAMP, BRACKET, MAP LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1.
