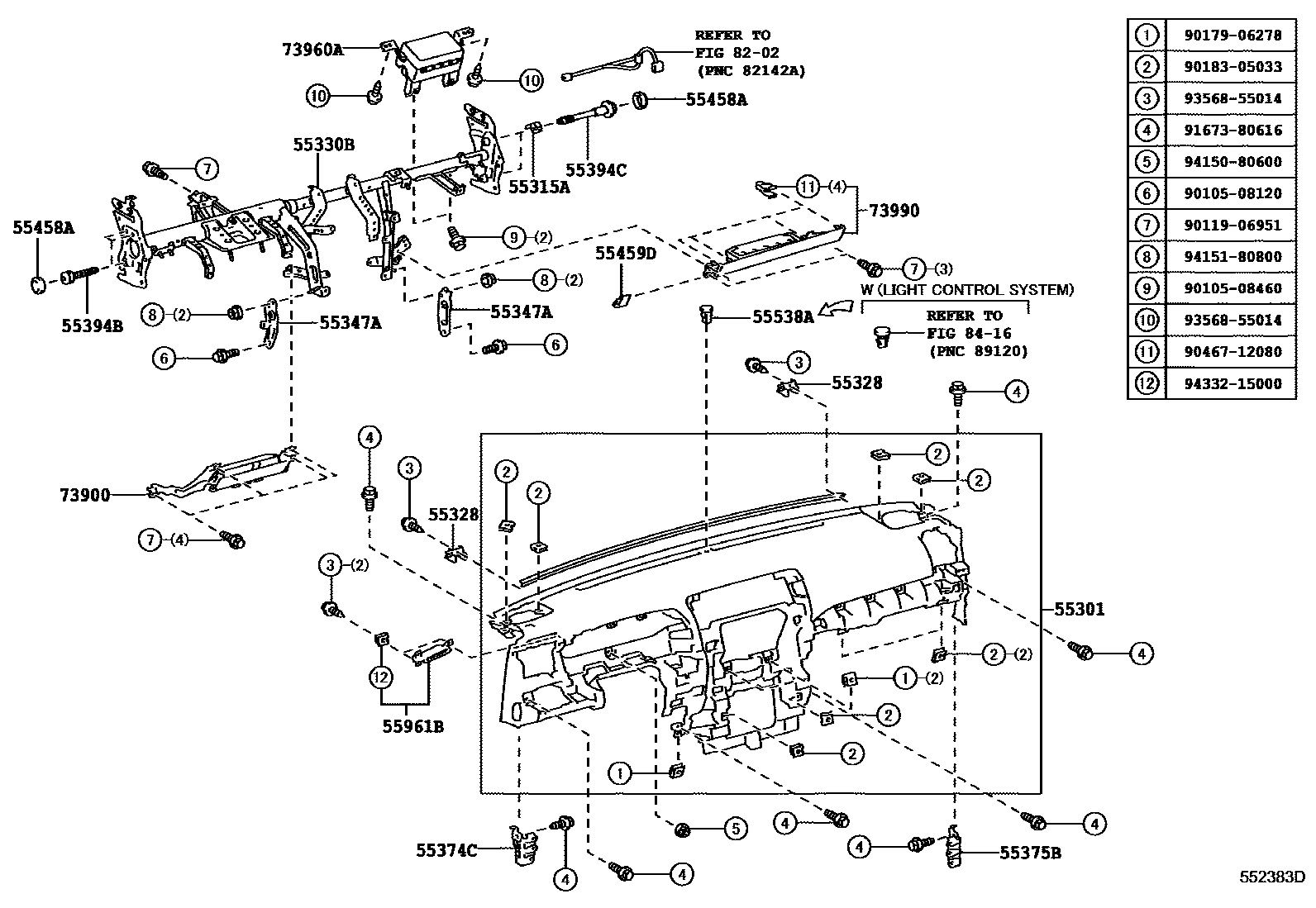

Toyota 4RUNNER — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,TRIM1#,4#
55315ASPACER, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
LH
RH
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55459DCOVER, INSTRUMENT, LOWER LH
GRAY,TRIM1#
BLACK,TRIM2#,4#
SAND BEIGE,TRIM4#
55538ACOVER, COOLER SWITCH HOLE
CANADA SPEC& LIMITED PACKAGE&AIR CONDITIONER-AUTO; CANADA SPEC& SR5 PACKAGE; CANADA SPEC& SR5 PACKAGE&AIR CONDITIONER-AUTO; CANADA SPEC& SR5 TRAIL EDITION; CANADA SPEC& SR5 TRAIL EDITION&AIR CONDITIONER-AUTO; CANADA SPEC&NIGHTSHADE EDITION&AIR CONDITIONER-AUTO; CANADA SPEC&TRD OFF ROAD; CANADA SPEC&TRD OFF ROAD&AIR CONDITIONER-AUTO; CANADA SPEC&TRD PRO PACKAGE&AIR CONDITIONER-AUTO; CANADA SPEC&VENTURE SPECIAL EDITION; CANADA SPEC&VENTURE SPECIAL EDITION&AIR CONDITIONER-AUTO; LIMITED PACKAGE&AIR CONDITIONER-AUTO; NIGHTSHADE EDITION&AIR CONDITIONER-AUTO; SR5 PACKAGE&AIR CONDITIONER-AUTO; SR5 TRAIL EDITION&AIR CONDITIONER-AUTO; TRD OFF ROAD&AIR CONDITIONER-AUTO; TRD PRO PACKAGE&AIR CONDITIONER-AUTO; VENTURE SPECIAL EDITION&AIR CONDITIONER-AUTO
55961BNOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM2#,4#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
GRAY,TRIM1#
BLACK,TRIM2#,4#
SAND BEIGE,TRIM4#
BLACK,TRIM2#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
8202WIRING & CLAMP
8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)
9010508120
main90105-08120
9010508460
main90105-08460
9011906951
main90119-06951
9017906278
main90179-06278
9018305033
main90183-05033
9046712080
main90467-12080
9167380616
main91673-80616
9356855014
main93568-55014
9415080600
main94150-80600
9415180800
main94151-80800
9433215000
main94332-15000
29 parts on this diagram · 10 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota 4RUNNER
This section contains 76 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota 4RUNNER. Key components include: PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, PANEL SUB-ASSY, INSTRUMENT, LOWER, SPACER, INSTRUMENT PANEL, NO.1.
