Toyota 4RUNNER — HORN

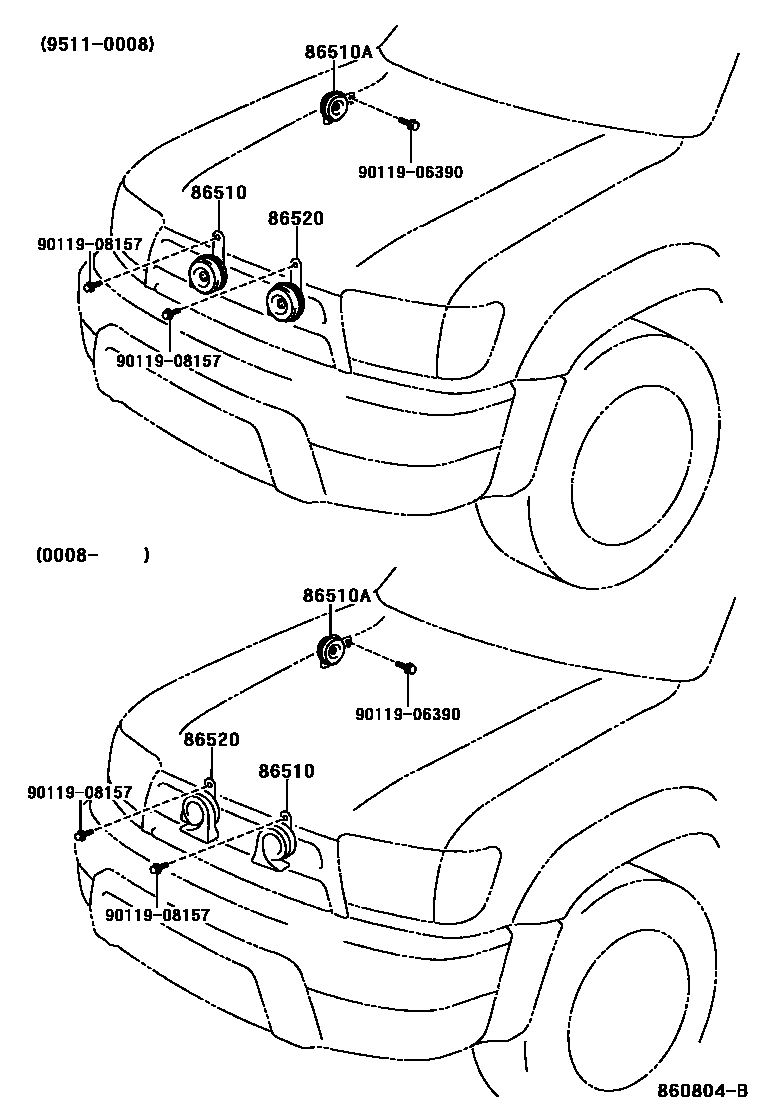

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-28090i199708-200008
DENSO
main86510-35050i199511-199708
DENSO
main86510-35060i199511-199708
MARUKO
main86510-35120i200008
DENSO
main86510-60180i199708-200008
MARUKO
main86510-60190i200008
MARUKO
86510AHORN ASSY, SECURITY
main86510-35090i199807
86520HORN ASSY, LOW PITCHED
main86520-28080i199708-200008
DENSO
main86520-35050i199511-199708
DENSO
main86520-35060i199511-199708
MARUKO
main86520-35130i200008
DENSO
main86520-60140i199708-200008
MARUKO
main86520-60160i200008
MARUKO
9011906390
main90119-06390
9011908157
main90119-08157

5 parts on this diagram · 1 diagram in section

HORN for Toyota 4RUNNER

This section contains 5 genuine Toyota parts for the HORN system of the Toyota 4RUNNER. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED.
