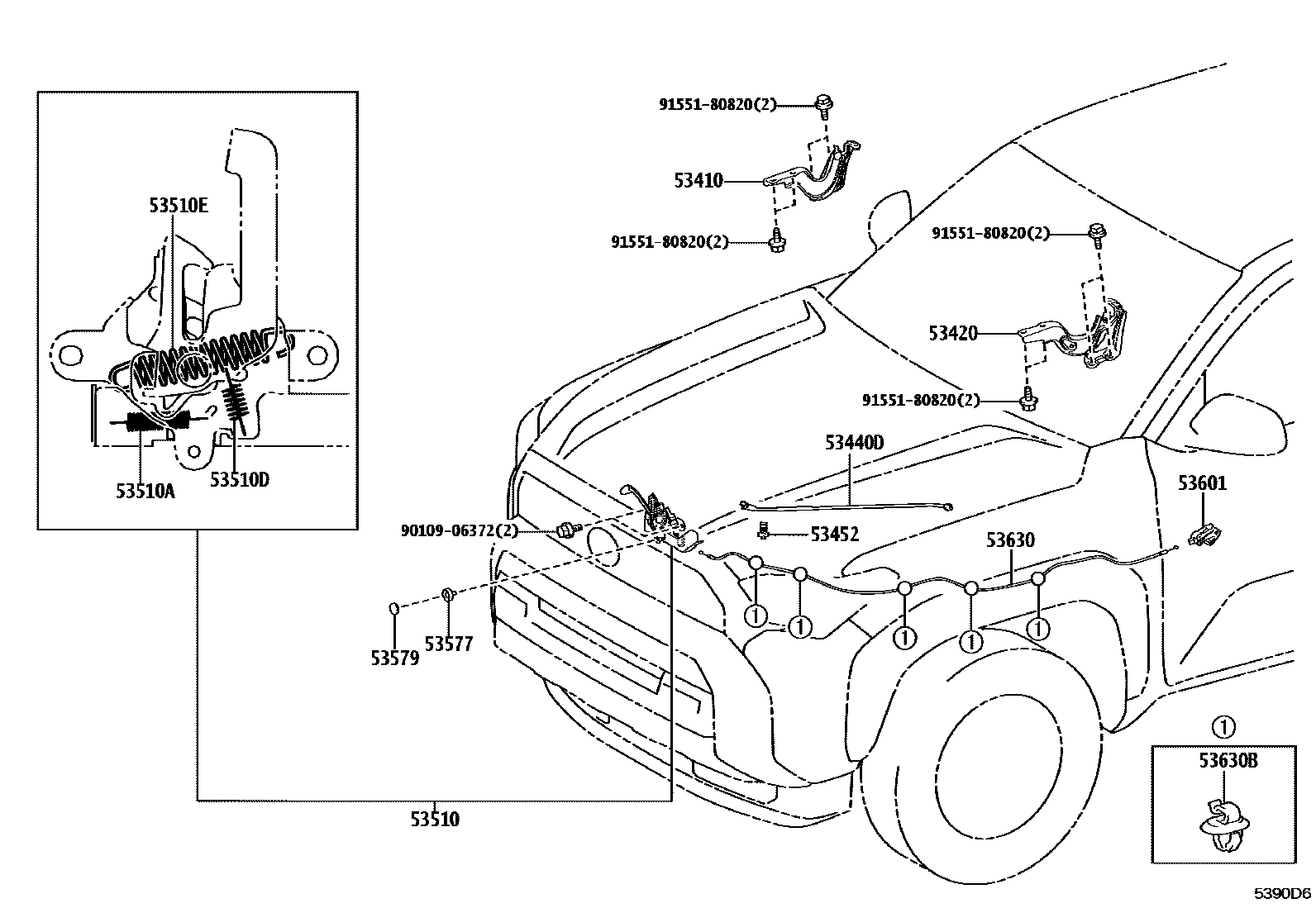

Toyota 4RUNNER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-35170i202412

53420HINGE ASSY, HOOD, LH

main53420-35170i202412

53440DSUPPORT ASSY, HOOD

main53440-35020i202412

53452HOLDER, HOOD STAY

main53452-60020i202412

53510LOCK ASSY, HOOD

main53510-35280i202412

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i202412

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063i202412

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067i202412

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010i202412

53579CAP, HOOD LOCK NUT

main53579-50010i202412

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-62010-C0i202412

BLACK,TRIM1#,2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-35120i202412

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×5i202412

9010906372

main90109-06372

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota 4RUNNER

This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota 4RUNNER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, HOLDER, HOOD STAY, LOCK ASSY, HOOD.
