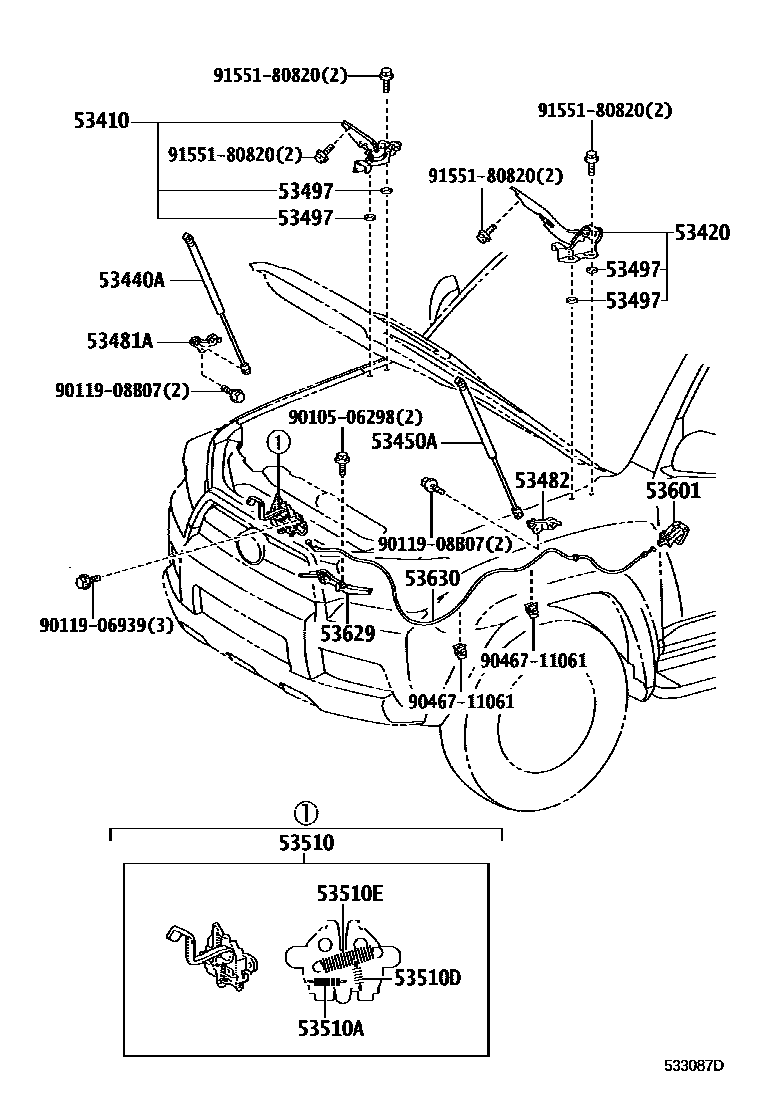

Toyota 4RUNNER — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-35120i200908-201308

main53410-35160i201912

53420HINGE ASSY, HOOD, LH

main53420-35120i200908-201108

main53420-35160i201912

53440ASUPPORT ASSY, HOOD, RH

main53440-0W230i200908-201108

53450ASUPPORT ASSY, HOOD, LH

main53450-0W190i200908-201108

53481ABRACKET, HOOD SUPPORT, RH

main53481-60010i200908-201108

53482BRACKET, HOOD SUPPORT, LH

main53482-60010i200908-201108

53497PAD, HOOD HINGE, NO.1

main53497-50020×4i200908-201108

T=1.0

53510LOCK ASSY, HOOD

main53510-35260i200908-201308

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i200908-201308

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063i200908-201108

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067i200908-201108

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B7i200908-201308

GRAY,TRIM1#

main53601-52010-C0i200908-201308

BLACK,TRIM2#

main53601-52010-C1i201612-201908

BLACK,TRIM2#,4#

main53601-52010-E6i200908-201108

SAND BEIGE,TRIM4#

53629COVER, HOOD LOCK CONTROL CABLE

main53629-60090i200908-201308

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-35100i200908-201108

9010506298

main90105-06298

9011906939

main90119-06939

9011908B07

main90119-08B07

9046711061

main90467-11061

9155180820

main91551-80820

19 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota 4RUNNER

This section contains 19 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota 4RUNNER. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, RH, SUPPORT ASSY, HOOD, LH, BRACKET, HOOD SUPPORT, RH.
