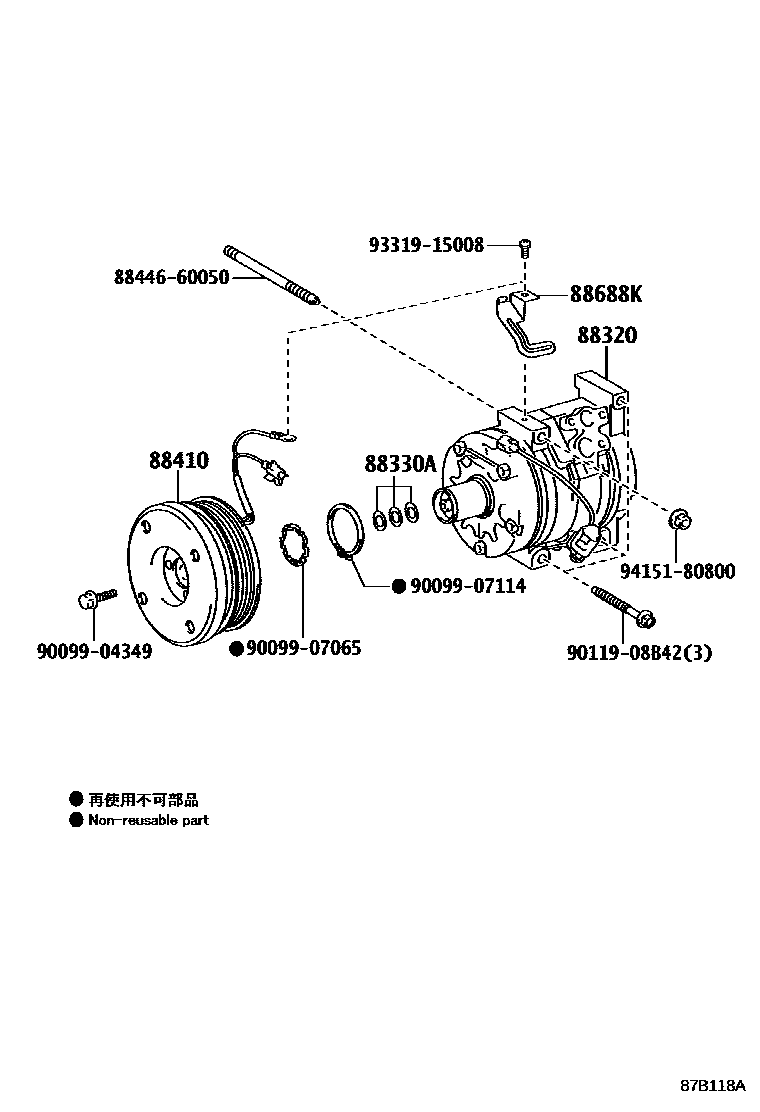

Toyota 4RUNNER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-35780iGRN28#202008

main88320-6A540iGRN28#200908-201308

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iTRN28#200908-201108

88410CLUTCH ASSY, MAGNET

main88410-2F010iGRN28#200908-201308

main88410-60450iGRN28#202008

main88410-6A140iTRN28#200911-201108

88688KBRACKET, COOLER COMPRESSOR

main88688-6B260iGRN28#201908

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
