Toyota 4RUNNER — HEATING & AIR CONDITIONING - COMPRESSOR

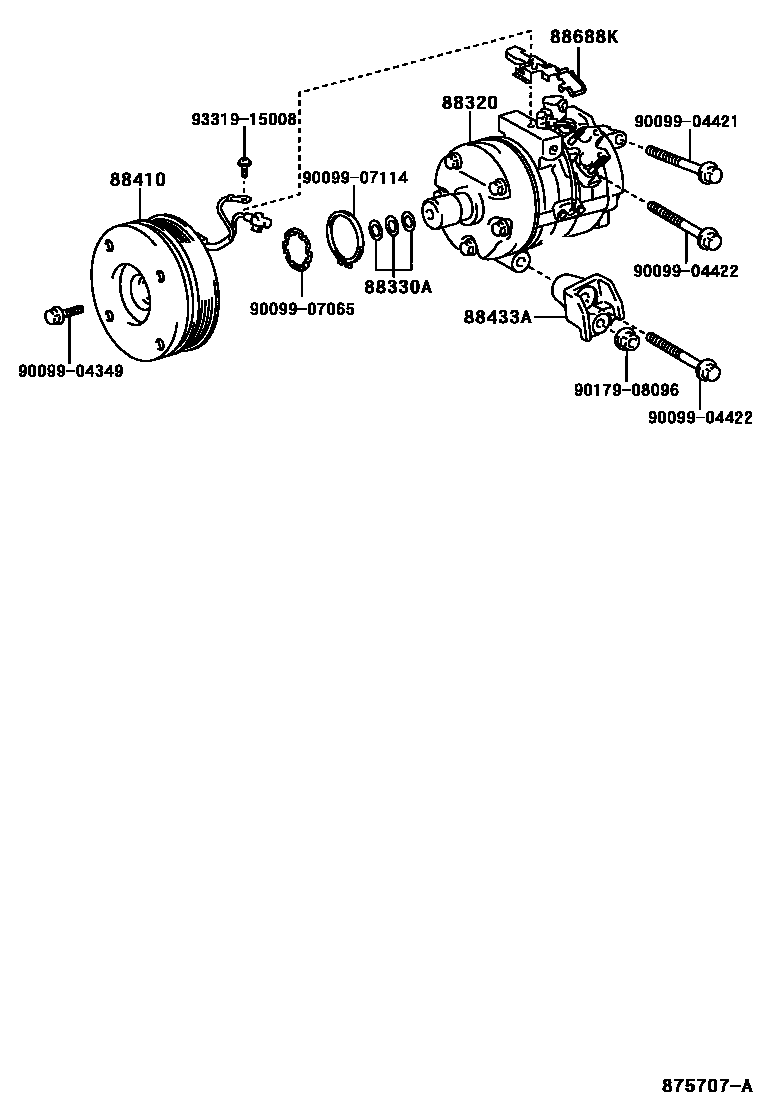

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-35690i200208-200307

main88320-35700i200211-200508

main88320-6A110i200307-200412

main88320-6A111i200412-200508

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200208-200508

88410CLUTCH ASSY, MAGNET

main88410-0C040i200208-200508

main88410-35430i200211-200508

88433ASTAY, COMPRESSOR

main88433-35020i200208-200508

88688KBRACKET, COOLER COMPRESSOR

main88688-35600i200208-200508

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907065

main90099-07065

9009907114

main90099-07114

9017908096

main90179-08096

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota 4RUNNER

This section contains 14 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota 4RUNNER. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, STAY, COMPRESSOR, BRACKET, COOLER COMPRESSOR.
