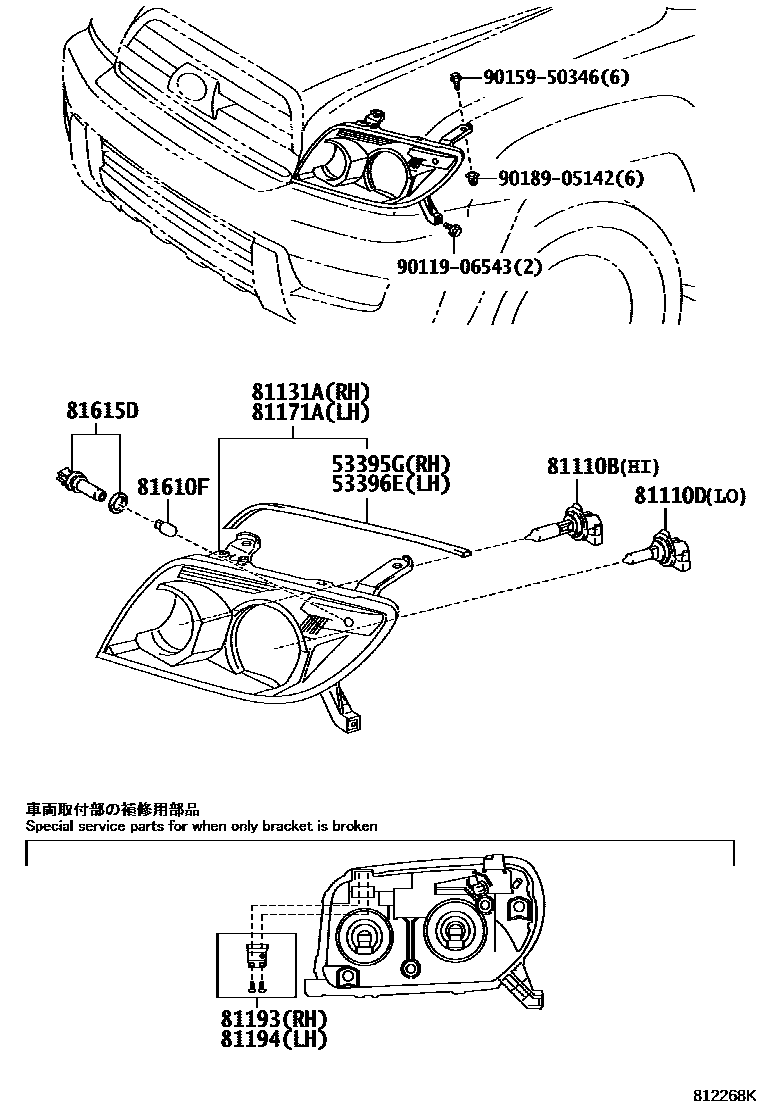

Toyota 4RUNNER — HEADLAMP

53395GSEAL, HOOD TO FRONT END PANEL

main53395-35010i200508

main53395-35020i200208-200508

53396ESEAL, HOOD TO FRONT END PANEL, NO.2

main53396-35010i200208-200508

main53396-35030i200508

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i200208-200508

12V 65W

main90981-13046×2i200712

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2i200208-200508

12V 51W,HALOGEN

main90981-13075×2i200712

12V 55W,HALOGEN

81131AUNIT, HEADLAMP, RH

main81130-35420i200208-200408

main81130-35440i200508-200711

main81130-35441i200712

main81130-35470i200508-200711

APPEARANCE PACKAGE SPORT

main81130-35471i200712

APPEARANCE PACKAGE SPORT

81171AUNIT, HEADLAMP, LH

main81170-35400i200208-200508

main81170-35420i200508-200711

main81170-35421i200712

main81170-35450i200508-200711

APPEARANCE PACKAGE SPORT

main81170-35451i200801

USA 50 STATES SPEC&URBAN RUNNER

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-35010i200208-200408

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-35010i200208-200508

81610FBULB(FOR CLEARANCE LAMP)

main90981-15012×2i200208-200408

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2i200208-200408

9011906543

main90119-06543

9015950346

main90159-50346

9018905142

main90189-05142

13 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota 4RUNNER

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota 4RUNNER. Key components include: SEAL, HOOD TO FRONT END PANEL, SEAL, HOOD TO FRONT END PANEL, NO.2, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), CORD, HEADLAMP.
