Toyota 4RUNNER — HEADLAMP

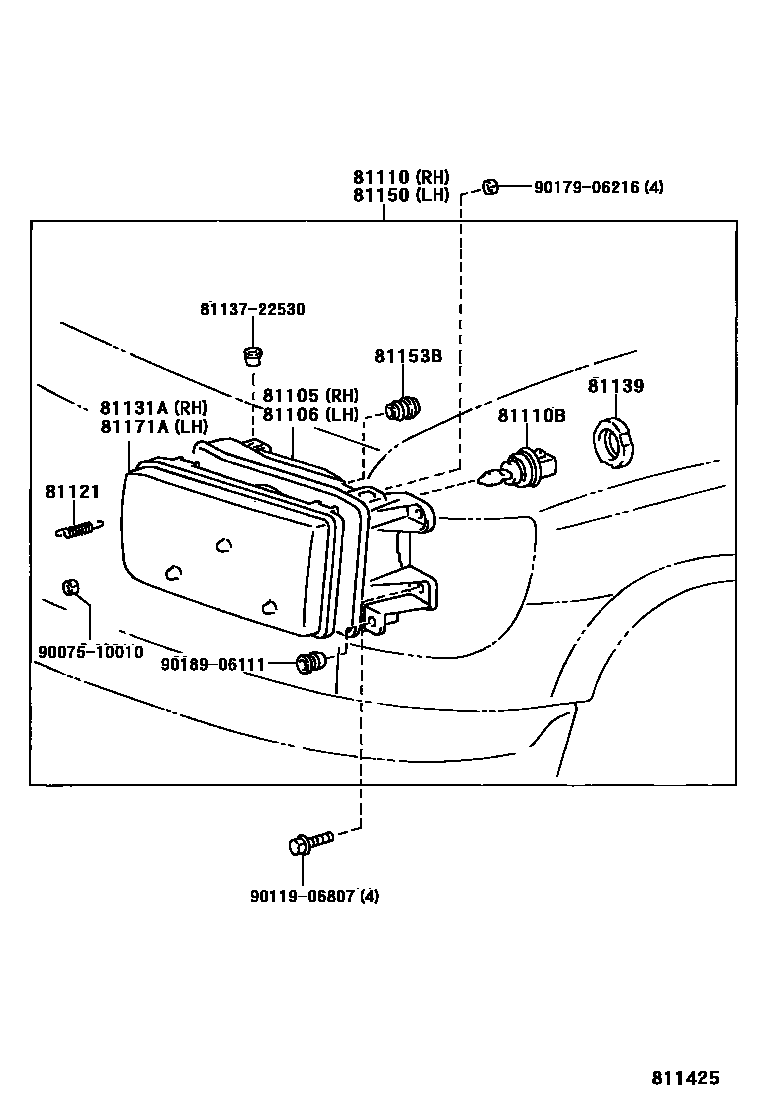

Parts diagram

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-35230i199511-199609

main81105-35231i199609

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-35210i199511-199609

main81106-35211i199609

81110HEADLAMP ASSY, RH

main81110-35230i199511-199609

main81110-35231i199609-199807

main81110-35320i199807

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2i199511

12V 60/55W,HALOGEN

81121SPRING, HEADLAMP TENSION

main90075-25513×2i199511-199807

81131AUNIT, HEADLAMP, RH

main81130-35230i199511-199807

main81130-35320i199807

81139COVER, HEADLAMP SOCKET

main90075-65005×2i199511-199807

main90075-65012×2i199807

81150HEADLAMP ASSY, LH

main81150-35210i199511-199609

main81150-35211i199609-199807

main81150-35300i199807

81153BBEARING, HEADLAMP

main81128-22630×6i199511

81171AUNIT, HEADLAMP, LH

main81170-35210i199511-199807

main81170-35300i199807

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510010

main90075-10010

9011906807

main90119-06807

9017906216

main90179-06216

9018906111

main90189-06111

15 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota 4RUNNER

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota 4RUNNER. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SPRING, HEADLAMP TENSION.
