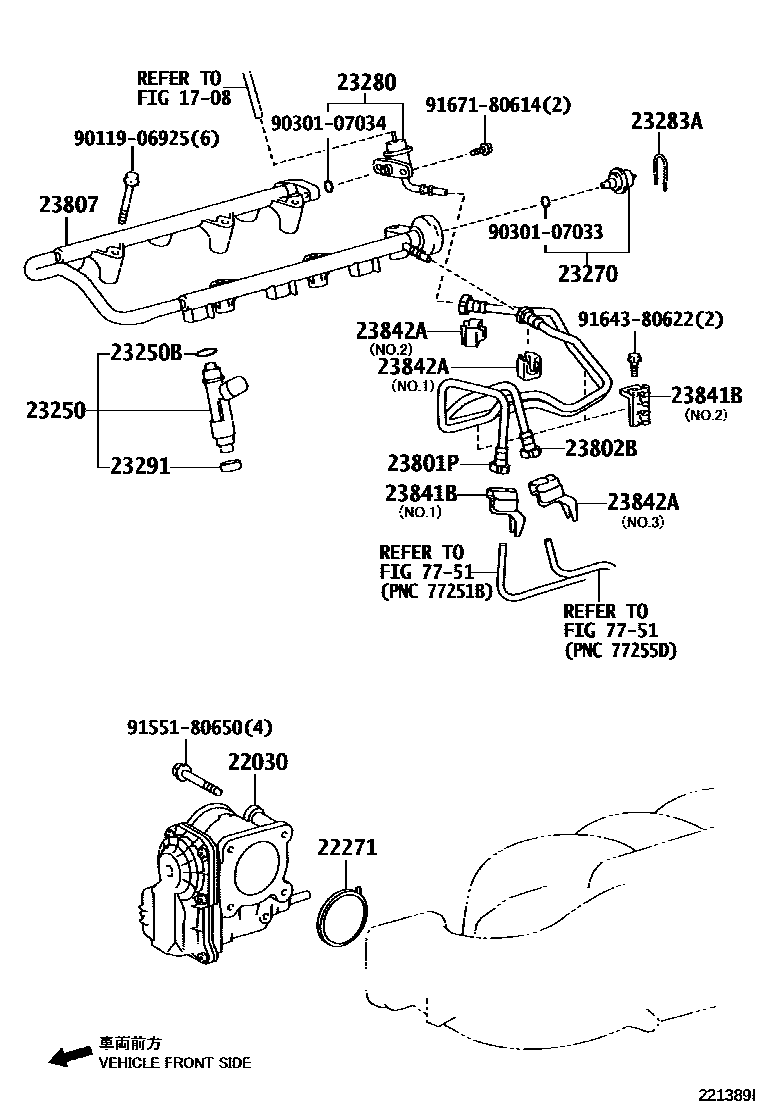

Toyota 4RUNNER — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31010i1GRFE..GRN21#..5FC200211-200508

main22030-50170i2UZFE..UZN21#200208-200411

main22030-50200i2UZFE..UZN21#200411-200508

22271GASKET, THROTTLE BODY

main22271-31011i1GRFE..GRN21#200211-200408

main22271-31012i1GRFE..GRN21#200410-200508

main22271-50042i2UZFE..UZN21#200208-200411

main22271-50050i2UZFE..UZN21#200508

23250INJECTOR ASSY, FUEL

main23209-39015×6i1GRFE..GRN21#200211-200508

main23209-39075×6i1GRFE..GRN21#200508-200908

AISIN

main23209-50040×8i2UZFE..UZN21#200208-200411

main23209-50080×8i2UZFE..UZN21#200411-200508

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×8i2UZFE..UZN21#200208-200508

main90301-07033×6i1GRFE..GRN21#..5FC200211-200508

main90301-07037×8i2UZFE..UZN21#200607

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i1GRFE..GRN21#200211-200408

sub23270-31080

main23270-50010i2UZFE..UZN21#200508-200904

main23270-50011i2UZFE..UZN21#200904

sub23270-50012

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31010i1GRFE..GRN21#200508

main23280-50050i2UZFE..UZN21#200508

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GRN21#200508

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i1GRFE..GRN21#200508

main23291-41010×8i2UZFE..UZN21#200508

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31070i1GRFE..GRN21#200508

main23801-50021i2UZFE..UZN21#200208-200411

main23801-50070i2UZFE..UZN21#200411-200508

main23801-50071i2UZFE..UZN21#200606

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31020i1GRFE..GRN21#200211-200408

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31010i1GRFE..GRN21#..5FC200211-200508

main23807-50051i2UZFE..UZN21#200208-200306

main23807-50052i2UZFE..UZN21#200306-200411

main23807-50080i2UZFE..UZN21#200508

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1GRFE..GRN21#200705

NO.1

main23841-28010i2UZFE..UZN21#200208-200508

main23841-31030×2i1GRFE..GRN21#..5FC200211-200508

NO.2

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GRN21#200211-200408

NO.1

main23842-31030i1GRFE..GRN21#200211-200408

NO.2

main23842-50010i1GRFE..GRN21#200211-200408

NO.3

7751

9011906925

main90119-06925

9030107033

main90301-07033

9030107034

main90301-07034

9155180650

main91551-80650

9164380622

main91643-80622

9167180614

main91671-80614

21 parts on this diagram · 5 diagrams in section
