Toyota 4RUNNER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

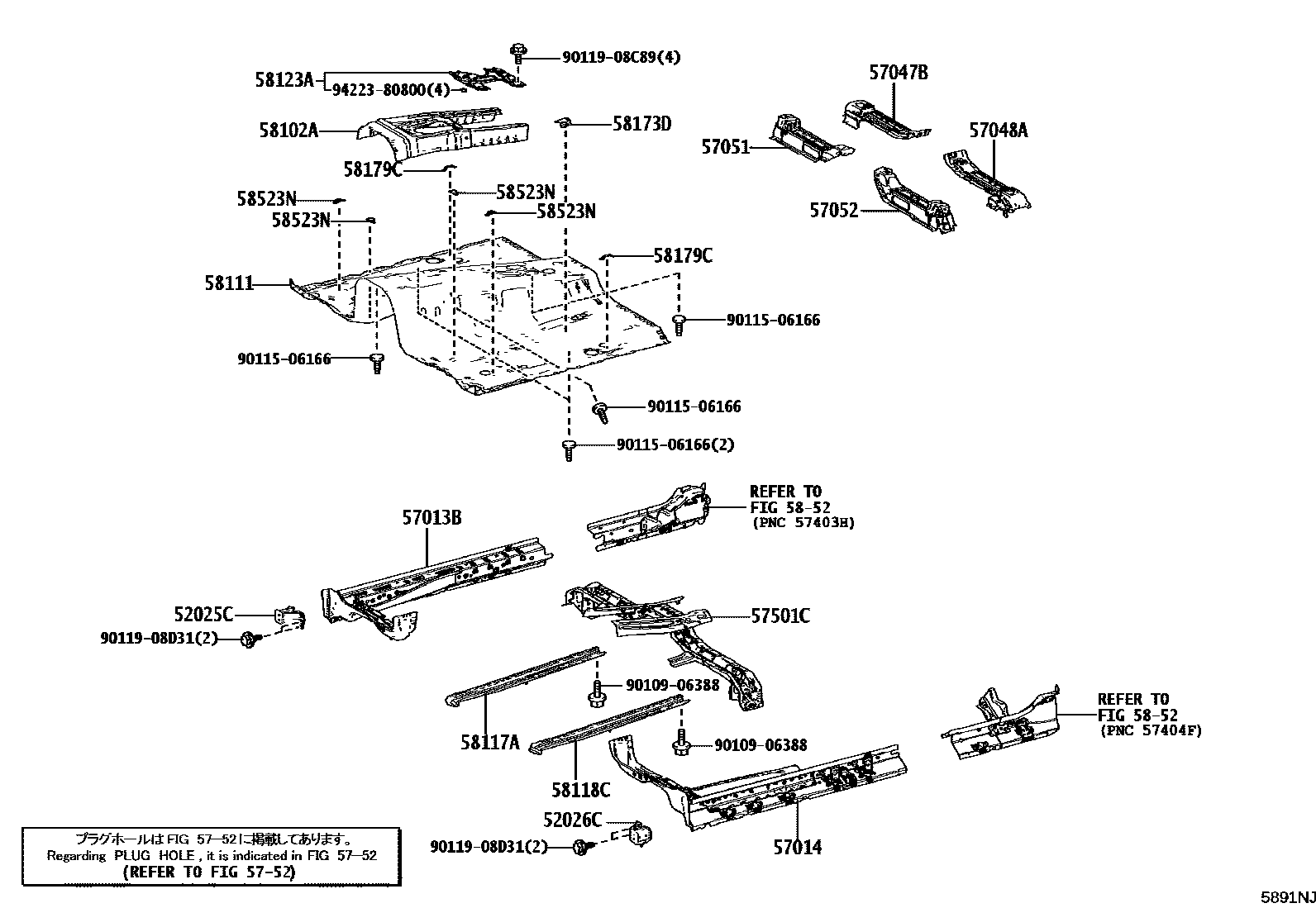

Parts diagram

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070i202412

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070i202412

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60060i202412

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60060i202412

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-35050i202412

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-35020i202412

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-35060i202412

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-35060i202412

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60040i202412

5752HOLE PLUG

→ Go to FIG 57-52

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130i202412

58111PAN, FRONT FLOOR

main58111-60G40i202412

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050i202412

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-60040i202412

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-35080i202412

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-60010i202412

58179CBRACKET, CLAMP FLOOR

main58179-60040×2i202412

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

58523NBRACKET, FLOOR CARPET SET

main58523-60020×4i202412

9010906388

main90109-06388

9011506166

main90115-06166

9011908C89

main90119-08C89

9011908D31

main90119-08D31

9422380800

main94223-80800

24 parts on this diagram · 4 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota 4RUNNER

This section contains 33 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota 4RUNNER. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, STEP ASSY, POWER LIFT, RH, PLATE, STEP, RH, PLATE, STEP, LH.
