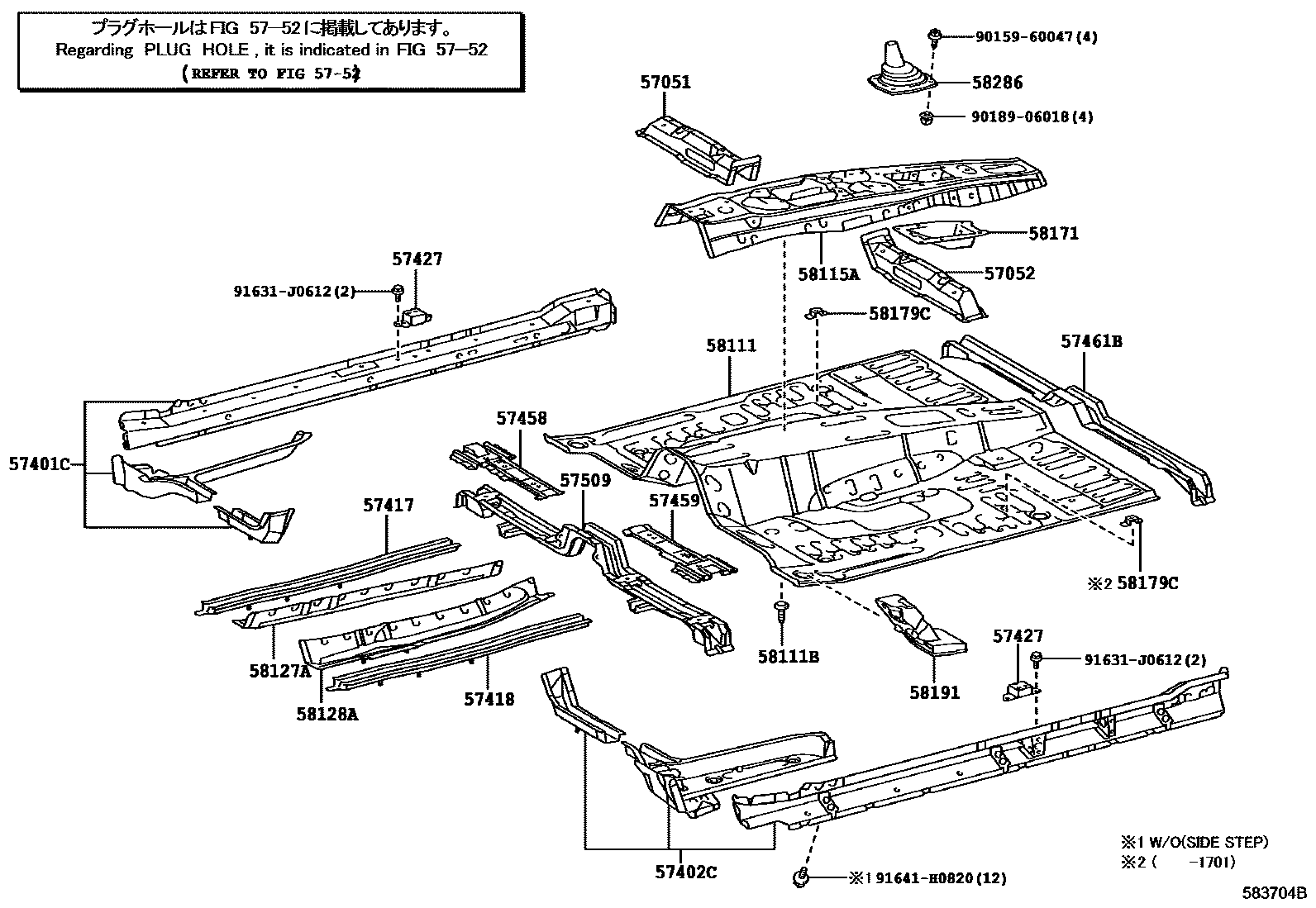

Toyota 4RUNNER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459MEMBER, FRONT FLOOR CROSS, NO.2
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
5752
58111PAN, FRONT FLOOR
58111BBOLT, WELD(FOR FRONT FLOOR PAN)
58115AREINFORCEMENT, FRONT FLOOR PANEL
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
LIMITED PACKAGE
9015960047
main90159-60047
9018906018
main90189-06018
91631J0612
main91631-J0612
91641H0820
main91641-H0820
25 parts on this diagram · 3 diagrams in section
