Toyota 4RUNNER — FRONT DOOR WINDOW REGULATOR & HINGE

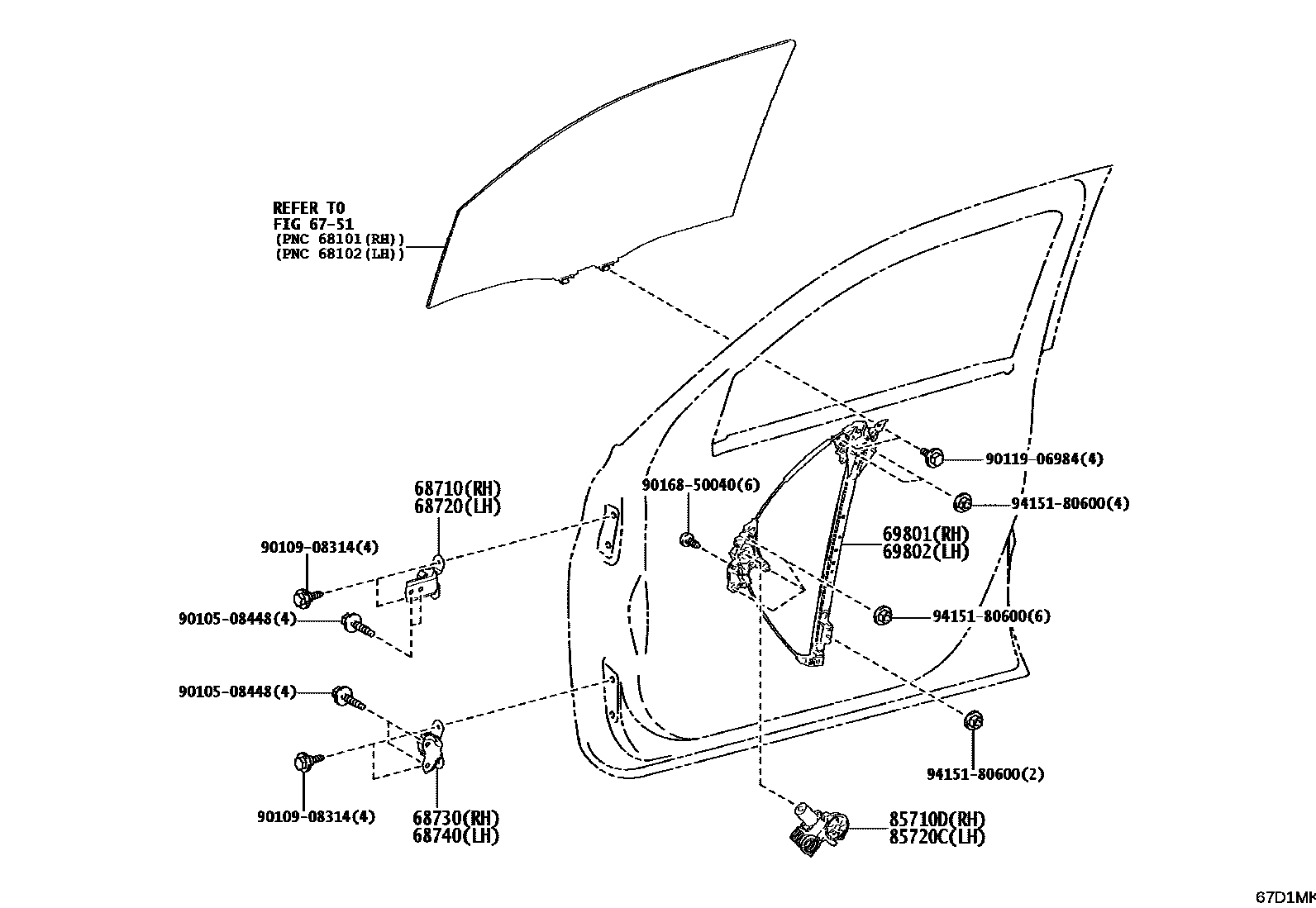

Parts diagram

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i202412

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i202412

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i202412

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i202412

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35170i202412

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35160i202412

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35210i202412

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35190i202412

9010508448

main90105-08448

9010908314

main90109-08314

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota 4RUNNER

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota 4RUNNER. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
