Toyota 4RUNNER — FRONT DOOR PANEL & GLASS

5752HOLE PLUG

→ Go to FIG 57-52

62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-35020-B0i200208-200408

STONE,TRIM1#; STONE,TRIM12,13

main62311-35020-E0i200208-200408

FAWN,TRIM4#

62312CWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-35020-B0i200208-200408

STONE,TRIM1#; STONE,TRIM12,13

main62312-35020-E0i200208-200508

FAWN,TRIM4#

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-35510i200208-200503

main67001-35511i200504-200506

main67001-35512i200507-200508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-35530i200208-200503

main67002-35531i200504-200506

main67002-35532i200507-200508

67111PANEL, FRONT DOOR, OUTER RH

main67111-35170i200208-200503

main67111-35171i200504-200506

67112PANEL, FRONT DOOR, OUTER LH

main67112-35170i200208-200503

main67112-35171i200508-200908

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-35060i200208-200508

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-35060i200208-200408

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-35010i200208-200408

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD); AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER); AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-35010supersedes 67832-35110i200208-200408

AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD); AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER); AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD)

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-35090i200208-200508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-35080i200208-200408

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-35010×2i200211-200408

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-35210supersedes 68101-35230i200208-200408

*UVCTT,T=4.0,GREEN; *UVCTT,T=4.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main68101-35240i200508

*UVCTT,T=5.0,GREEN; *UVCTT,T=5.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-35210supersedes 68102-35230i200208-200508

*UVCTT,T=4.0,GREEN; *UVCTT,T=4.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main68102-35240i200508

*UVCTT,T=5.0,GREEN; *UVCTT,T=5.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

68141CRUN, FRONT DOOR GLASS, RH

main68141-35090i200208-200308

main68141-35091i200308-200408

main68141-35110i200508

68151CRUN, FRONT DOOR GLASS, LH

main68151-35080i200208-200308

main68151-35081i200308-200408

main68151-35100i200508

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-35060i200208-200408

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-35060i200208-200408

68610BCHECK ASSY, FRONT DOOR, RH

main68610-35040i200208-200408

68620CHECK ASSY, FRONT DOOR, LH

main68620-35020i200208-200508

75921CTAPE, BLACK OUT, NO.1 RH

main75921-35010i200208-200508

75922MTAPE, BLACK OUT, NO.1 LH

main75922-35010i200208-200408

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-35540i200508-200602

main75975-35541i200603

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-35550i200208-200408

main75976-35551i200603

75985ESTRIPE, FRONT DOOR OUTSIDE, RH

main75985-3D320i200508-200602

main75985-3D321i200603

75986FSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-3D200i200508-200602

main75986-3D201i200603

9010908295

main90109-08295

9011906956

main90119-06956

9016640003

main90166-40003

9017906159

main90179-06159

9054109131

main90541-09131

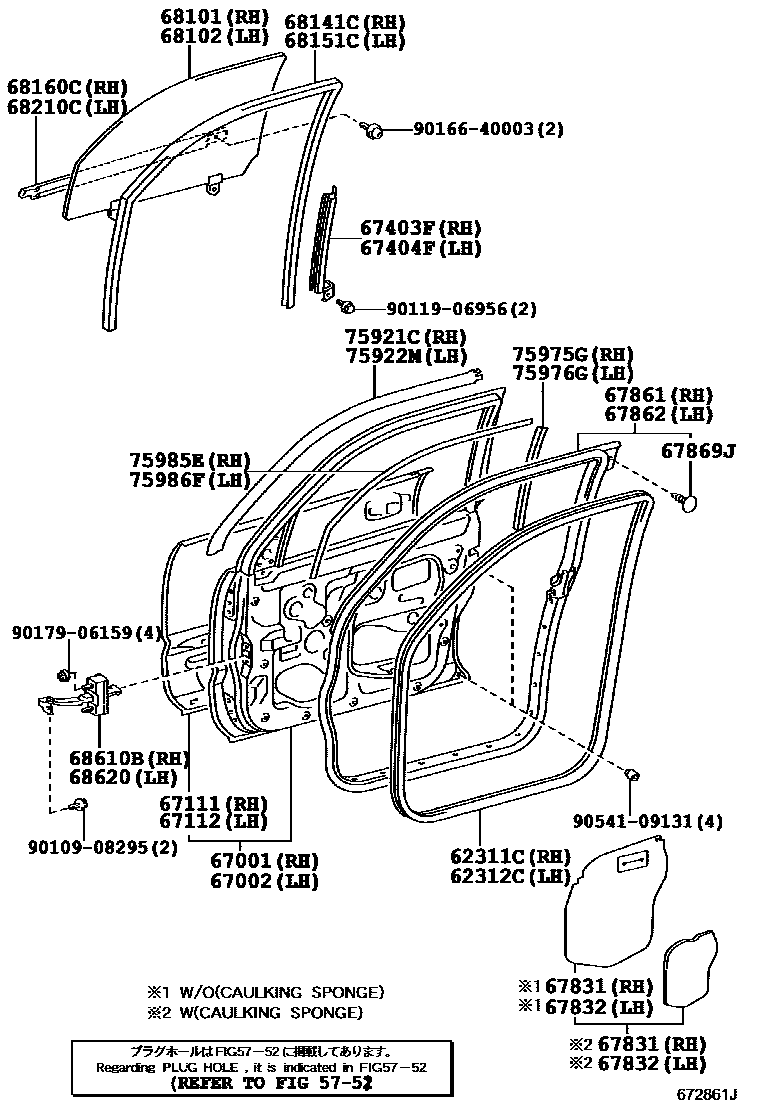

33 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota 4RUNNER

This section contains 48 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota 4RUNNER. Key components include: HOLE PLUG, WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH, WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH, PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH.
