Toyota 4RUNNER — FRONT CLEARANCE LAMP

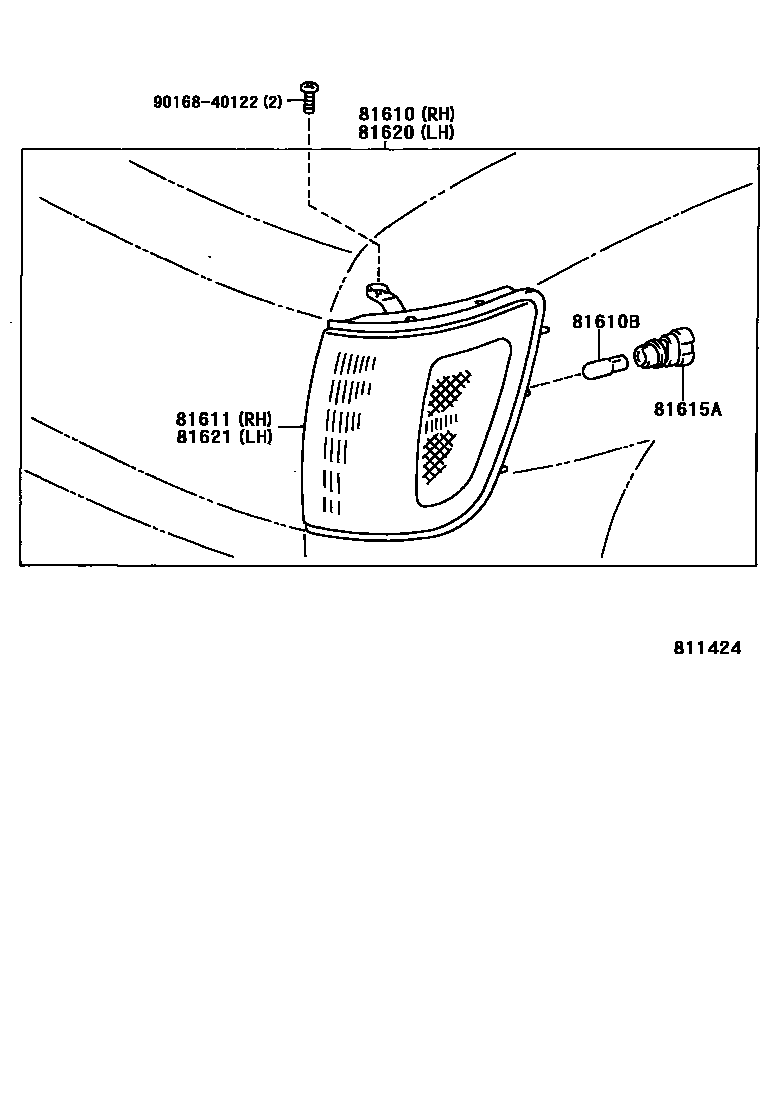

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-35310i199511-199701

main81610-35311i199701-199807

main81610-35330i199807

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×2i199511

12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-35310i199511-199701

main81611-35311i199701-199807

main81611-35330i199807

81615ASOCKET PLUG, CLEARANCE LAMP

main90075-99109×2i199511

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-35310i199511-199701

main81620-35311i199701-199807

main81620-35340i199807

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-35310i199511-199701

main81621-35311i199701-199807

main81621-35340i199807

9016840122

main90168-40122

7 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota 4RUNNER

This section contains 7 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota 4RUNNER. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET PLUG, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
