Toyota 4RUNNER — FRONT BUMPER & BUMPER STAY

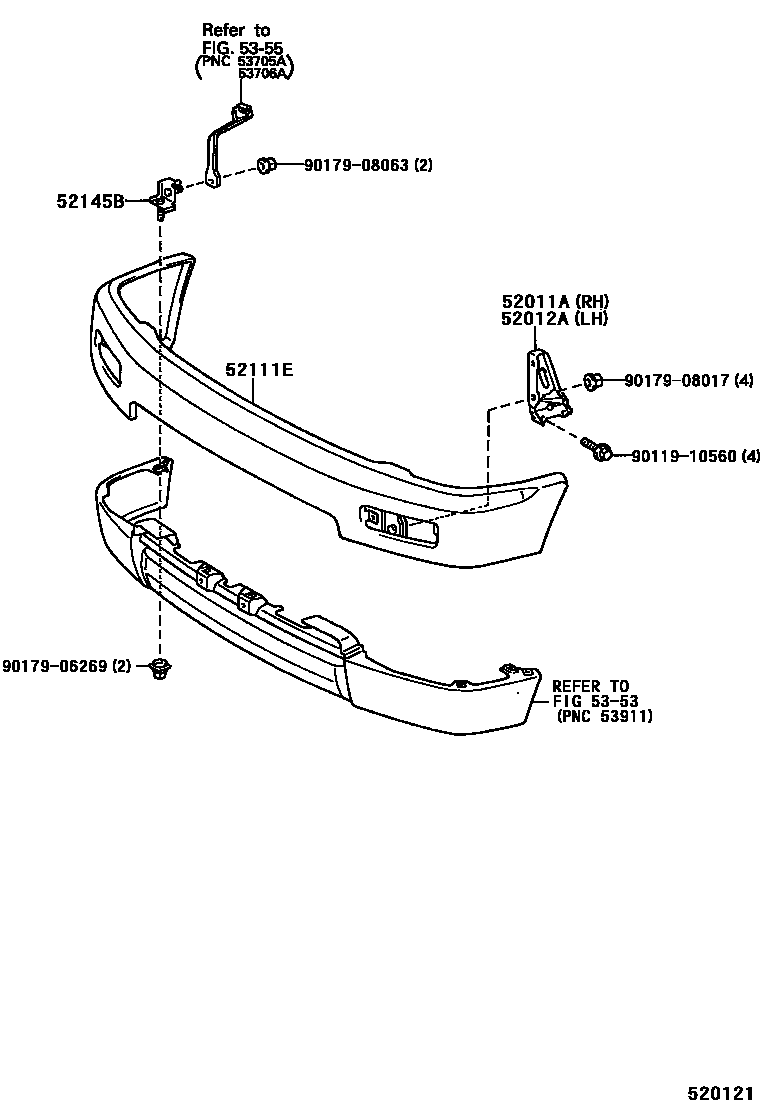

Parts diagram
52011AARM SUB-ASSY, FRONT BUMPER, RH
main52011-35070i199807
main52141-35050i199511-199807
52012AARM SUB-ASSY, FRONT BUMPER, LH
main52012-35070i199807
main52142-35050i199511-199807
52111EBAR, FRONT BUMPER
main52101-35290i199511-199807
NO PAINT REQ.; NO PAINT REQ.,DARK GRAY
main52101-35300i199511-199807
PLATED
main52101-35320i199511-199807
PLATED
main52101-35330i199711-199712
NO PAINT REQ.,40TH ANNIVERSARY PACKAGE
main52101-35530i199807-200208
PLATED
main52101-35590i199906-200208
PLATED,W(LARGE FENDER)
main52101-35660i200205-200208
PLATED,W(THEFT-DETERRENT LABEL)
main52101-35680i200205-200208
PLATED,W(LARGE FENDER & THEFT-DETERRENT LABEL)
main52101-35919i199807-200205
PAINT REQ.
main52101-35920i200107-200207
PAINT REQ.,W(LARGE FENDER)
main52101-35926i200205-200208
PAINT REQ.
main52101-35927i200205-200208
PAINT REQ.,W(LARGE FENDER)
52145BBRACKET, FRONT BUMPER SIDE MOUNTING
main52145-35030i199511-199807
RH
main52145-35040i199807
RH
main52146-35030i199511-199807
LH
main52146-35040i199807
LH
5353HOOD & FRONT FENDER
→ Go to FIG 53-53
9011910560
main90119-10560
9017906269
main90179-06269
9017908017
main90179-08017
9017908063
main90179-08063

9 parts on this diagram · 3 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 4RUNNER

This section contains 32 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 4RUNNER. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, REINFORCEMENT SUB-ASSY, FRONT BUMPER, BAR, FRONT BUMPER.
