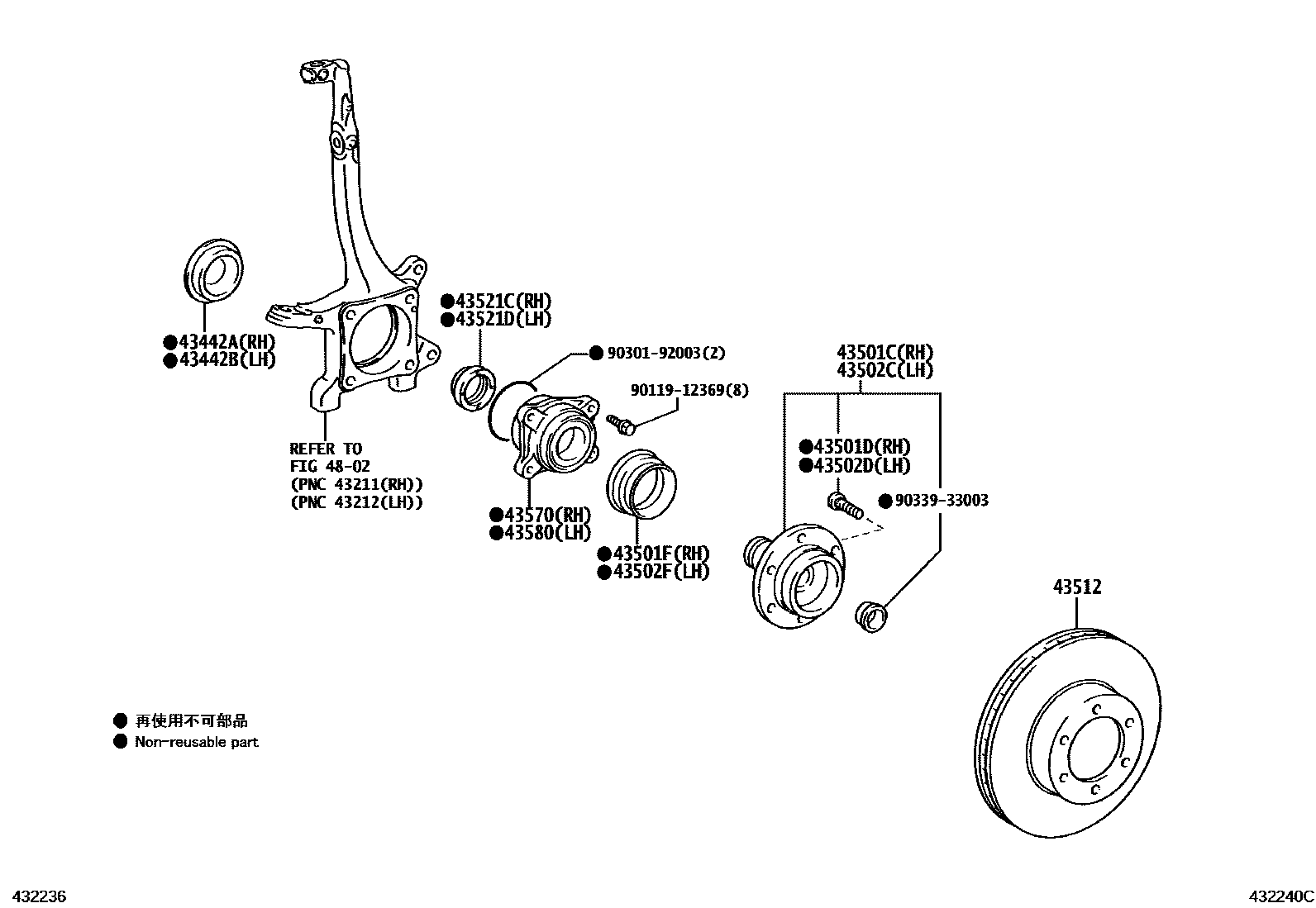

Toyota 4RUNNER — FRONT AXLE HUB

0001 1 0002 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-35060iGRN280200908-201308

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-35060iGRN280201308-201908

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-35220iTRN280200908-201108

main43502-60200iGRN285200908-201006

main43502-60201iTRN285201007-201108

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iTRN28#200908-201108

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001iGRN28#201908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-35220iGRN280201308-201908

main43502-60200iGRN285200908-201006

main43502-60201iGRN285201308-201908

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iTRN28#200908-201108

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001iTRN28#200908-201108

43512DISC, FRONT

main43512-60190×2iTRN28#200908-201108

main43512-60191×2iGRN28#201308-201908

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-35010iTRN280200908-201108

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-35010iTRN280200908-201108

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010iGRN28#,TRN28#200908-201108

main43570-60011iGRN28#201109-201308

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010iGRN28#,TRN28#200908-201108

main43570-60011iGRN28#201109-201308

4802

9011912369

main90119-12369

9030192003

main90301-92003

9033933003

main90339-33003

17 parts on this diagram · 2 diagrams in section
