Toyota 4RUNNER — FRONT AXLE HUB

0001 1 0002 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-35060iGRN210200208-200408

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-35060iGRN210,UZN210..5FC200208-200508

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-35210iGRN210,UZN210200508

sub43502-35220

main43502-60180iGRN215,UZN215..5FC200208-200508

sub43502-60200

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iGRN21#,UZN21#200208-200508

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001iGRN21#200208-200408

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-35210iGRN210200208-200408

sub43502-35220

main43502-60180iGRN215,UZN215..5FC200208-200508

sub43502-60200

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iGRN21#,UZN21#200508

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001iGRN21#200208-200408

43512DISC, FRONT

main43512-35320×2iGRN21#,UZN21#200208-200506

main43512-35321×2iGRN21#,UZN21#200506-200508

sub43512-35322

main43512-60150×2iGRN21#,UZN21#..SR5200301-200506

APPEARANCE PACKAGE SPORT

sub43512-60151

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-35010iGRN210200208-200408

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-35010iGRN210200208-200408

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010iGRN21#,UZN21#..5FC200208-200508

sub43570-60011

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010iGRN21#,UZN21#..5FC200208-200508

sub43570-60011

9011912369

main90119-12369

9030192003

main90301-92003

9033933003

main90339-33003

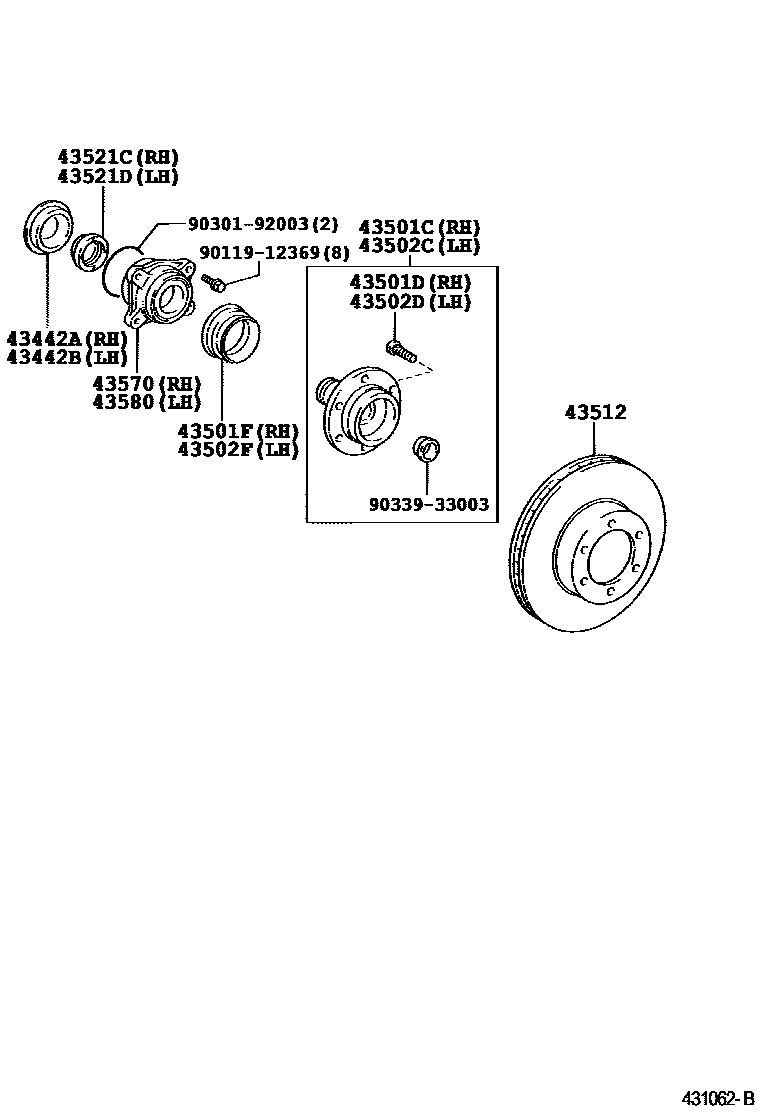

16 parts on this diagram · 2 diagrams in section
