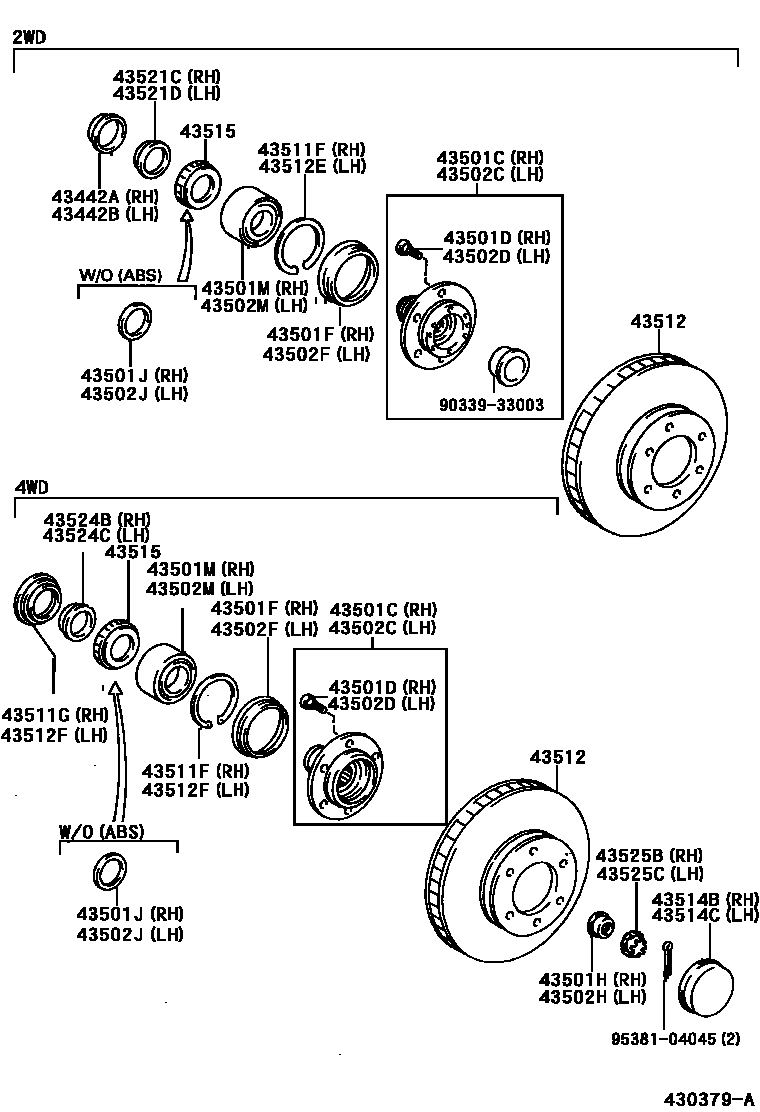

Toyota 4RUNNER — FRONT AXLE HUB
43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH
43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
sub90178-28002
43501JSPACER (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
sub90369-54002
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
sub90178-28002
43502JSPACER (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
sub90369-54002
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)
43512DISC, FRONT
W(16 INCH DISC WHEEL)
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43515ROTOR, SKID CONTROL, FRONT
43521CNUT, FRONT WHEEL ADJUSTING, RH
43521DNUT, FRONT WHEEL ADJUSTING, LH
43524BSPACER, FRONT WHEEL INNER BEARING, RH
43524CSPACER, FRONT WHEEL INNER BEARING, LH
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9033933003
main90339-33003
9538104045
main95381-04045
30 parts on this diagram · 1 diagram in section
