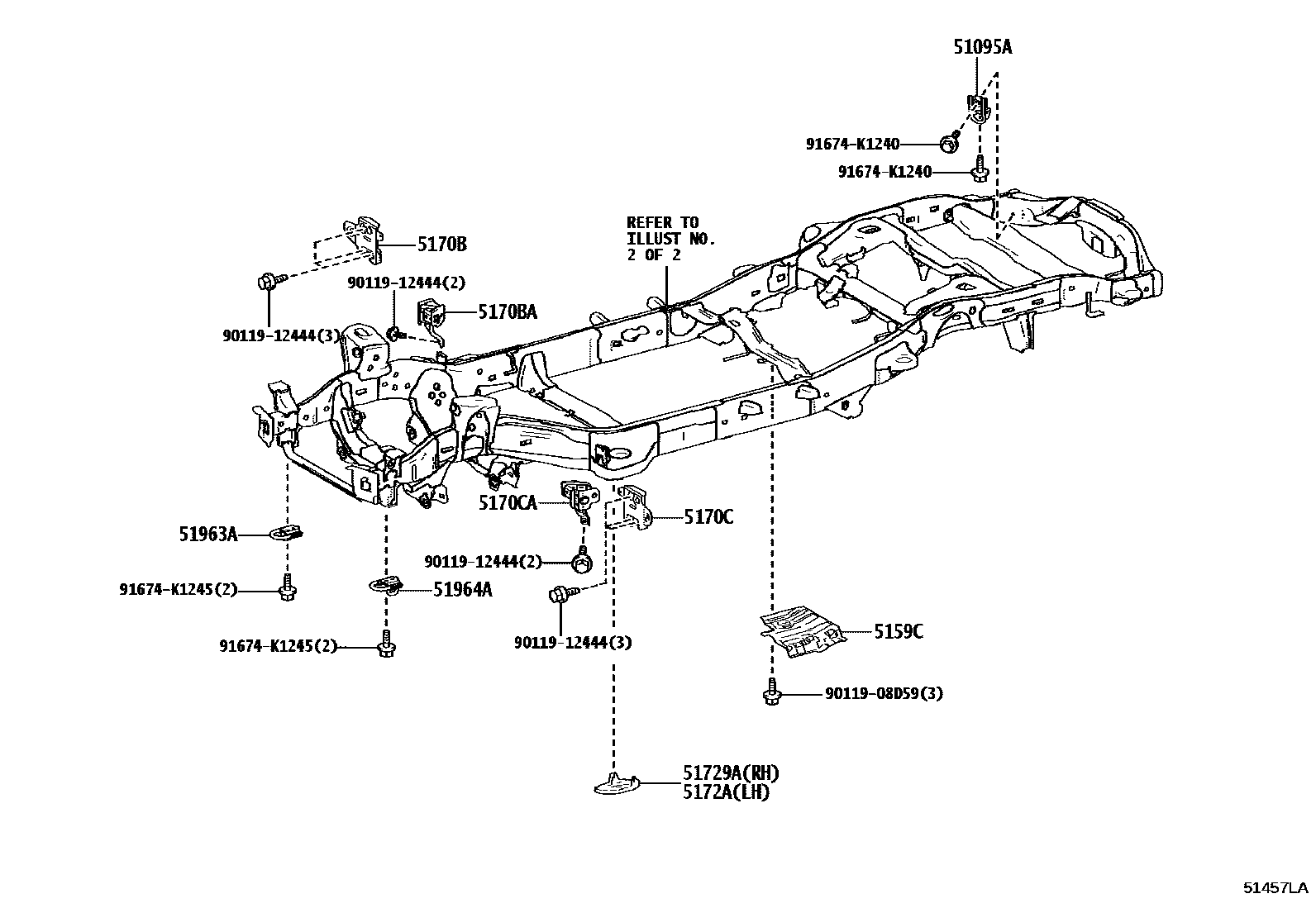

Toyota 4RUNNER — FRAME

0001 1 0002 1

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-35010iTZNA5#202412

5159CINSULATOR, FRAME CROSSMEMBER HEAT

main5159C-60020iTZNA5#202412

5170BREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.1 RH

main5170B-60020iTZNA5#202412

5170BAREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.2 RH

main5170D-60020iTZNA5#202412

5170CREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.1 LH

main5170C-60020iTZNA5#202412

5170CAREINFORCE SUB-ASSY, CAB MOUNTING BRACKET, NO.2 LH

main5170E-60020iTZNA5#202412

51729ACOVER, NO.2 CAB MOUNTING, RH

main51729-60020iTZNA5#202412

5172ACOVER, NO.2 CAB MOUNTING, LH

main5172A-60020iTZNA5#202412

51963AHOOK, TRANSPORT, FRONT RH

main51960-35010iTZNA5#202412

51964AHOOK, TRANSPORT, FRONT LH

main51960-35020iTZNA5#202412

9011908D59

main90119-08D59

9011912444

main90119-12444

91674K1240

main91674-K1240

91674K1245

main91674-K1245

14 parts on this diagram · 2 diagrams in section
