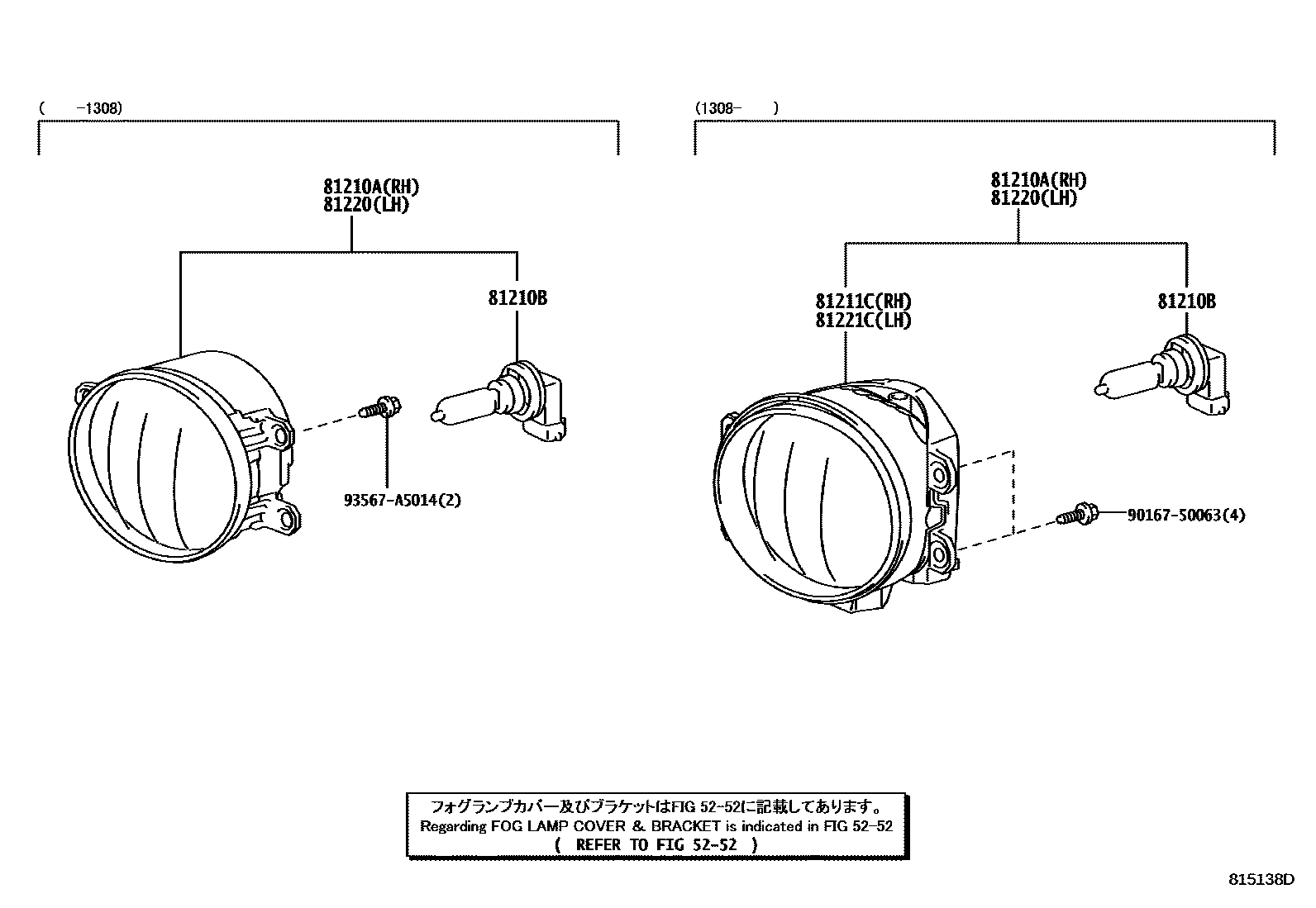

Toyota 4RUNNER — FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-0W050i200908-201308

main81210-12230i201308-201908

main81210-48051i202008

81210BBULB, FOG LAMP

main90981-13075×2i200908-201308

12V 55W,HALOGEN,PHILIPS

main90981-13081×2i200908-201308

12V 55W,HALOGEN,OSRAM

main90981-13090×2i201908-202008

12V 19W

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i201308-201908

81220LAMP ASSY, FOG, LH

main81220-0W040i200908-201308

main81220-12230i201308-201908

main81220-48051i202008

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i201308-201908

9016750063

main90167-50063

93567A5014

main93567-A5014

8 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota 4RUNNER

This section contains 10 genuine Toyota parts for the FOG LAMP system of the Toyota 4RUNNER. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
