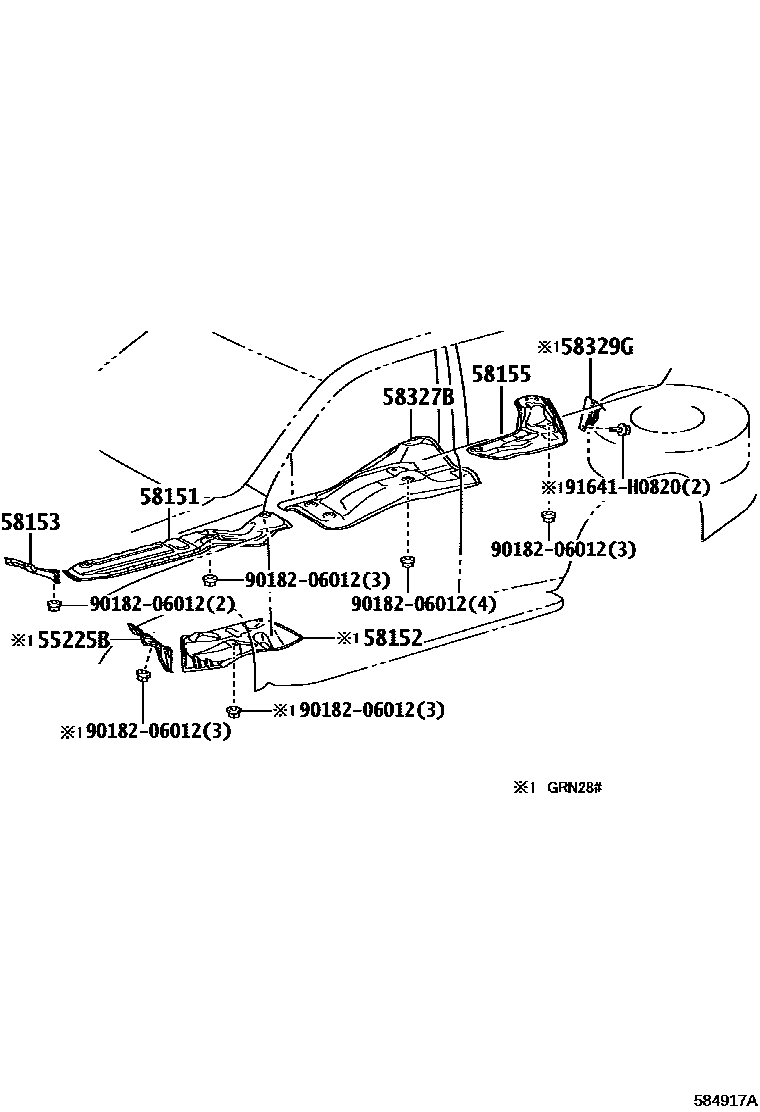

Toyota 4RUNNER — FLOOR INSULATOR
55225BINSULATOR, DASH PANEL HEAT
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58153INSULATOR, FRONT FLOOR HEAT, NO.2
58155INSULATOR, FRONT FLOOR HEAT, NO.3
58327BINSULATOR, MAIN MUFFLER HEAT
58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER
9018206012
main90182-06012
91641H0820
main91641-H0820
9 parts on this diagram · 1 diagram in section
FLOOR INSULATOR for Toyota 4RUNNER
This section contains 9 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota 4RUNNER. Key components include: INSULATOR, DASH PANEL HEAT, INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.3.
