Toyota 4RUNNER — FLOOR INSULATOR

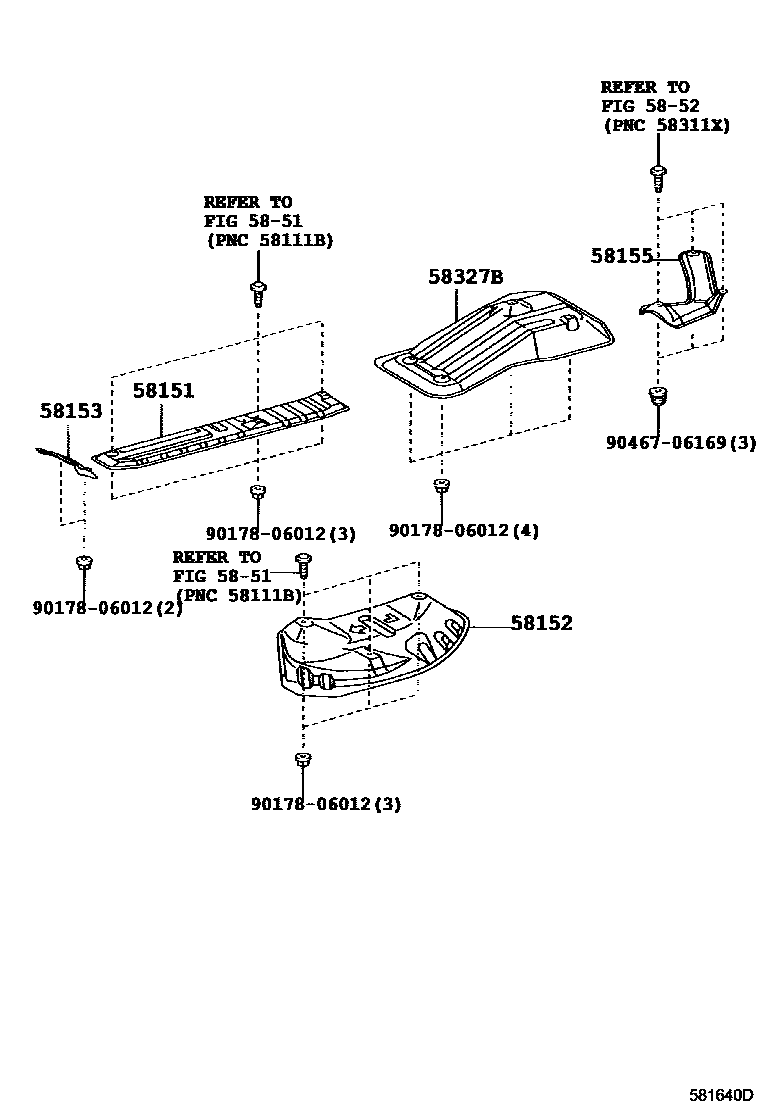

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-35120i200208-200908

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-35010i200211-200508

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-35130i200208-200508

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-35020i200208-200508

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-35050i200208-200508

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9017806012

main90178-06012

9046706169

main90467-06169

9 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota 4RUNNER

This section contains 9 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota 4RUNNER. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.3, INSULATOR, MAIN MUFFLER HEAT.
