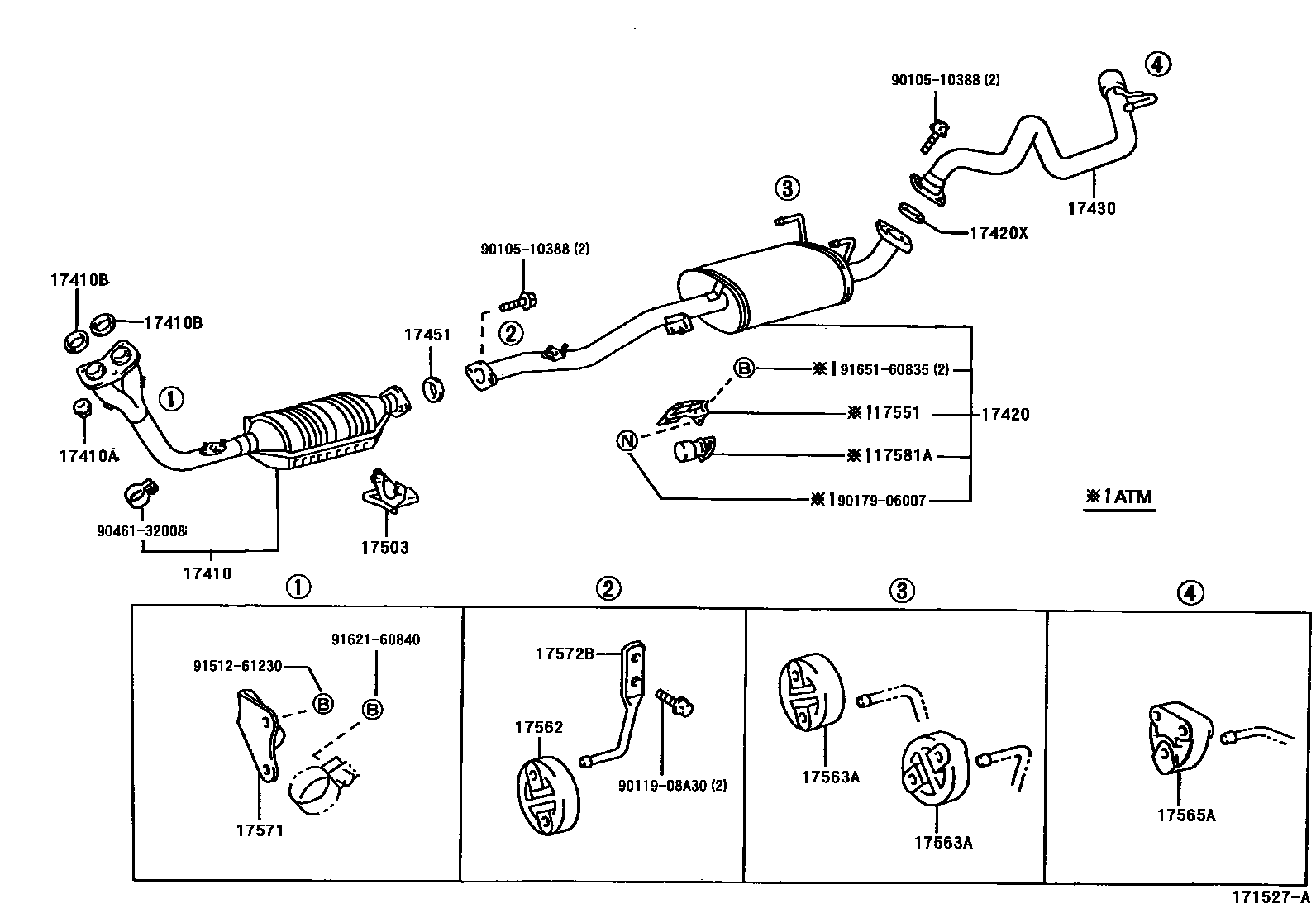

Toyota 4RUNNER — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
CALIFORNIA SPEC
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
CALIFORNIA SPEC
17451GASKET, EXHAUST PIPE
NO.1
CALIFORNIA SPEC,NO.2
17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
CALIFORNIA SPEC
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
CALIFORNIA SPEC
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17581ADAMPER, EXHAUST PIPE
9010510388
main90105-10388
9011908A30
main90119-08A30
9017906007
main90179-06007
9046132008
main90461-32008
9151261230
main91512-61230
9162160840
main91621-60840
9165160835
main91651-60835
22 parts on this diagram · 5 diagrams in section
EXHAUST PIPE for Toyota 4RUNNER
This section contains 31 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 4RUNNER. Key components include: RETAINER, EXHAUST PIPE, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER.
