Toyota 4RUNNER — ELECTRONIC FUEL INJECTION SYSTEM

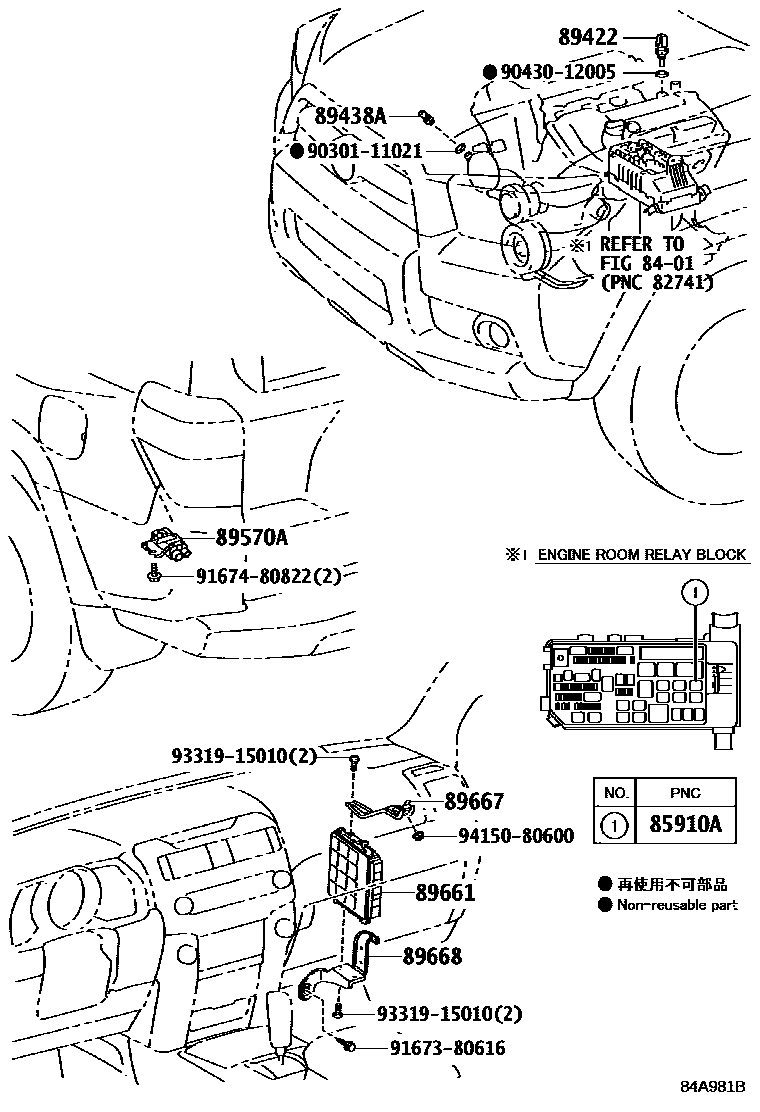

Parts diagram
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90987-02027i200908-201108
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i200908-201108
89438ASWITCH, POWER STEERING OIL PRESSURE
main89438-33010i200911-201108
main89448-34020i200908-201308
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
main89570-60170i200908-201108
89661COMPUTER, ENGINE CONTROL
main89661-35E90i201308-201408
DENSO
main89661-35F20i200908-200909
DENSO
main89661-35F21i200910-201007
DENSO
sub89661-35J40
main89661-35F30i200908-200909
DENSO
main89661-35F31i200910-201007
DENSO
sub89661-35J50
main89661-35G30i200911-200912
DENSO
main89661-35G31i200912-201007
DENSO
main89661-35J20i201008-201108
DENSO
main89661-35J30i201008-201108
DENSO
main89661-35J80i201110-201111
DENSO
main89661-35J81i201112-201208
DENSO
main89661-35J90i201110-201111
DENSO
main89661-35J91i201112-201208
DENSO
main89661-35L40i201308-201405
DENSO
main89661-35L41i201406-201408
DENSO
main89661-35L50i201808-201908
DENSO
main89661-35L60i201808-201908
DENSO
main89661-35L90i201908-202008
DENSO
main89661-35M00i201908-202008
DENSO
main89661-35M30supersedes 89661-35P20i202008-202108
DENSO
main89661-35M60i201408-201506
DENSO
main89661-35M61i201507-201508
DENSO
sub89661-35M62
main89661-35M70i201408-201506
DENSO
main89661-35M71i201507-201508
DENSO
sub89661-35M72
main89661-35M80supersedes 89661-35P30i202008-202108
DENSO
main89661-35N50i201508-201701
DENSO
main89661-35N51i201702-201808
DENSO
main89661-35N60i201508-201701
DENSO
main89661-35N61i201702-201808
DENSO
main89661-35P50i202208
main89661-35P60i202208
main89661-35G50supersedes 89661-35J40i201008-201110
DENSO,MEXICO SPEC
main89661-35G60supersedes 89661-35J50i201008-201110
DENSO,MEXICO SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
main89667-60270i200908-201108
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-60290i200908-201108
9030111021
main90301-11021
9043012005
main90430-12005
9167380616
main91673-80616
9167480822
main91674-80822
9331915010
main93319-15010
9415080600
main94150-80600

14 parts on this diagram · 3 diagrams in section
