Toyota 4RUNNER — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
O/S 0.125
11711BEARING, CRANKSHAFT
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 1,NO.2,3,4 REFER R/M
MARK 2,NO.2,3,4 REFER R/M
MARK 3,NO.2,3,4 REFER R/M
MARK 4,NO.2,3,4 REFER R/M
MARK 5,NO.2,3,4 REFER R/M
MARK1,NO.2,3,4 REFER R/M
MARK2,NO.2,3,4 REFER R/M
MARK3,NO.2,3,4 REFER R/M
MARK4,NO.2,3,4 REFER R/M
MARK5,NO.2,3,4 REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 3,NO.1,5 REFER R/M
MARK 4,NO.1,5 REFER R/M
MARK 5,NO.1,5 REFER R/M
MARK 6,NO.1,5 REFER R/M
MARK 7,NO.1,5 REFER R/M
MARK3,NO.1,5 REFER R/M
MARK4,NO.1,5 REFER R/M
MARK5,NO.1,5 REFER R/M
MARK6,NO.1,5 REFER R/M
MARK7,NO.1,5 REFER R/M
13011RING SET, PISTON
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK1
MARK2
MARK3
MARK4
MARK1
MARK2
MARK3
MARK4
MARK 1
MARK 2
MARK 3
MARK 4
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK6,REFER REPAIR MANUAL
MARK7,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2
15 parts on this diagram · 2 diagrams in section

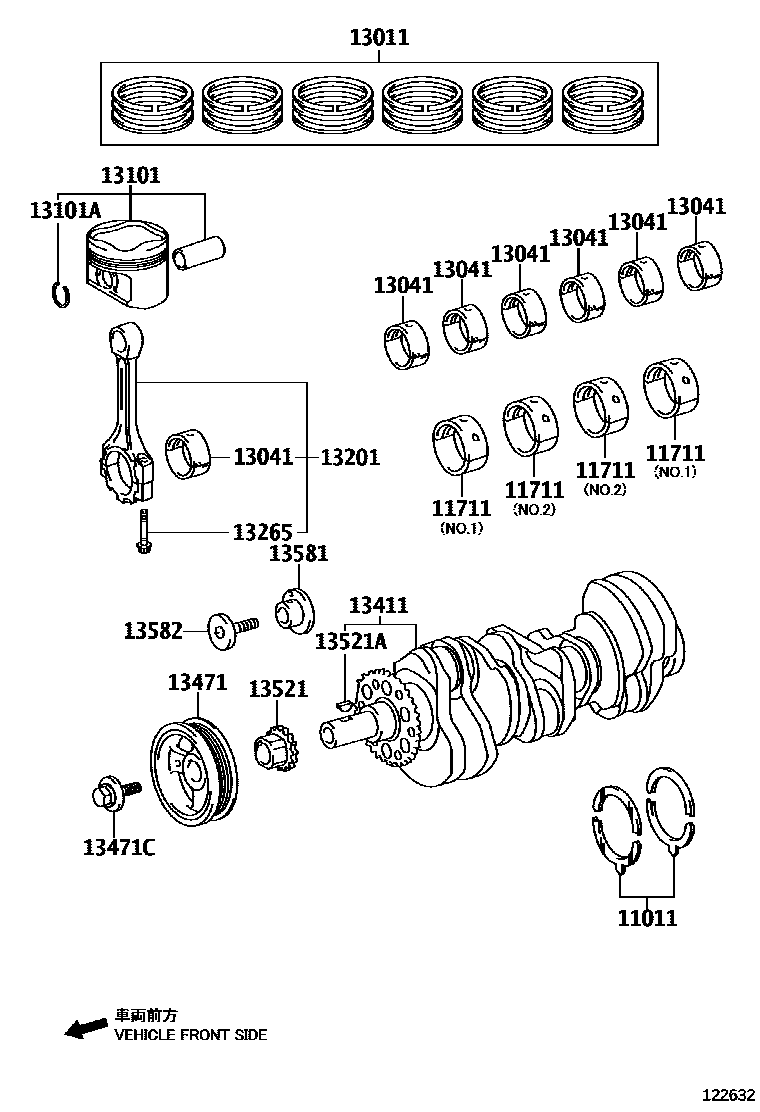

CRANKSHAFT & PISTON for Toyota 4RUNNER
This section contains 21 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota 4RUNNER. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
