Toyota 4RUNNER — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
MARK 6,NO.2
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
11991WASHER, BALANCESHAFT THRUST
11992WASHER, BALANCESHAFT THRUST, NO.2
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
1302CAMSHAFT & VALVE
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 4
MARK 5
MARK 6
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13621BALANCESHAFT, NO.1
13622BALANCESHAFT, NO.2
13632GEAR, BALANCESHAFT DRIVEN, NO.1
13635SPACER, BALANCESHAFT THRUST
9010508323
main90105-08323
9028103001
main90281-03001
9151380820
main91513-80820

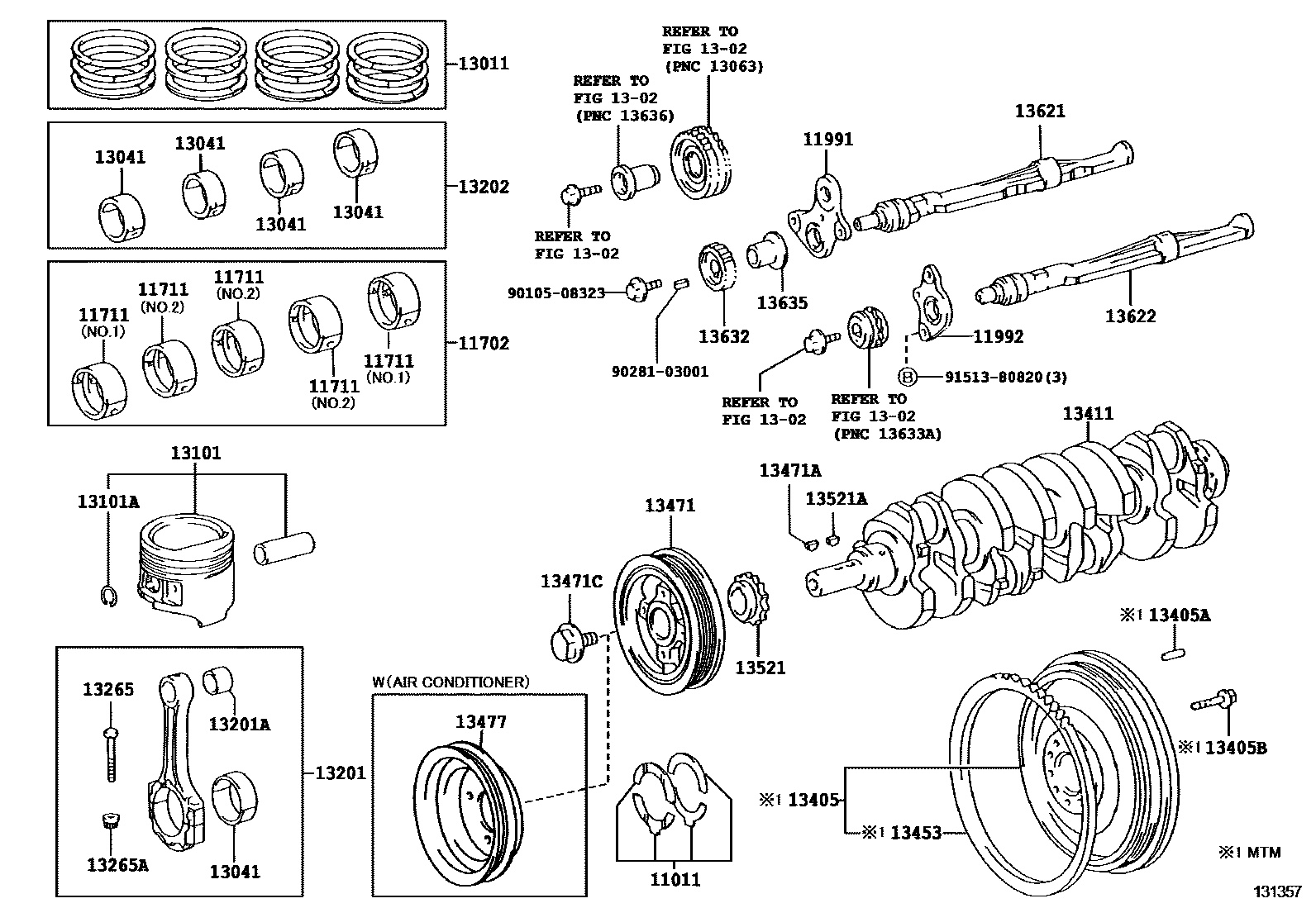

33 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota 4RUNNER
This section contains 35 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota 4RUNNER. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, BALANCESHAFT THRUST, WASHER, BALANCESHAFT THRUST, NO.2.
