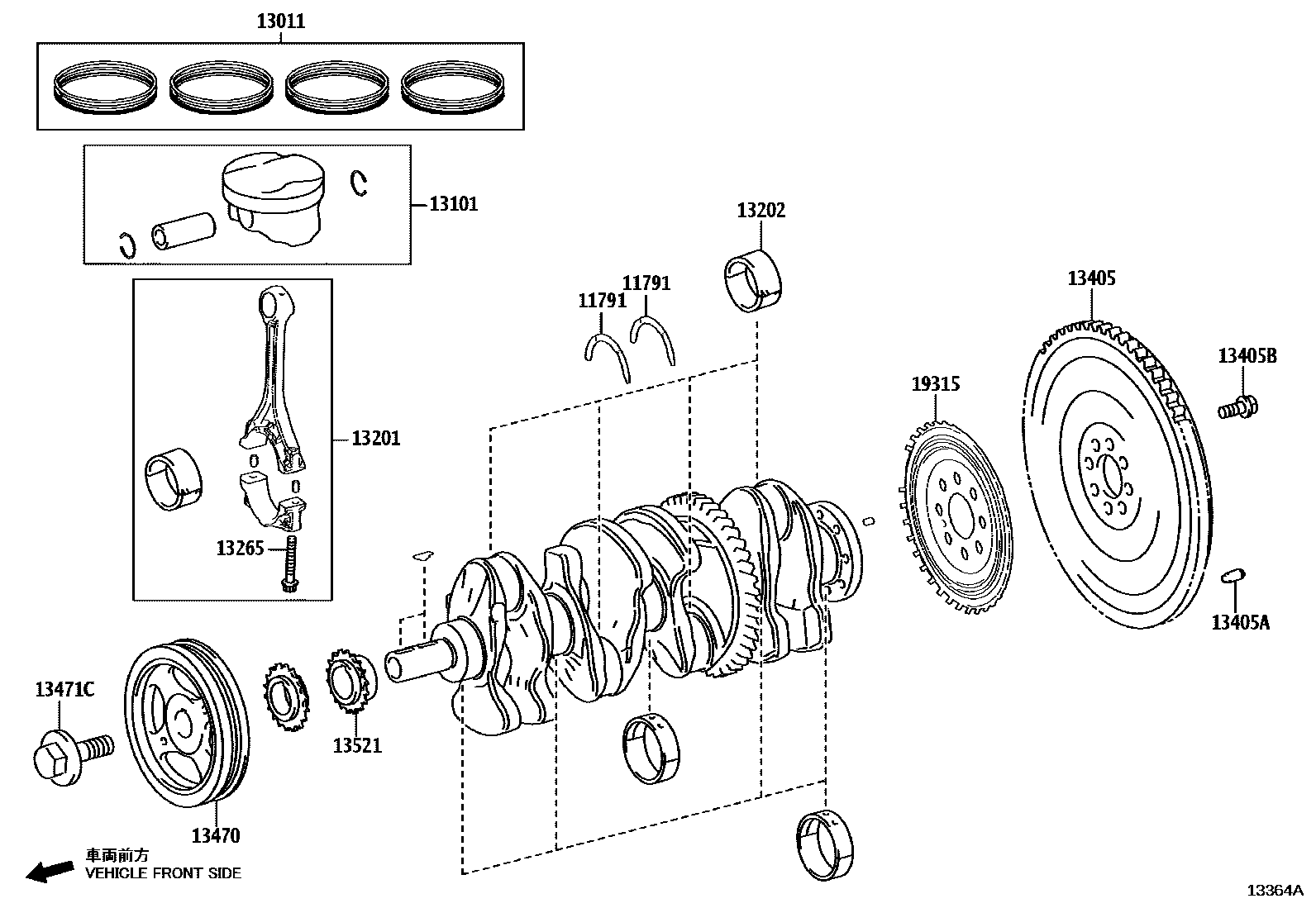

Toyota 4RUNNER — CRANKSHAFT & PISTON

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040i202412

STD

13011RING SET, PISTON

main13011-15140i202412

STD

13101PISTON SUB-ASSY, W/PIN

main13101-25050i202412

STD

13201ROD SUB-ASSY, CONNECTING

main13201-29875-A0i202412

MARK A,REFER REPAIR MANUAL

main13201-29875-B0i202412

MARK B,REFER REPAIR MANUAL

main13201-29875-C0i202412

MARK C,REFER REPAIR MANUAL

13202BEARING SET, CONNECTING ROD

main13041-25040-01i202412

MARK 1,REFER REPAIR MANUAL

main13041-25040-02i202412

MARK 2,REFER REPAIR MANUAL

main13041-25040-03i202412

MARK 3,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020i202412

13405FLYWHEEL SUB-ASSY

13405APIN, STRAIGHT(FOR FLYWHEEL)

13405BBOLT, FLYWHEEL SETTING

13470PULLEY ASSY, CRANKSHAFT

main13470-25030i202412

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202412

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25030i202412

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25031i202412

13 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota 4RUNNER

This section contains 13 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota 4RUNNER. Key components include: WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, PISTON SUB-ASSY, W/PIN, ROD SUB-ASSY, CONNECTING, BEARING SET, CONNECTING ROD.
